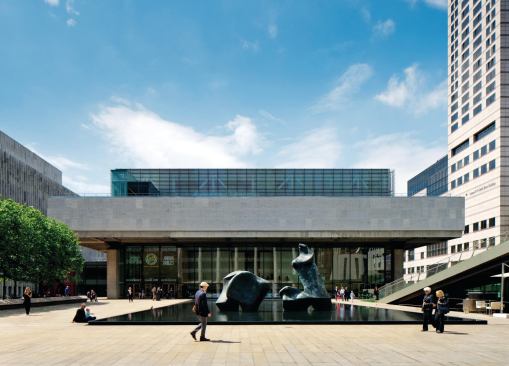

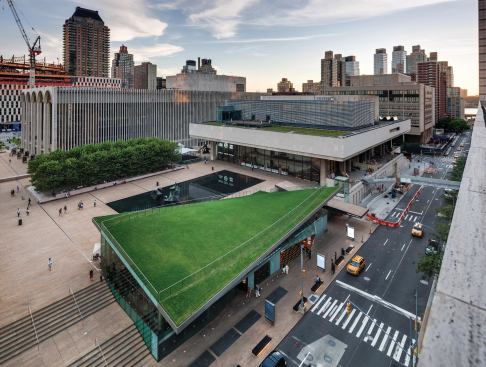

Though its campus houses many of New York’s most preeminent performing arts institutions, Lincoln Center felt it was still missing a small theater amenable to emerging playwrights and more intimate performances. But it was also missing something else: available space to build such a theater. The dense Manhattan neighborhood wouldn’t allow any give in the campus footprint, and though there are open plazas, these have become canonical urban areas in their own right. In the end, H3 Hardy Collaboration Architecture settled on an unlikely solution: perching the new 23,000-square-foot Claire Tow Theater, home to Lincoln Center Theater LCT3, atop the Eero Saarinen-designed Lincoln Center Theater.

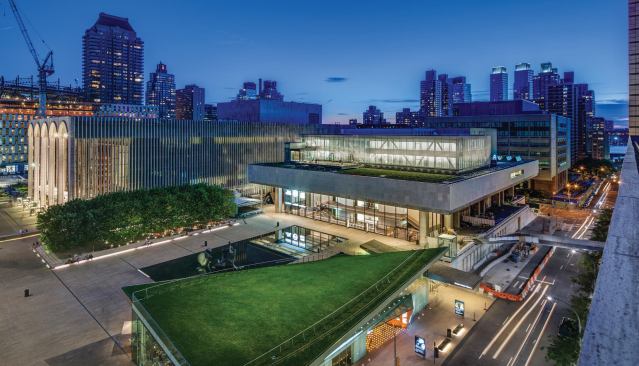

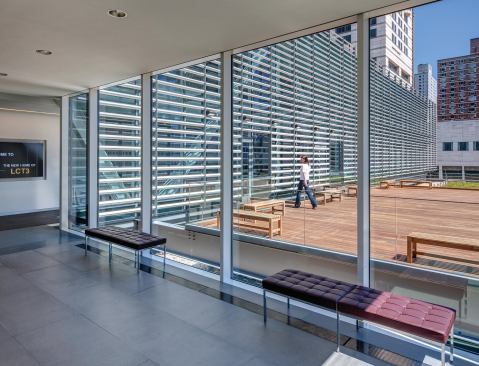

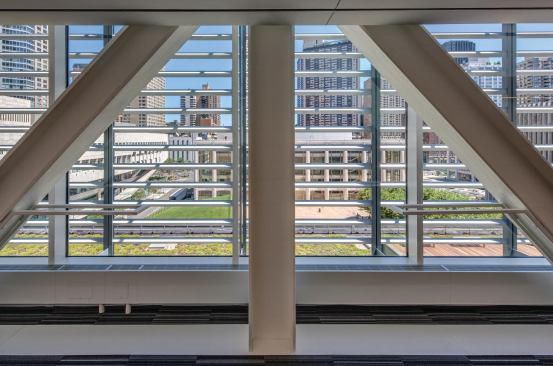

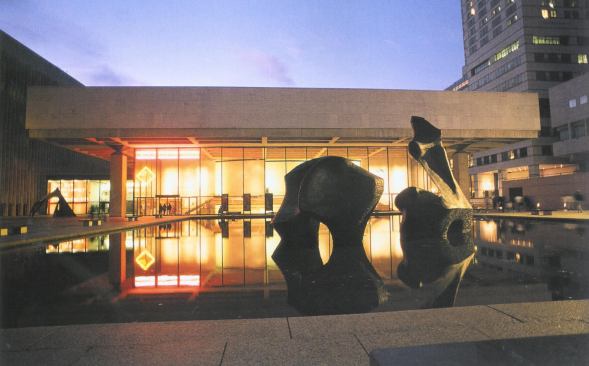

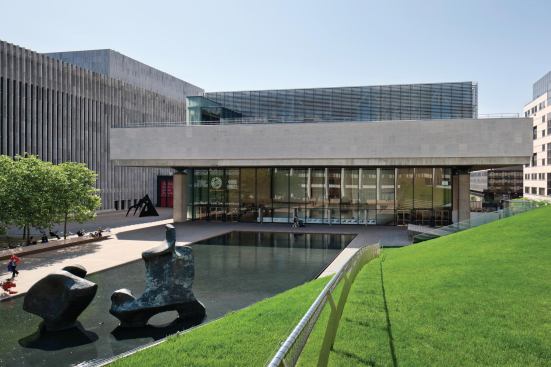

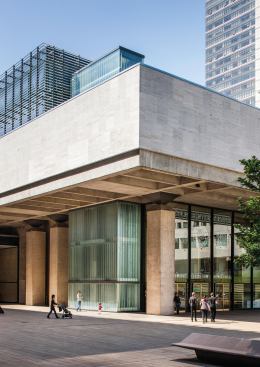

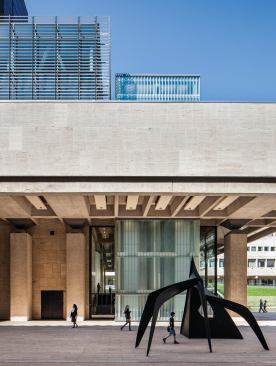

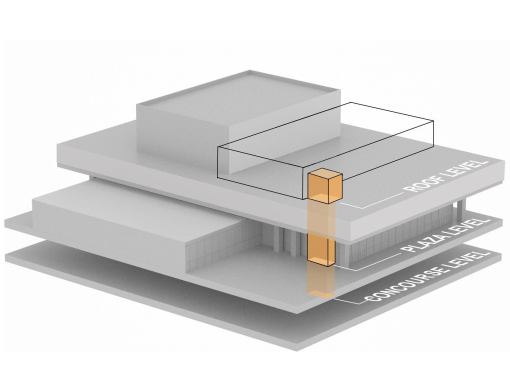

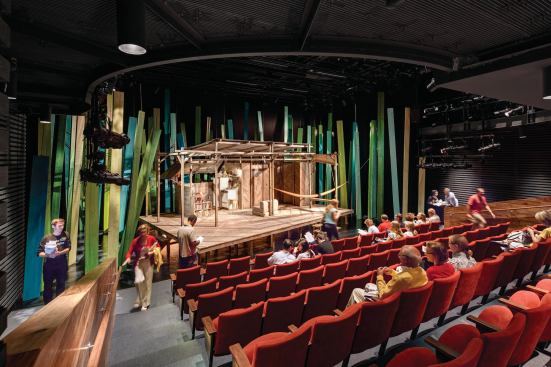

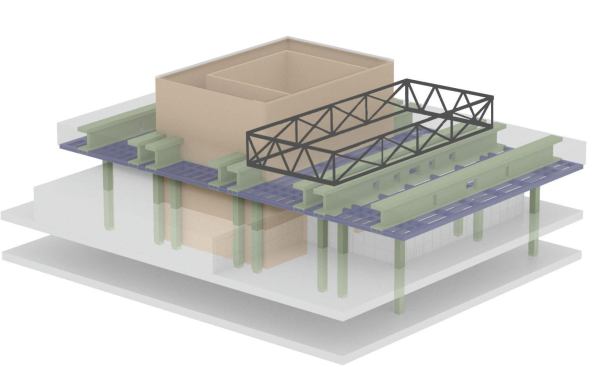

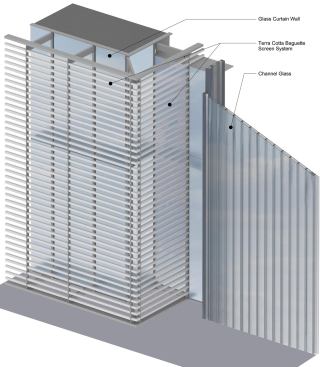

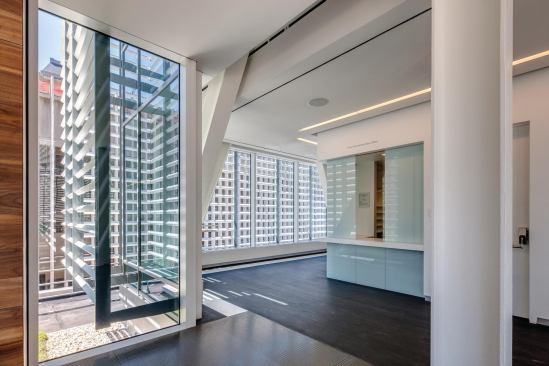

The rooftop addition rests on six concrete structural columns in the existing building, bridging the gaps between them with steel trusses. The architects punched through one of Saarinen’s concrete ceiling coffers to accommodate a channel-glass-enclosed elevator shaft, which connects the new 112-seat theater to the existing lobby. Aluminum screens prevent excessive heat gain and break up the addition’s mass. Clad in glass, the orthogonal building corresponds to Saarinen’s midcentury aesthetic beneath it. Now there are three main horizontal registers: Saarinen’s hulking concrete entablature, with the original glass curtainwall lobby directly underneath, and the new glass addition above.

”You’re messing with iconic architecture here, and the potential to go awry is huge. Yet they did a great job of being respectful of the existing building while still giving you a sense that they were trying to create something that had some identity.” —G. Martin Moeller Jr.

Project Credits Project  Lincoln Center Theater LCT3, New York
Client  Lincoln Center Theater
Architect  H3 Hardy Collaboration Architecture, New York—Ariel Fausto, AIA (partner); Hugh Hardy, FAIA (founding partner); Mercedes Armillas, AIA (associate); Sara Silvestri, Angela Chi, Margaret Sullivan (director of interiors); Lissa Evans
M/E/P/F Engineer  Arup
Structural Engineer  Severud Associates
Theater Consultant  Fisher Dachs
Acoustical Consultant  Jaffe Holden
Vertical Transportation  Van Deusen & Associates
Lighting Consultant  Fisher Marantz Stone
LEED Consultant  Ambrosino DePinto Schmieder
Code Consultant  William Vitacco Associates
Signage/Graphic Design  MTWTF
Contractor  Yorke Construction Corp.
Size  23,000 square feet
Cost  Withheld
Photographer  Francis Dzikowski/ESTO
