2015 AIA COTE Top 10: Hughes Warehouse

Overland Partners

Project Name

2015 AIA COTE Top 10: Hughes Warehouse


26,000 sq. feet

Construction Cost


View all (6) images

Project Description

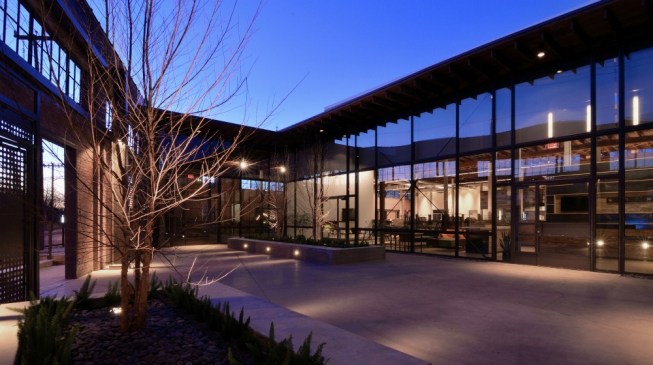

With the goals of supporting the revitalization efforts of downtown San Antonio and minimizing negative environmental impact, the design team transformed the 1917 plumbing warehouse into an innovative design studio. Interventions were left light in order to maximize flexibility for future users, and materials repurposed wherever possible. Sophisticated automated systems that optimize the building’s performance, combined with a 65kW solar panel array on an insulated cool roof, resulted in a 73% reduction in energy usage compared to the national average. A newly inserted courtyard provides ample daylighting to interior spaces and has become a hub of activity within the community.


A very successful example of a creative, low-cost adaptive reuse project that maintains the integrity and the character of the building. Introduction of contemporary structural, electrical, and mechanical systems was done in such a way as to not detract from the historic elements of the building. The outside spaces were integrated well with surrounding areas as well as the building itself. This proves that making use of a high percentage of reused and repurposed materials can be done creatively and affordably.


  • Estimated % of occupants using public transit/cycling/walking: 15%
  • Daylighting at levels that allow lights to be off before nightfall: 90%
  • Lighting power density (watts per square-foot): 0.85 watts/sf
  • Outdoor views: 98%
  • Reduction of regulated potable water: 34%
  • Total EUI (kBtu per square-foot per year): 44
  • Net EUI (kBtu per square-foot per year): 24
  • Percent Reduction from National Median EUI for Building Type: 73%
