Mixed Use Building Design - Brisbane

View all (6) images

Project Description

Main Objective:

To integrate mix used development consisting of residence, office, mall, and hotel above an existing rail yard.

Solutions Targeted:

A rail yard and mixed use building were integrated into a single facility, and detailed 3D models for complete visualization and approvals were developed.

Technology/Software Used

AutoCAD, Revit & 3ds Max

Challenges With Project:

1: The project involved development of facility on an existing rail yard spread across 210 million sq. ft
2: Design and 3D modeling for the facility to allow mixed used spaces for residence, office, mall, and hotel made it challenging
3: The integration with an existing rail yard facility made this project complex and one of its kinds.

How Filtered/Solved Problems?

1: The project commenced with a detailed survey and understanding of the available space and the rail yard.
2: Based on the requirement, we decided to use AutoCAD, Revit, and 3D Max software to design and develop 3D models and visualizations

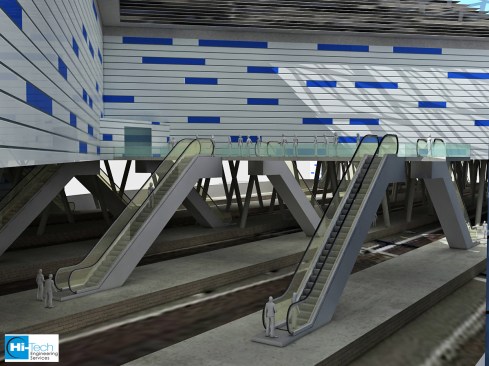

3: The space above the existing rail track was designed to include residential units, office space, mall and hotels.
4: Easy access points to these facilities were also designed and 3D models were developed with all the essential details.
5: The models were rendered for presentation and client approvals

Key Benefits:

1: The project was completed within the proposed timeline and the client requirement was duly fulfilled
2: Complete handover of well rendered 3D models and visualization made it easy to communicate design and get further approvals easily
3: The result was that process of taking the project onsite fastened up and further it was completed on time, helping our clients gain good will and recognition in the industry.
