Green Lantern

John Grable Architects

Shared By



  • John Grable FAIA

Project Status



4,000 sq. feet


Design Awards

View all (7) images

Project Description

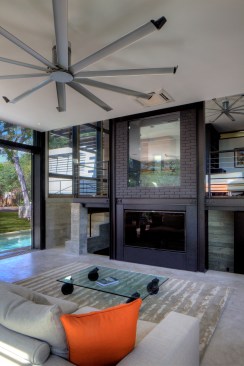

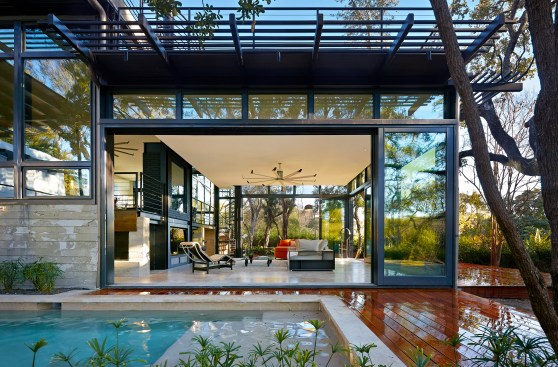

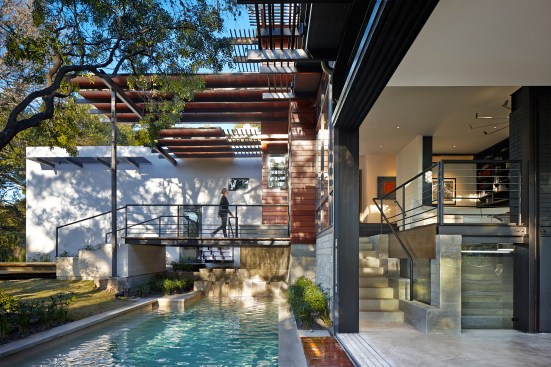

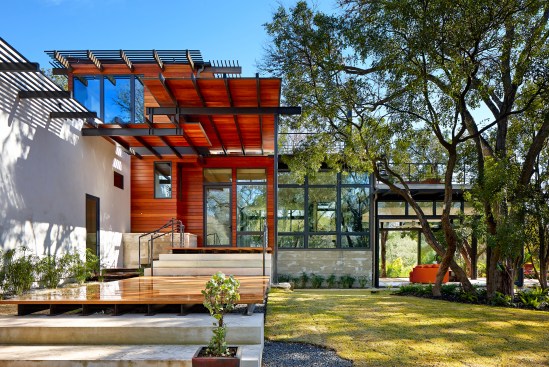

Sited in one of San Antonio’s oldest neighborhoods, this innovative single-family residence was built upon the architect and client's mutual respect for the environment. With the foundation of sustainability as a responsible and moral obligation, the challenge was to balance innovative technologies with time honored techniques while also integrating with the historic context of the neighborhood. While the project achieves 67% offset with photovoltaic panels, and incorporates a green roof, LED lighting, grey-water and rain-water harvesting, there was additional effort to reduce impact through careful planning and consideration of the site. New construction was designed to re-use the existing foundation as well as wood from the previous structure. Passive systems such as arbors and overhangs were implemented to reduce solar gain, while the entire project was sited to protect the number of existing heritage oaks throughout the site. At the ground floor level changes, stepping up over the pool along the main entry bridge and back down from the kitchen to the living area, provide a playful dialogue and transition between public spaces. Wall-to-wall sliding doors in the living area expand the room out into the pool and landscape. This rhythm is mirrored at the second floor as a series of folding doors in the 'party room' open to a large out-door terrace in the tree canopies, which again steps down to its own 'landscape' green roof garden with hot tub that takes in distance vistas of downtown. These forms not only provide elegant spaces, but also a stage for promotion of the core sustainability principles that produced it. Meeting and exceeding sustainability standards (Energy Star - Gold, NAHB Green Building - Emerald, Build SA Green - Level 3, and pending LEED – Platinum) acts as a catalyst to encourage sustainability and responsible design in future projects with-in San Antonio and beyond.
