Hair, Spikes, Cattail, and Turkeyfoot

Wei-Han Vivian Lee

Shared By

Xululabs

Client/Owner

Robert Grese -- David Michener

Consultants

  • Tarlton Long
  • Tarlton Long
  • Peter Yi
  • Peter Yi
  • Patrick Ethen
  • Rennie Jones
  • Tarlton Long
  • Nate Smalligan
  • Jon Swendris
  • Patrick Ethen
  • Rennie Jones
  • Tarlton Long
  • Nate Smalligan
  • Jon Swendris
  • Structural Engineer: SDI Structures
  • Custom Roof Thatch
  • Anya Sirota
  • Alex Watanabe

Project Status

Built

Type

Other

View all (5) images

Project Description

At its core, Wei-Han Vivian Lee’s research project Hair, Spikes, Cattail, and Turkeyfoot poses a radical question: Is the ubiquitous construction drawing still relevant in an age of digital fabrication? Constructing a digitally fabricated structure often requires a set of information that a drawing of a completed structure cannot convey, namely a carefully annotated kit of parts, where every fabricated piece is labeled in order of assembly, and every connection point identified. A lecturer in architecture at the University of Michigan’s A. Alfred Taubman College of Architecture and Urban Planning, Lee tested her hypothesis that design is transcending documentation by analyzing an unexpected architectural throwback that likely doesn’t have a standard CAD or BIM object in any database: thatch. And while thatch and digital fabrication may seem anachronistic, juror William Massie praised the overall analysis as “extending thoughts of materials and the history and science of building.”

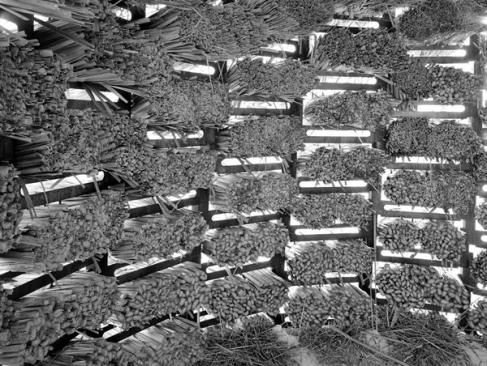

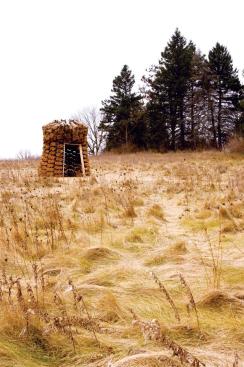

Lee consulted with William Cahill, one of the few master thatchers in the U.S., and researched the thatching vernaculars of Britain, Scandanavian countries, Laos, Indonesia, and Vietnam before digitally fabricating a series of combs—a tool used to thresh the grasses and reeds—from 14-gauge steel on a water-jet. These combs were used to create neat bundles of the fibers, and also became the steel support structure for the test structure: a pavilion formed entirely from thatch bundles. After the bundles were formed—from grasses such as cattail, phragmites, and turkeyfoot (the title of the project is, in fact, more literal than whimsical)—they were jammed down onto the spikes of each comb. The combs were then assembled into a wall structure and the ends trimmed to achieve the final result.

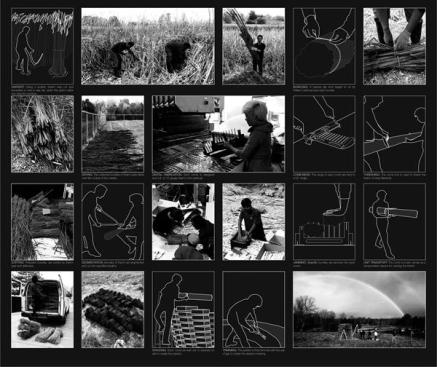

“What I really liked about this was this notion of digital fabrication and handcraft coming together,” juror Sylvia Smith says. The ultimate product may be the pavilion, but Lee’s study focused more on examining different forms of representation that could take the place of a traditional construction drawing for the project. She settled on three: axonometric documentation, a sequence of instructional drawings, and a catalog of parts. In short, a new form of representation for a new era of design. “Are we all going to run out and start building this way?” Smith asks. “No. But is it an interesting integration of old methods and new ways of thinking that could, in fact, overlap to other aspects of craft and building? I think it could.”
