New York Academy of Art

TRA studio Architecture PLLC

Location

111 Franklin St.
New York
10013

Client/Owner

NYAA
View all (24) images

Project Description

2001-ongoing, Art School Client: NYAA
2001-2: Loft Building Reconstruction following the 2001 fire
2002: Public Areas 14,000 SF 2008: Rooftop Addition 8,800 SFstudies

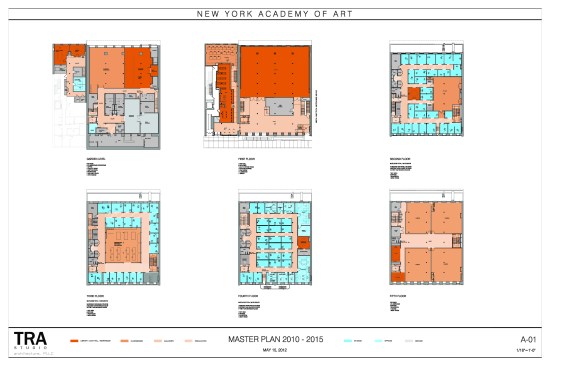

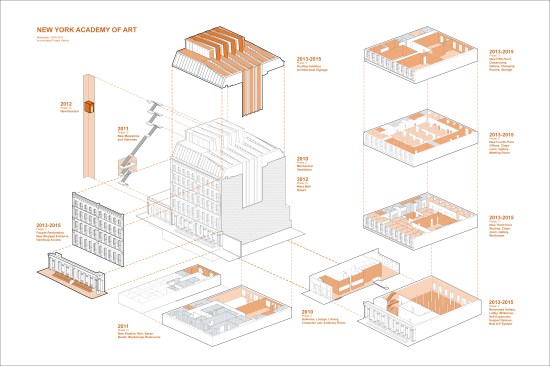

2010: Master Plan studies and Phasing

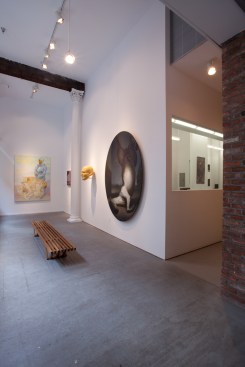

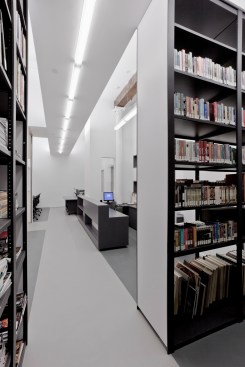

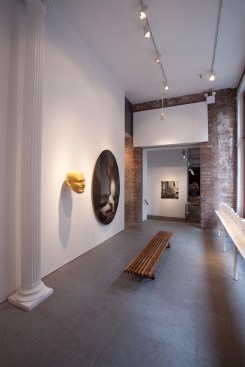

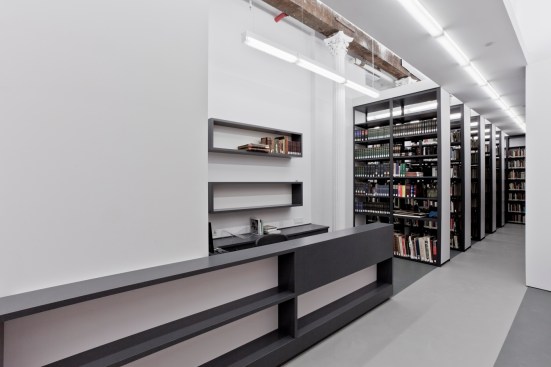

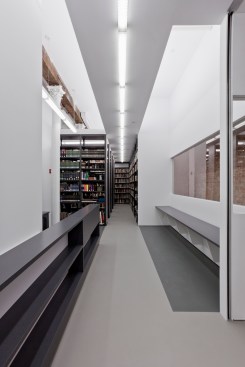

Phase 1: Library, Galleries and Fifth Floor renovation

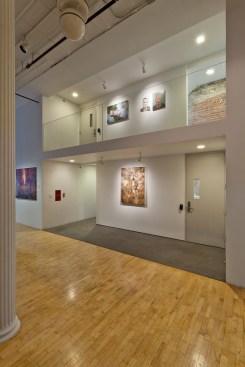

2011: Phase 2, vertical circulation Second Floor renovation , Garden Level renovation
2012: Phase 3, new elevator
2013: Phase 4, Electrical Upgrade, exterior restoration and new Storefront design
2014: Phase 5, H.C. circulation, new Egress Stair
2015: Phase 6, Façade Restoration, New Storefront, vertical circulation, mechanical systems
2016: Rooftop Addition

Photography: Luca Vignelli


The Academy has been housed in the landmarked building since 1990, without almost any modifications to the original Landmarked 42,000 square foot structure; in 2001 the school suffered a fire, which destroyed approximately 50% of the interior.

TRA was commissioned not only to restore the damaged building during a period of 16 weeks for a cost of $40.00 per SF, but also to rebuild the institution from a small trade school to its current status, which includes graduate studies, balancing practical needs with the complex issues connected to occupying a Landmarked Building.

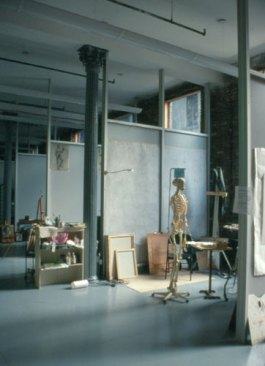

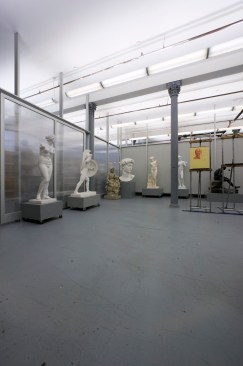

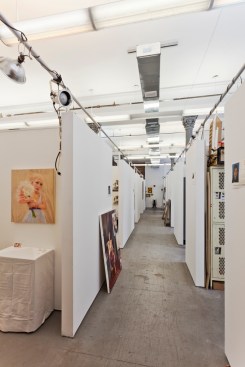

The 2001 renovation,layered new materials juxtaposed to the old structure, exposed by the baring fire: new translucent walls, constructed with storefront mullions and polycarbonate panels, at once defined and connected the painting studios, reminiscent of the 1800 French ateliers.

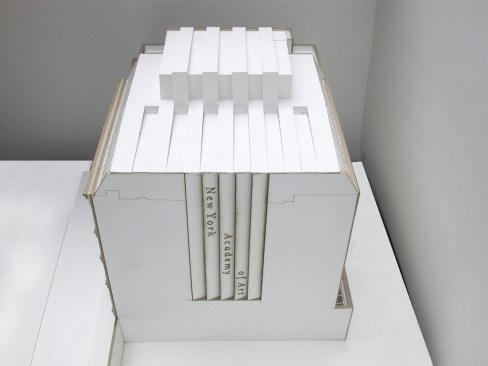

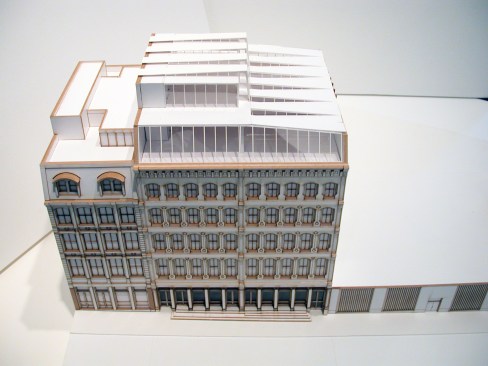

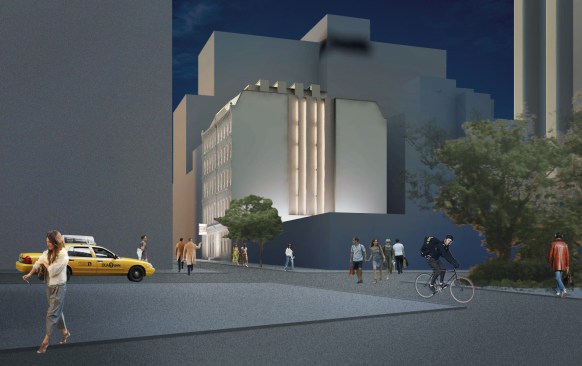

The Master Plan, which was initiated in 2010, devises a phased construction schedule that allows for the work to be done during the 12 summer weeks. The proposed 8,800 SF addition represents the last Phase of the Master Plan. The design questions the typical non-descript accretions presently getting built in Landmarked Districts, proposing instead a mansard roof, kind of a urban sculpture, composed of zinc ribbons, sliced and pleated to create North light diffusing skylights illuminating a 7,000 SF column free space The skylights, slightly visible from the public way, advertise the building’s use, morphing on the west façade into a studio window with integrated signage, claiming its prominence on Finn Square. All the extensive mechanical building systems are exposed on the rear façade, to maximize the usable space.

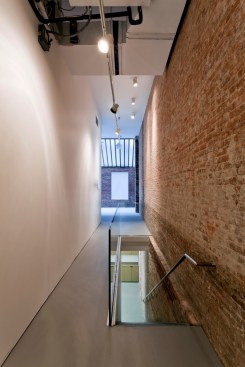

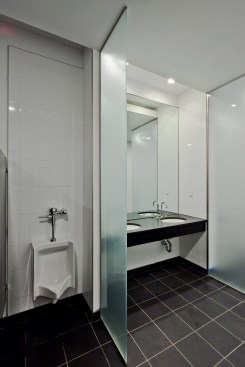

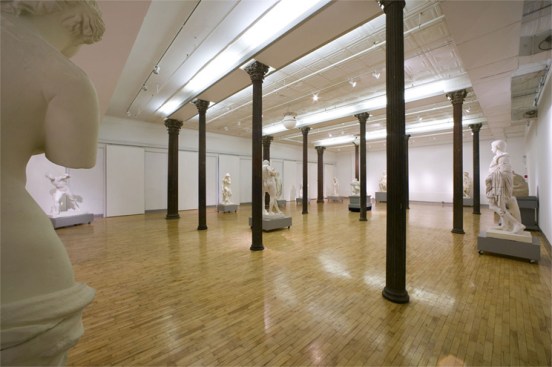

The phased interior renovation currently under-way, already demonstrated to have changed positively the way the students live in and perceive the Institution; the design of the interior spaces makes architecture part of the curriculum, every move and dollar is intended to help students create great art, the work becoming more enduring with the completion of every renovation phase. The industrial, authentic, responsible loft aesthetic and somewhat raw finishes, complements the art being produced, contrasting with and highlighting the often precious quality of the figurative paintings. The design responsibly takes full advantage of the historic surviving elements, which will keep getting better with the patina of use.

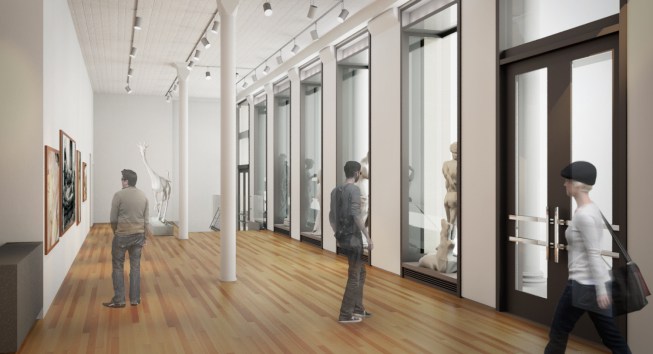

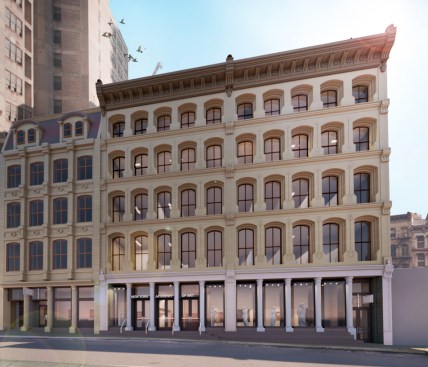

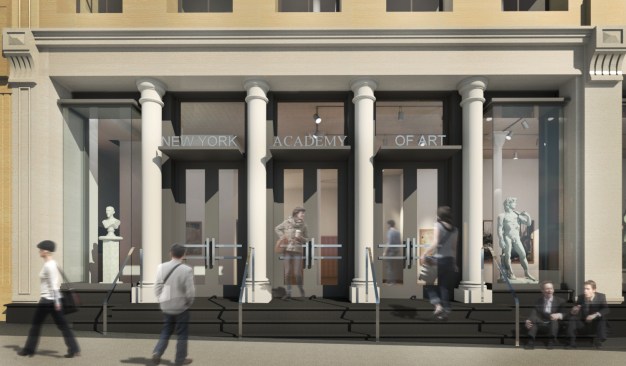

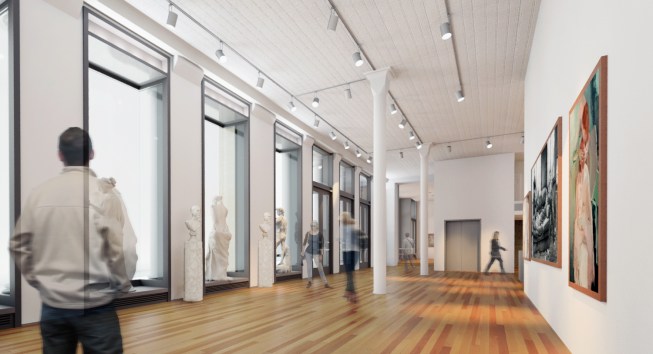

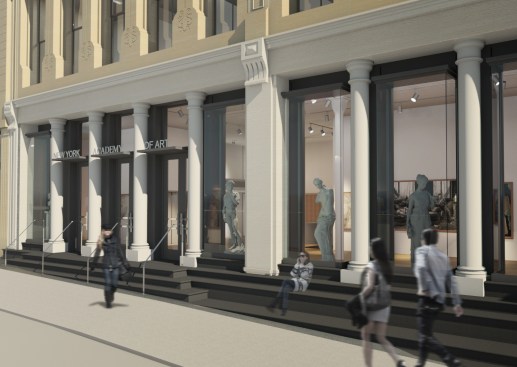

The new storefront threshold will act as the school quad, an active surface connecting the school to the neighborhood, where art is displayed and social interaction is encouraged, turning the short block into the “Academy Street” and connecting the Institution to the public realm; it is the physical expression of the university’s desire to to bridge between the insular art world and the community around it. The design recalls the projecting storefront seen often in the area, it also refers to Gio Ponti's furnished windows, where the inserted display elements extend the pattern of the design on the fourth wall, in this case extending the gallery and offering the art to the city.

The 75’ long new storefront infill intervention was recently unanimously approved by the Landmarks Preservation Commission after one presentation.

The subtle, but effective signage and the clarity of the storefront design announce the School to the community, proudly declaring its status as the last light manufacturing single occupant in Tribeca.
