SAP Americas Headquarters Expansion

FXFowle Architects

Shared By

Devan

Client/Owner

SAP Americas

Consultants

  • Interior Designer: FXFowle Architects
  • Mechanical Engineer: WSP Flack+Kurtz
  • Structural Engineer: Severud Associates
  • Electrical Engineer: WSP Flack+Kurtz
  • Civil Engineer: Advanced GeoServices Corp.
  • Advanced GeoServices Corp.
  • Geotechnical Engineer: Advanced GeoServices Corp.
  • Construction Manager: Gilbane Building Co.
  • Landscape Architect: Wallace Roberts & Todd
  • Roofscapes
  • Rainwater Recovery
  • Gipe Associates
  • Lighting Designer: S+S Lighting Design
  • Ex;it
  • AECOM

Project Status

Built

Size

210,000 sq. feet

Certifications and Designations

Type

Office

Keywords

Green Design

LEED

View all (13) images

Project Description

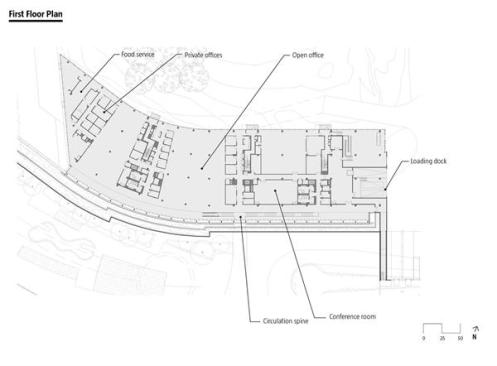

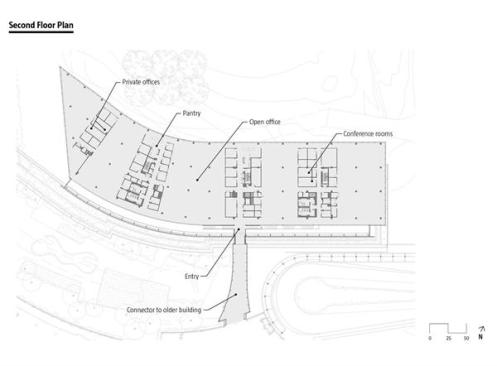

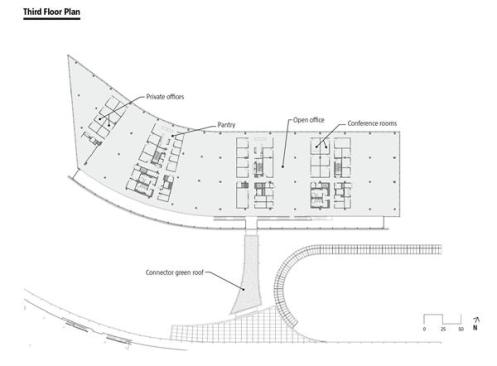

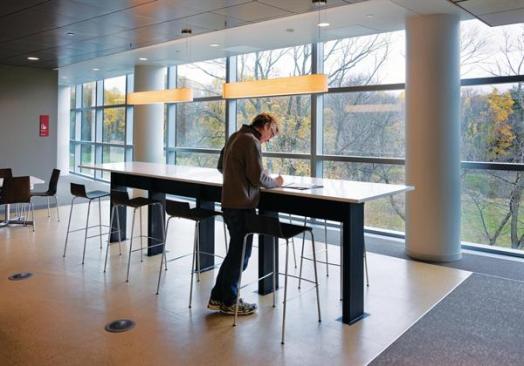

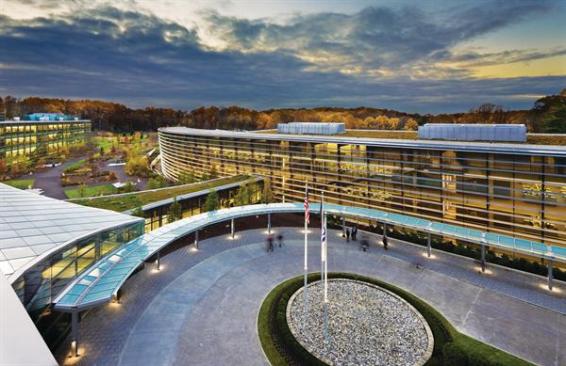

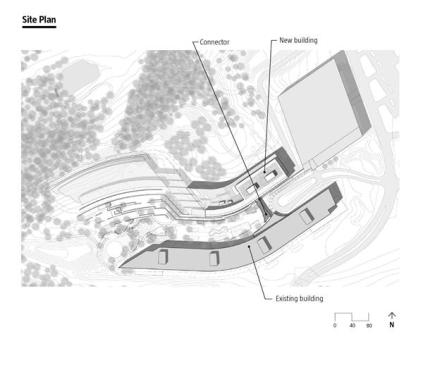

The serpentine curve of the new building was designed and sited to create a Wi-Fi–enabled courtyard, a work and break-out space for employees, while maximizing views from the open office floors. Separated into four floors, the bulk of the new building is open-plan office space. Conference rooms and private offices are organized into corridors across the width of the floor plates, to keep views unobstructed.

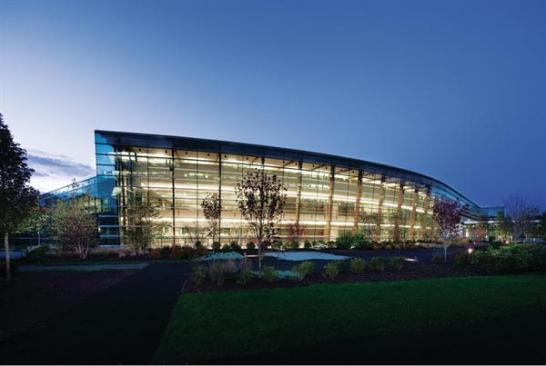

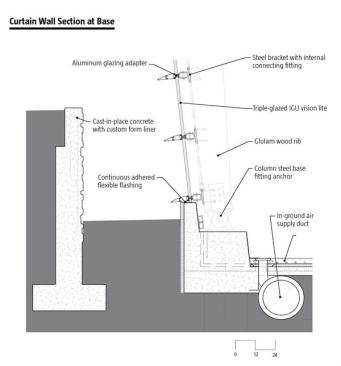

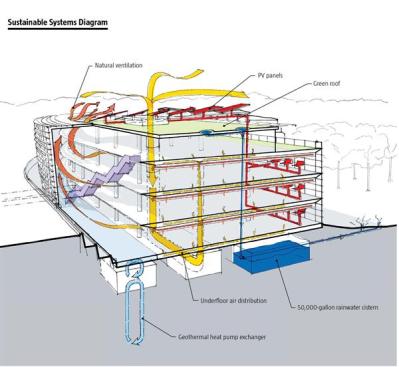

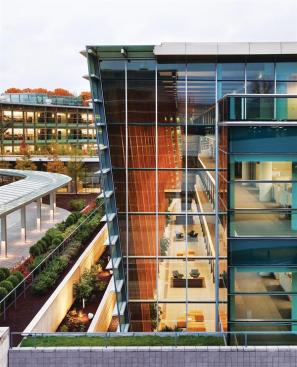

To minimize heat gain and control heat loss during the winter, the team wrapped the structure in a triple-glazed curtain-wall system. This intense insulation is paired with an HVAC system that includes underfloor air distribution, geothermal wells for heating, and ice chillers and evaporative cooling towers. Site plantings manage stormwater runoff, while green roofs help to limit the heat island effect and provide an accessible outdoor space. Sharing the roof plane is an array of solar panels.

These individual systems are all brought together by a sophisticated Building Management System (BMS). Energy usage is just over 1 kW per square foot, a reduction of 60 percent over the old building.
