REI Prototype Store

REI Prototype Store

A—Glass fiber–reinforced polymer (GFRP) panels Stromberg strombergarchitectural.com • Available in four finishes: coral, patina, primered, and weathered stone • Finishes have varying levels and depth of texture • High strength-to-weight ratio • Lighter weight meant less steel had to be used • GFRP can be molded into virtually any shape • Resistant to most chemicals • No loss of laminate properties after 30 years B—Storefront system Kawneer kawneer.com • Available with front, center, back, or multiplanes • Flushed glazed from interior or exterior • Available with 1¾- or 2-inch sightlines • Hurricane tested with shutter application C—Cor-Ten steel panels Kovach kovach.net • Fabricated by metal roofing and wall contractors • Custom panels can be cut to myriad shapes and sizes • Full service installation • Available warranties • Cor-Ten’s alloys form a stable rust pattern through weathering and require no paint or additional coatings

REI Prototype Store

Roof BIPV cell panels Solar Design solardesign.com • Panels made up of a matrix of individual BIPV cells • Produce energy that is siphoned to a transformer and converter for use in the building • Provides roughly 2 percent of the store’s energy

REI Prototype Store

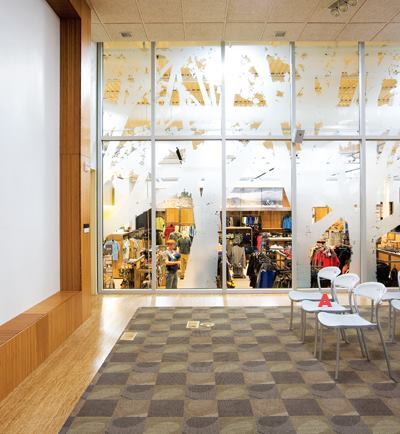

Custom patterned glass Husker Glass and DecoTherm huskerglass.com decotherm.net • Plate glass provided by Husker • Clear tint • Custom surface design created by DecoTherm • Digital image created of abstract trees • Image then re-created in ceramic frit through patented process • No sandblasting or acid etching required

REI Prototype Store

Imperia track lighting system Amerlux amerlux.com • Fixtures use a T6 ceramic metal halide source for optimal energy efficiency • Die-cast aluminum construction • Precise optical alignment of lamp, reflector, and lens improve consistency between fixtures • Locking vertical adjustment between zero and 90 degrees

REI Prototype Store

BioView 2 carpet in chocolate creme Milliken millikencarpet.com • Tufted textured loop pile • Available in 50-cm or 1-meter tiles with PVC-free cushioned back • Uses 6,6 nylon fibers • Finish weight is 20 ounces per square yard • Built-in antimicrobial protection • StainSmart stain resistance • 0.17-inch pile height

REI Prototype Store

Wood flooring Gammapar gammapar.com • Acrylic hardwood flooring system • Available as laminated, prefinished, or engineered wood • Rated for high-traffic applications • Bamboo and composite and exotic wood collections are available in a variety of finishes • Features the warmth and even sound of traditional hardwood, but more durable for commercial applications

REI Prototype Store

Pamplona side chair Arper http://www.arper.com/ • Stackable side chair • Made from recyclable materials • Also available with arms, as a stool, and on casters • Collection includes coordinating tables • Standard polypropylene seat and back can be upholstered for indoor use • Suitable for outdoor use • Anodized aluminum frame • Available in several colors

REI Prototype Store

A—Bamboo plywood case goods Smith & Fong Plyboo plyboo.com • Plywood is made from 100 percent bamboo material • Unfinished, but compatible with industrial finishes • Custom sizes available up to 13 feet in length • Can be treated to meet Class 1 fire standards • Edge and flat grains available with the edge grain appearing in ¼-inch strips and the face in ¾-inch strips B—Envirokote paint Kwal kwalpaint.com • Interior flat latex paint • Available in 72 custommixed colors • Covers 400 square feet per gallon • Zero VOCs and very low odor • Green Seal compliant • Dries dust-free in one hour • Soap-and-water cleanup • Line also includes zero-VOC primer/sealer and zero-VOC eggshell enamel C—Marmorette linoleum flooring Armstrong armstrong.com • More than 50 colors • Color-coordinated solid weld rods available • FloorScore certified for low-VOC emissions • NaturCote coating reduces wear • Available in two gauges

REI Prototype Store

Daylighting skylight Solatube S21 solatube.com • Skylight system with reflectors that capture and direct sunlight indoors to reduce the need for artificial lighting • Light fixtures on dimming system depending on daylight levels • Available with a series of diffusers to reduce glare and modulate light quality for different interiors • Also available are a series of self-mounted flashings that can be integrated into existing roofing system to prevent leaks
