Project Details
- Project Name
- Belaroia
- Location
- France
- Project Types
- Mixed-Use
- Project Scope
- New Construction
- Size
- 10,764 sq. feet
- Year Completed
- 2019
- Shared by
- Madeleine D'Angelo
- Project Status
- Built
Project Description
FROM THE ARCHITECTS:
The challenges of the project
This is an important project for the City of Montpellier and its development agency, the SERM, as it holds a strategic position between the city’s hyper-centre, characterised by its escutcheon form in plan, and new surrounding districts that have appeared in succession.
Its particular position is in fact on the prow of the Nouveau Saint-Roch development zone, and the fi rst of the zone’s projects to be completed. To characterise this zone, the city highlighted the importance of a diversity of programmes, which our team interpreted as a hybrid project, interweaving two hotels, apartments, a seminar venue and an independent restaurant.

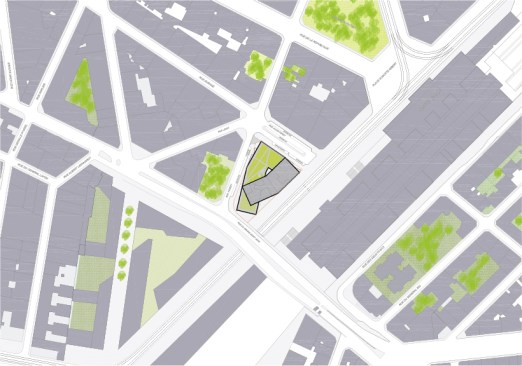

The site – the context

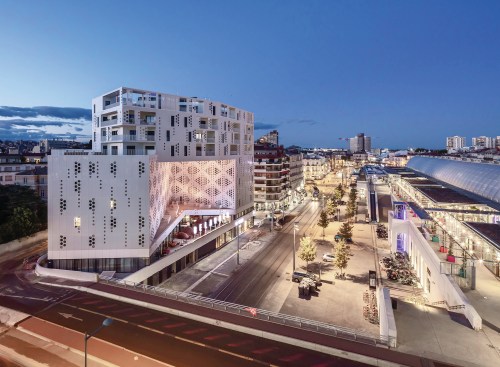

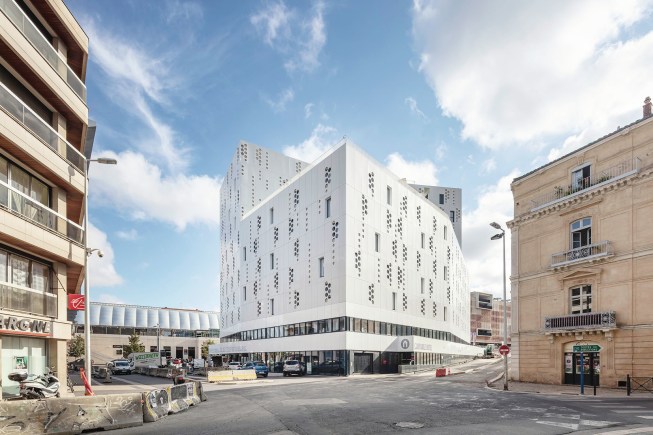

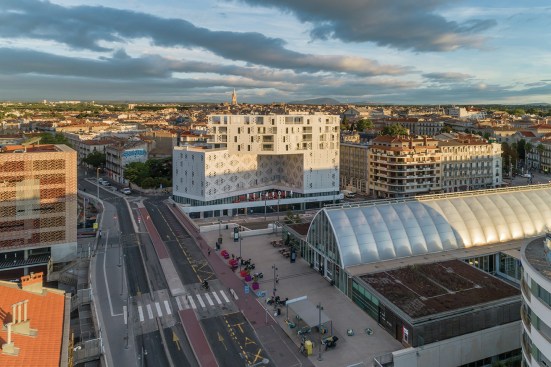

The site is right opposite Montpellier’s central Gare Saint Roch train station, and the BELAROIA is the fi rst building you see as you come out of the station. The north terraces of the station overlook the project.
The massing

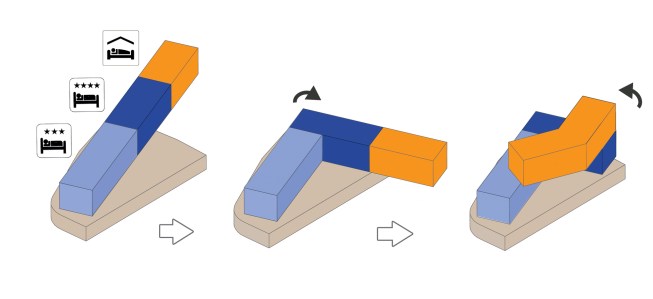

The small site led us to stack up the functions, literally one on top of another, sharing some of the vertical circulation between different elements of the programme.

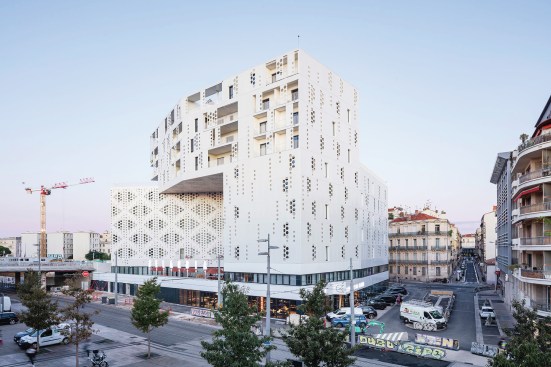

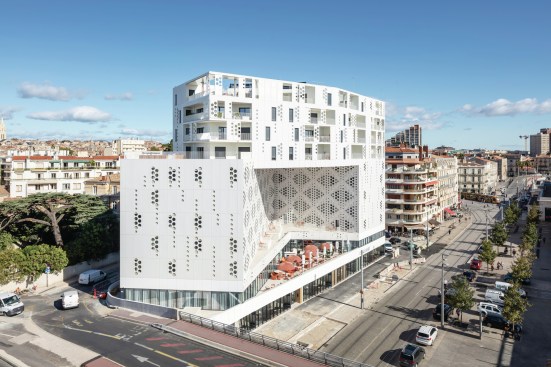

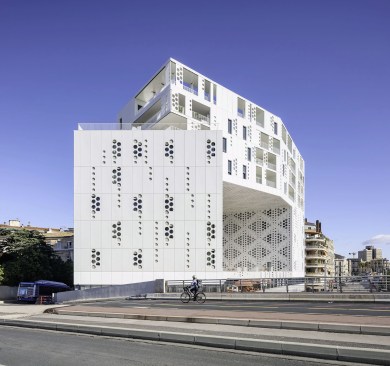

The complex triangular form of the site led us to design a continuous volume with a succession of folds that unfurl along the north and the east facades, topped by a wide bridge along the south facade.

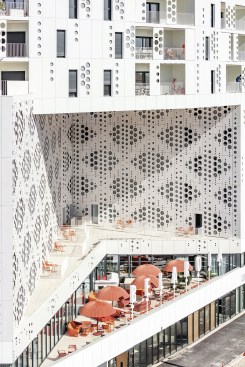

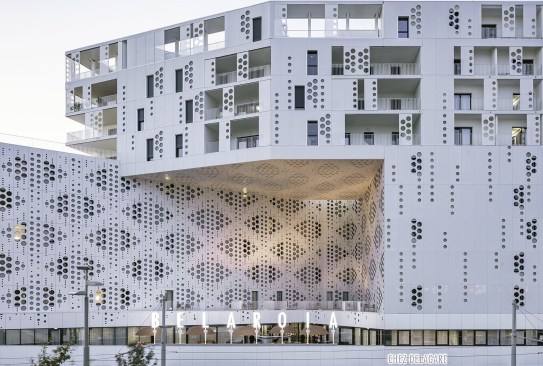

At the middle of these folds is set a large hollow volume, orientated to the south and sheltered by the bridge that overhangs it. This magnificent conch shelllike form is an extra element, a meeting place for all the users of the different programmes, a café with a terrace looking out over the train station, which faces us.
A project designed around public space, and hollows rather than solids
In this particular project, the almost immediate aim was to create, to orchestrate, and to provide an external space for all the building’s users, from each of the different programmes but also from the entire neighbourhood: a neighbourhood characterised by the station and its thoroughfare, by the nearby historic city centre, and by the future programmes that will gradually appear within the development zone.
Providing this majestic communal space was a way of giving a magnificent ‘shared’ urban room in the very first building constructed in the development zone, a way of positioning the level of engagement and ambition of this new neighbourhood.
Stretching and densifying a city does not happen without a trade-off, without providing, in compensation for space taken, new public places that constitute landmarks, places for meeting and amenities.
Our urban living room is the first room of the project, a great unifying void around which all our solids will wrap, sitting on a podium that houses all the entrances, it is then surrounded by the two hotels and overlooked by the apartments which crown it. It becomes a sort of urban stage, framed by animated wings (the hotel rooms): it is the starting point and the heart of the whole project.
Around this void the solids are successively distributed on the site, successively defining the various surfaces of the void, including that of its roof, to create a half-indoor, half-outdoor space protected from the wind and rain, an open stage fanning out on the southern side, addressing the midday sun and the station.

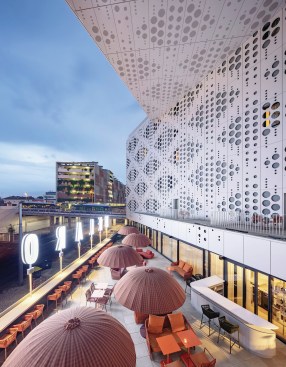

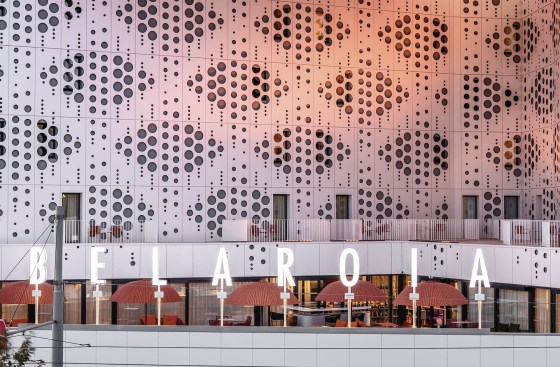

The programme is both simple and rich: the breakfast room of the 4-star hotel, a place for eating at any time of day and a fantastic bar in the evening, lit up by the giant luminous letters of BELAROIA.
Around our ‘urban stage’, layers of different programmes

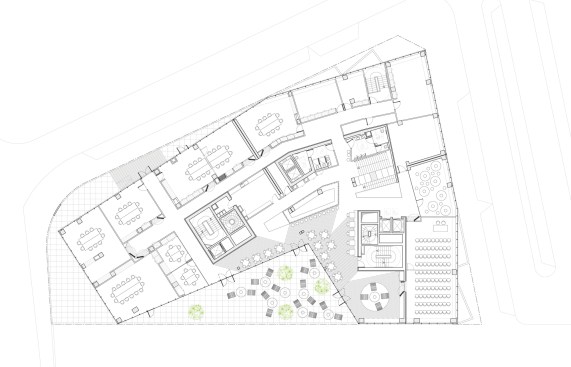

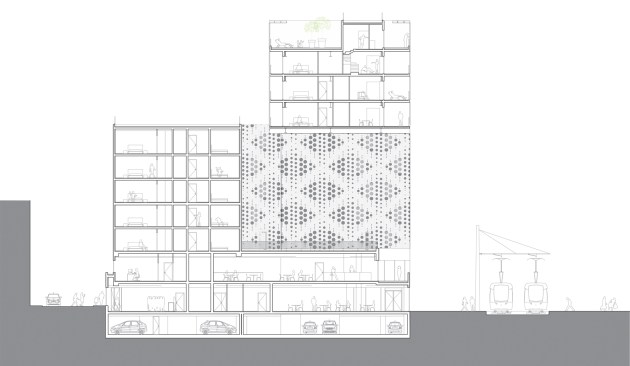

The ground floor of the project tucks in along the retaining wall of the Pont de Sète road bridge and aligns with the two other edges of the site. It is consequently partially below ground and enclosed along the bridge side, more generously open on the east and south sides, where it incorporates the entrances for each programme. Consequently, from north to south are the following: - On the north, the Campanile Hotel entrance and the entrance to the underground car park, - On the east, the Golden Tulip Hotel entrance and one of the two entrances to the restaurant, - On the south, the main entrance to the restaurant and the entrance to the apartments.
The facades:

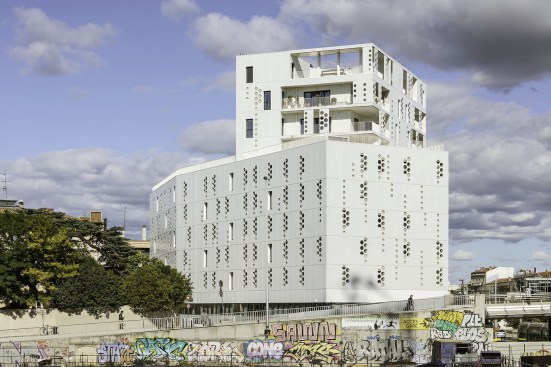

With its great folds, the project does not have main front and back facades, but instead is a continuous loop of successive programmes, all enveloped in the same bright and homogenous material.
High environmental ambitions, among other factors, led us to prioritise very compact volumes, reinforced by an envelope largely insulated on the outside.

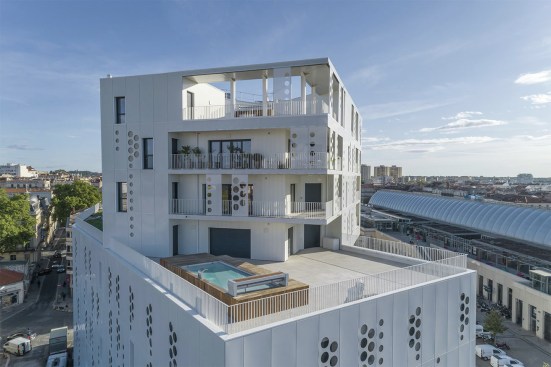

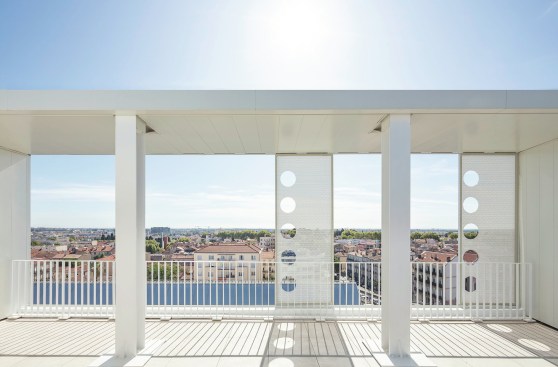

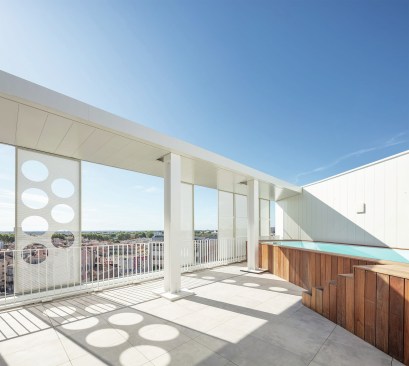

All the volumes are covered with a single cladding system to ensure simplicity and unity of form. On the upper section, this cladding is partly made up of sliding panels to shelter the apartments’ terraces, and then on the top floor the generous open-air terraces of the split-level apartments.
A profoundly environmental project:
The programmatic diversity and the particular density of the project helped us to design economically: everything contributed to minimising resources. Density and compactness helped us to minimise facade surfaces and their energy requirements. But even more important was the possibility of mutualising some of the services, the vertical fire escapes, some of the plant rooms, and the underground car park.
The project has been cleverly assembled to minimise space required for services in order to provide more communal areas and functions for public use. In a fair exchange, it could be said to take surface area from the host city but to give some back as shared space. Even if these spaces remain ‘private’, as they are maintained by the management company, they are open and welcoming to the general public, reinforcing the attraction of the project and opening it to a broader public: not only the users of the building’s different programmes, but also all Montpelliérains.

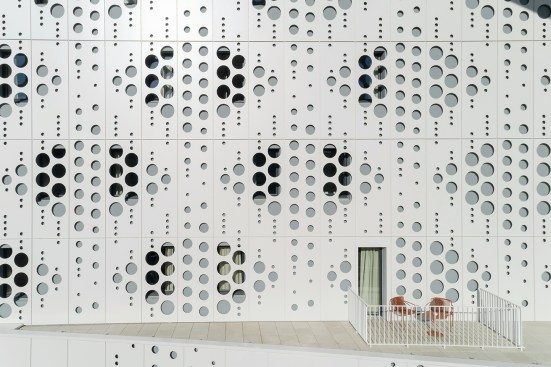

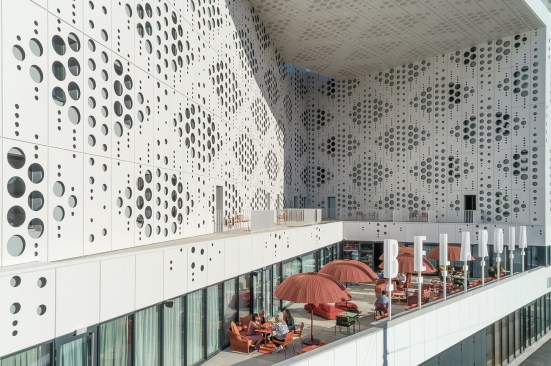

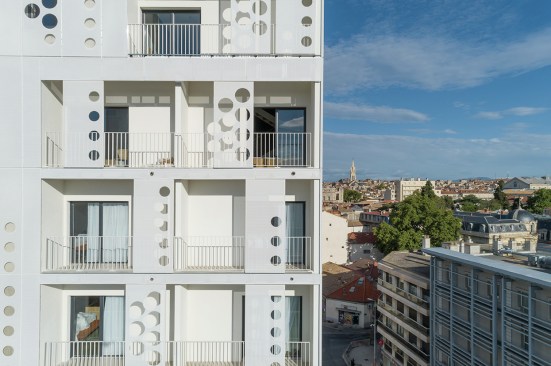

The facades were designed so as to envelope the whole project in a homogenous cladding system, generally covering external insulation. This cladding was designed to cater for the different functions that it covers: opaque or micro-perforated over the solid areas, perforated with large round openings in front of the windows of the hotel rooms, and finally sliding to shelter the north- and south-side terraces of the apartments, providing privacy and shade. Their white colour minimises heat absorption.
The large urban living room is orientated to give onto the station and its own terrace, but also due south to benefit from the sun: the shape of a conch shell, it faces the sun at midday, which is sufficiently low in the winter to benefit from its warmth, and sufficiently high in the summer to avoid over-exposure.

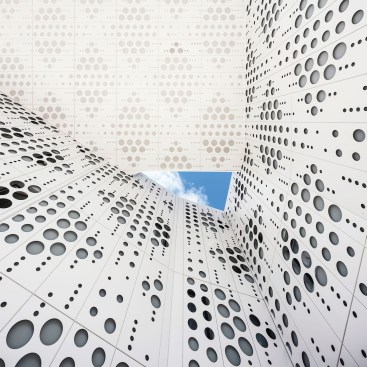

In the summer months, the terrace is more protected from the overhead sun, with parasols and vegetation to come. At the back of the urban living room, the last fold formed by the volume of apartments leaves a welcome opening to the sky, allowing for natural cross-ventilation to help cool the space.
The structure of the bridge building
The building is divided into three structurally distinct parts: two concrete-structure blocks (housing the hotels) topped with a mixed concrete–steel structure forming a three-dimensional truss (housing the apartments on four levels).
The construction of this element involved assembling 80 tonnes of steel structure 21 metres above the ground. A steel structure spanning 25m, 16.3m wide and 9m high. This bridge forms a module slightly folded at its centre, into which are grafted the apartments and terraces.
A design that forbade the use of a classic truss, which would not have resisted in torsion. The bridge building is therefore made up of 72 interlocking joists, of which 15 cross the apartments obliquely.
Within the apartments, the future inhabitants have been able to choose whether or not to leave the large diagonals of the Warren trusses visible. Those that have been left visible create a ‘loft’ feel in the apartments.
On the north-east wall, the elements were fixed by a spherical bearing to an insert embedded into the reinforced concrete floor slab. On the south-west wall, the lower joists slot into a 72cm deep recess, with a possible dilatation of up to 10cm. A solution that meets the seismic regulations of this zone classified «low-risk».
Perpendicular displacement is blocked by bearings that can slide vertically, allowing for longitudinal dilatation.
The lower edge of the three-dimensional truss is dressed in steel tray, flocked on their underside and the covered in micro-perforated cladding with the same pattern as the facade. The upper floors are braced by a cross of St Andrew. Overall stability is reinforced by the concrete slab of the roof.
Project Credits:
Project: Beloria
Architects: Manuelle Gautrand Architecture
Investor and Hotel Operator: Valtole France
Developer: Linkcity
Executive Architects: Arteba
Facade Engineer: CEEF
Structural Engineer: Verdier
Services: Barbanel
Acoustics: LASA
Interior Design of Hotels: Atelier Archange
General Contractor: Bouygues Batimeent Sud-Est
