Project Details
- Project Name
- Wuhan Greenland Center
- Client/Owner
- Greenland Group
- Project Types
- Multifamily
- Size
- 300,000 sq. meters
- Shared by
-
editor,hanley wood, llc
- Project Status
- On the Boards/In Progress
Project Description
FROM THE ARCHITECTS:

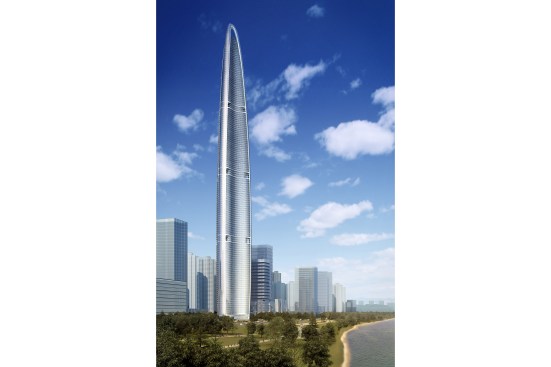

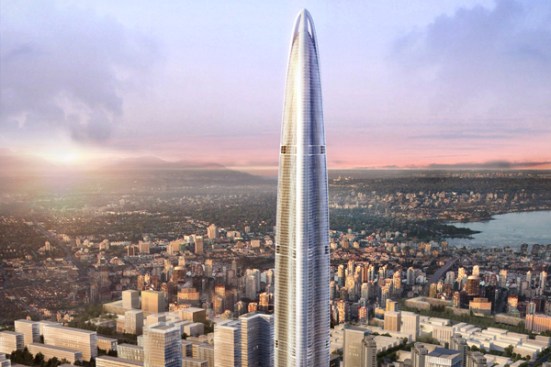

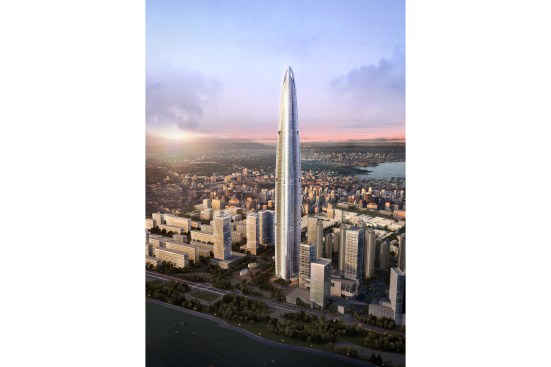

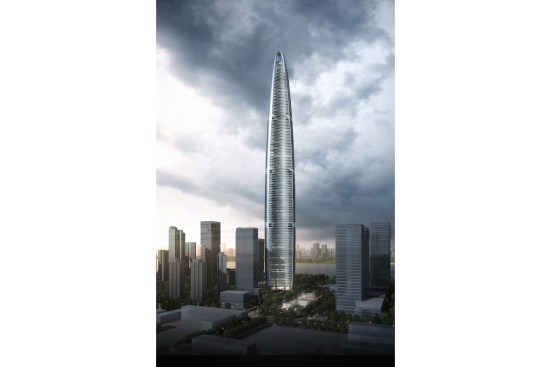

The Wuhan Greenland Center, at 606 meters (1,988 feet), will likely be China’s third-tallest building, and the fourth tallest in the world, when completed in 2016.

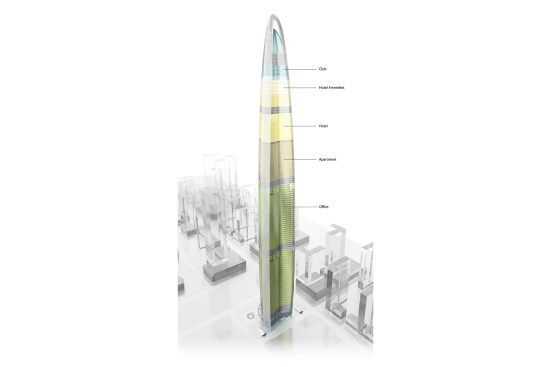

The 119-level tower in Wuhan, China will be comprised of about 300,000 square meters of floor area, including about 200,000 square meters of offices, 50,000 square meters of luxury apartments and condominiums, a 45,000-square-meter five-star hotel, and a 5,000-square-meter, 27-meter-tall private club with spectacular views at the tower’s penthouse level.

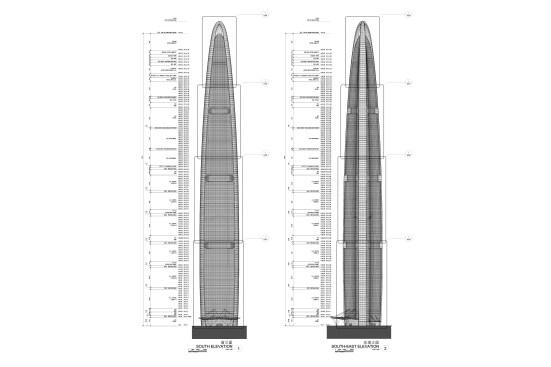

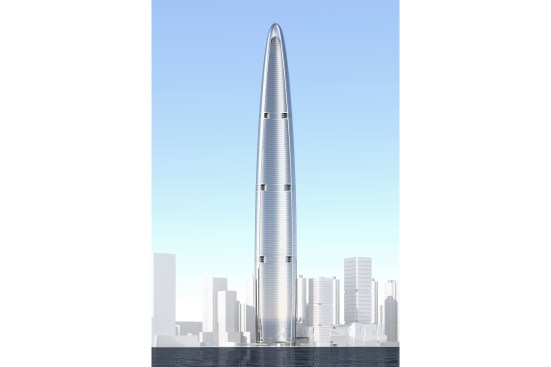

Wuhan Greenland Center features a uniquely streamlined form that combines three key shaping concepts—a tapered body, softly rounded corners and a domed top—to reduce wind resistance and vortex action that builds up around supertall towers. The building’s extremely efficient aerodynamic performance will allow it to minimize the amount of structural material (and the associated embodied carbon) needed for construction.

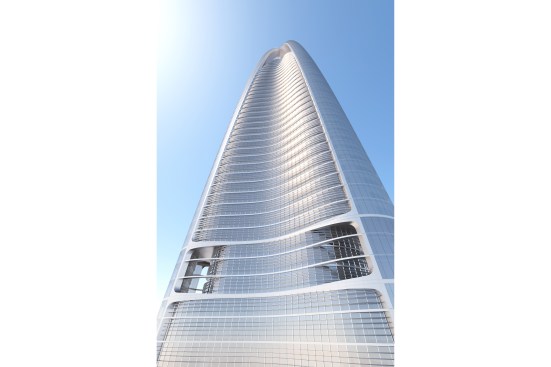

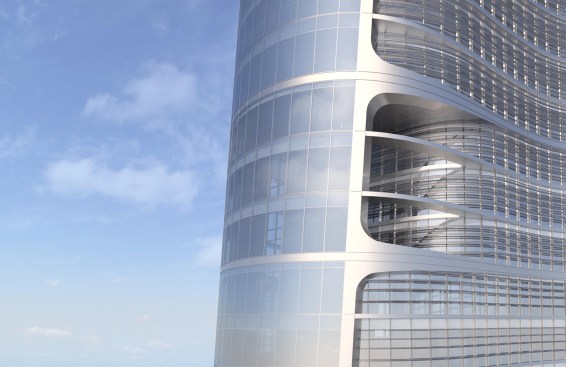

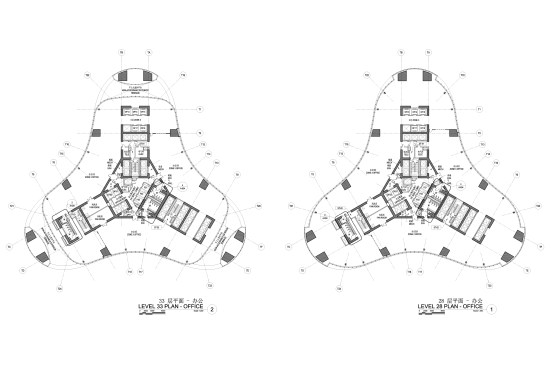

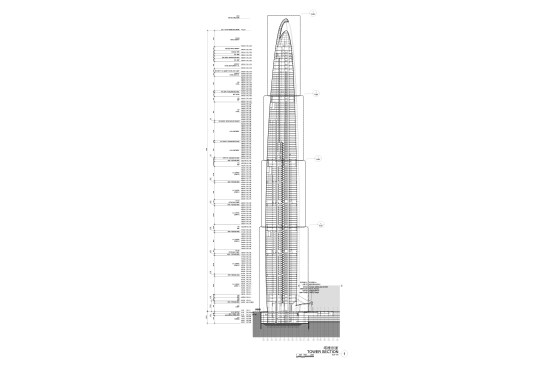

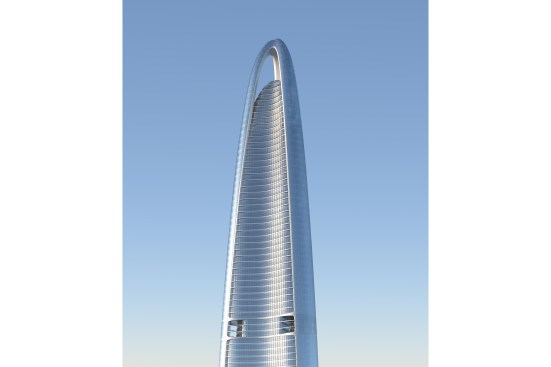

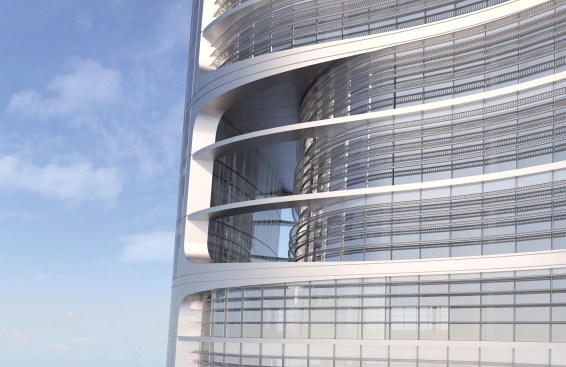

The tower’s three corners rise from its tripod-shaped base and taper upward, culminating in an arched tip above the dome at the top. The corners will be of smooth curved glass, contrasting markedly with the more textured curtain wall cladding the body of the tower. The curtain wall will enclose a composite concrete core with steel framing. Apertures in the curtain wall at regular intervals will assist in venting wind pressure against the tower; the apertures will also house window-washing systems and air intake and exhaust systems on mechanical floors.
Other planned sustainable elements of the project include:
- Energy recovery using an enthalpy wheel integrated into the ventilation system; this captures energy from the building’s exhaust systems and uses it to pre-heat or pre-cool air entering the building.
- A greywater recovery system, which takes waste water from the hotel laundry, sinks and showers and reuses it in the building’s evaporative cooling system.
- A high-efficiency lighting system, which uses low-energy-consuming ballasts and lamps to reduce required power consumption.A daylight-responsive control system, which automatically turns off electric lights when sufficient daylight is available.
- Water-conserving low-flow plumbing fixtures, which reduce the total amount of potable water required as well as the associated pumping energy.

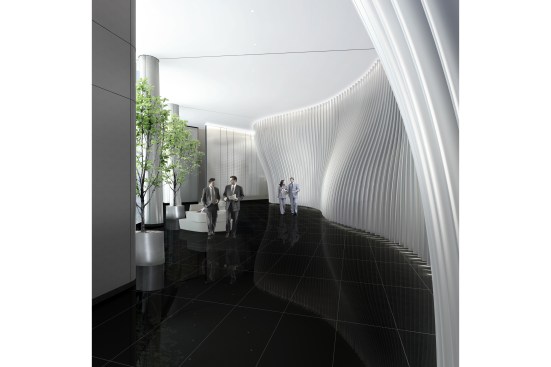

In addition, the AS+GG Interiors studio is developing the tower’s fluidly sculpted interior public spaces, many of which reflect the tower’s exterior silhouette. The conical silhouette is visibly echoed in the entrances to the primary elevator bank from the main lobby, as well as in the shapes of the elevator cabs and other public spaces. The lobbies and other amenity spaces within the tower also feature sweeping, fluid lines and a neutral blue-gray palette that recalls the reflective glass of the exterior wall. The transparency of the ground-floor lobby wall allows views from inside toward the entry canopy drop-off areas, establishing a seamless relationship between the interior and exterior.
For more information, please visit http://smithgill.com/work/wuhan_greenland_center/
