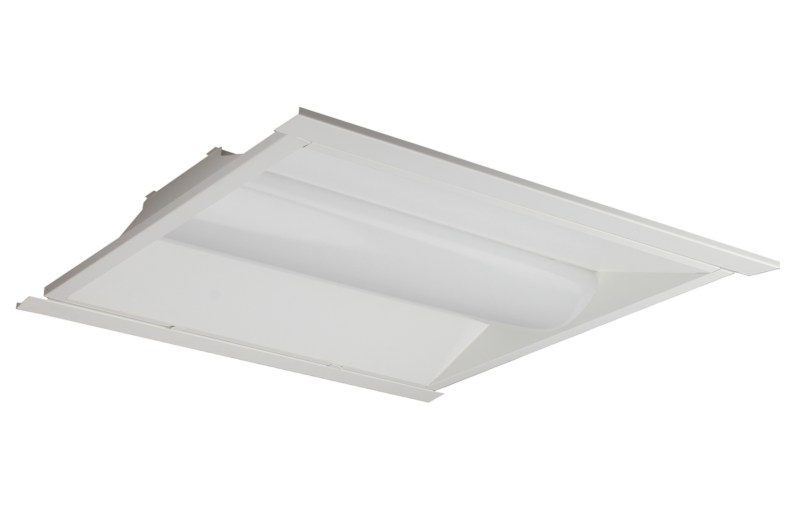

LED Human-Centric Troffer Retrofit Kit, ABBLighting
For use in patient rooms, this 2' by 2' troffer mimics the sun’s shift throughout the day and can be tuned from 2700K to 6500K at a CRI of 80-plus thanks to a wireless adjustable driver. The fixture can be controlled using a remote or a mobile app. Dimmable, it comes in 18W, 25W, and 32W models and delivers up to 3,250 lumens. abblighting.com
Panel Lyte, Acolyte LED
This ceiling-mounted LED luminaire emits light from all four sides and fits in standard, dropped-ceiling configurations. The fixture can be specified in a 2' by 2' 45W model and a 2' by 4' 65W model, both of which have an 0.43" profile and seamless corner joints to avoid light leaks. It is available in 3000K, 4000K, and 5000K with a CRI of 80. Dimmable, it takes 100V/277V AC power and includes an onboard driver. acolyteled.com
Rubik, Acuity Brands Mark Architectural Lighting
Three-, five-, and nine-grid recessed luminaires have been reconceived as a kit of parts to create new illumination patterns without modifying the ceiling. The versatile system is available in static or tunable 3000K, 3500K, 4000K, and 5000K, with a CRI of 80-plus or 90-plus, as well as grayscale and color accent options. Dimmable, it delivers up to 440 lumens per cell. The 20-gauge, cold-rolled steel housing has integral T-bar clips. marklighting.com
Olessence, Acuity Brands Peerless
This linear suspension fixture combines LEDs and OLEDs. A direct-view downlight OLED panel in a 6.5" by 0.5" profile works with LED indirect optics to produce 3000K, 3500K, and 4000K in a CRI of 80-plus and 90-plus. The fixture has an efficacy of up to 88 lumens per watt, and optional dual-circuit switching. It can be specified in 4', 6', and 8' sections in white, black, and painted aluminum. peerlesslighting.com
Stellina, Amerlux
This 1.5"-thick commercial retail luminaire features a one-piece extruded aluminum housing with die-formed galvanized and cold-rolled steel components and can be mounted as a direct pendant, indirect pendant, or low-bay fixture. It is offered in 2700K, 3000K, 3500K, and 4000K, takes 120V/277V, and is zero-to-10V, Lutron Hi-lume, and DALI dimmable. The luminaire can be specified with integrated sensors and controls for digital photometric, dimming, and motion sensing. amerlux.com
Clara, Architectural Lighting Works
A hollow, lensed body distinguishes this LED luminaire, which comes in linear suspended (shown) and wall sconce models. It is available in 3000K and 4000K at a CRI of 80-plus and delivers more than 89 lumens per watt. Clear and frosted acrylic lenses feature thin white lines to direct and diffuse light. Remote control options include zero-to-10V, DALI, and DMX drivers with dimming down to 1%. The suspended version comes in 2', 4', and 8' sections. alwusa.com
Eggboard, Artemide
A sound-absorbing square with a raised, sinusoidal pattern surrounds this 29W LED downlight, available in 3000K or 4000K at a CRI of 80-plus. Roto-symmetrical reflectors are used to deliver lumen packages of 1,720 lumens and 1,790 lumens with a 32-degree beam spread. Green, gray, and white colorways are offered for the board, which comes in dimensions of 31.5" square as well as 63" by 31.5". artemide.com

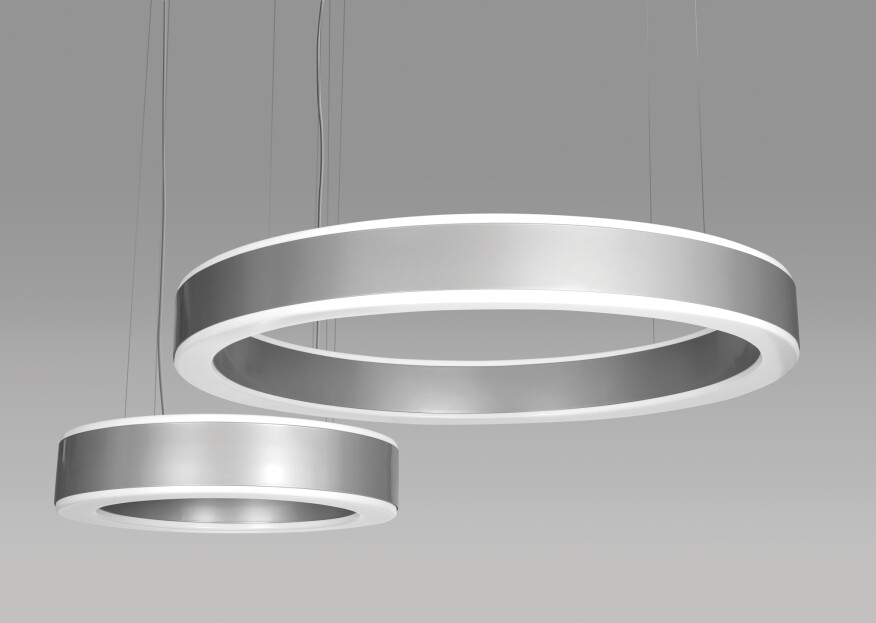

Katrina Circular Luminaire, Birchwood Lighting
Dual rings of continuous LED light are delivered in 2700K, 3000K, 3500K, and 4000K with options for direct/indirect and direct-only light distribution in this cable-suspended or surface-mounted luminaire. The 6"-tall aluminum housing is fitted with a single-piece, frosted white acrylic lens and comes in 2' and 4' diameters. The fixture has a powdercoat finish in silver matte, white matte, and black matte. birchwoodlighting.com
Corelite Iridium i2 WaveStream LED Luminaire, Eaton
Eaton had added a replaceable WaveStream direct/indirect light engine to its Iridium i2 WaveStream LED luminaire. A wide batwing distribution makes the fixture suitable for low-ceiling spaces. It comes in 3000K, 3500K, and 4000K with a CRI of 80-plus and has an efficacy of up to 120 lumens per watt. Multiple up/down distributions as well as integral daylight and occupancy sensors and an emergency battery backup are offered. eaton.com
High Performance 6" Aperture, Finelite
These 6"-aperture recessed, direct, surface-mounted, and air-return LED luminaires have an extruded aluminum body and can be specified in 2'-minimum increments with the option for 90-degree corners. The system is available in 3000K, 3500K, and 4000K with an efficacy of up to 108 lumens per watt. A zero-to-10V integral driver provides dimming to 10%. finelite.com
LED Contemporary Architectural Troffer, Hubbell Lighting/Columbia Lighting
This recessed architectural LED luminaire has a centered lens for even illumination for applications such as offices, schools, and retail. The fixture comes in 2' by 2' and 2' by 4' configurations in 3000K, 3500K, 4000K, and 5000K with a CRI of 80. It can be surface- or cable-mounted. LED modules and electrical components are accessible from below. columbialighting.com
Narrow Linear Architectural Luminaires, LaMar Lighting
With a 2.25"-wide profile, these wall, surface-mount, and recessed luminaires can be specified in spaces requiring continuous rows of light. In 2', 4', 6', and 8' lengths, they are available in 3000K, 3500K, 4000K, and 5000K. Universal 120V/277V inputs are standard with optional zero-to-10V dimming. The die-formed steel housings have a baked white enamel finish with reflectance exceeding 87%. lamarlighting.com
Tilt Linear Product Series, Lauren Illumination
Intended for use in classrooms, offices, hallways, and retail lighting applications, this light panel series comes in dimensions ranging from 4" wide by 48" long to 10" wide by 48" long. Custom sizes are also offered. The fixtures are available in 3000K, 3500K, 4000K, and 5000K with a CRI of 80-plus or 90-plus and provide between 450 lumens and 500 lumens per foot. Grid- and flush-mount versions are available. laureninternational.com
FloatPlane LED, Philips Ledalite
These suspended or wall-mounted LED luminaires are 1.2" high by 8" wide and are available with either a curved- or straight-edged profile. Available in 3000K, 3500K, and 4000K with a CRI of 80-plus, each fixture delivers up to 129 lumens per watt and offers distribution options of 70% up, 75% down, or 100% down. In 4', 6', or 8' runs with white, titanium, black, and custom finish options. Daylight and occupancy sensors can also be added. ledalite.com
Delta, LightArt
Four geometric designs—Delta (shown), Hex, Quad, and Loop—join the company’s Essentials line of thin-gauge, LED luminaires with a bio-based resin shade. Delta is 54" by 46" by 4" and comes in 3000K, 3500K, and 4000K with a CRI of 80. Adjustable cables allow it to be suspended 24" to 96" from the ceiling, and it can be mounted to a standard J-Box. Shade options include cinder and rosewood, as well as blue, red, and yellow. lightart.com
Vaeder, Modular Lighting Instruments
A honeycomb structure runs beneath an ultrathin diffuser in this ceiling-mounted or suspended luminaire, helping to reduce glare in office environments. It is available in 3000K with a CRI of 80-plus, delivers 74 lumens per watt, and takes a 120V input. The fixture is approximately 49.7" long by 7.9" wide by 2" tall. Black, white, and gray are offered for the honeycomb and the housing comes in white and gray. supermodular.com
After 8, Molto Luce/Ledra Brands
An 0.18" profile makes this slender suspension luminaire suitable for a range of architectural applications. It offers 70% downlight and 30% uplight and is available in 2700K and 3000K, delivering 1,470 lumens and 1,520 lumens, respectively, with a CRI of 80-plus. A milled-aluminum housing in black (shown), white, and bronze finishes is fitted with miniature LEDs and a diffuser. moltoluce.com
Baldur, Nordeon USA
This LED light-line system combines spotlighting and direct/indirect illumination in surface- and pendant-mounts. It is available in 3000K, 3500K, 4000K, and 5000K with a CRI of 80-plus and delivers 4,000 or 6,000 lumens for the 4' units and 6,000 or 9,000 lumens for the 6' units. Wide, medium, and narrow beam spreads are offered, in addition to batwing, wallwasher, and diffused light distribution. In white, black, and silver finishes. Zero-to-10V and DALI dimmable. nordeon-usa.com
TruLine 1A and Cirrus with In/Out Connector, PureEdge Lighting
This connector pairs the TruLine 1A recessed luminaires and the Cirrus ceiling-mount and suspension fixtures. For use in horizontal, vertical, diagonal, and geometric configurations across single surfaces or multiple planes in commercial spaces, the 1"-wide TruLine 1A has a 0.6" plaster-in extrusion for installation flush with the wall, merging with the 1"-square Cirrus fixtures at the connector to provide continuous light. puredgelighting.com
M-LED My White, Selux
Available with tunable white light from 2700K to 6500K, this family of dimmable, linear luminaires is suited for use in offices and schools as well as patient spaces in healthcare applications. The company recently added 2.4" and 3.9" widths to the existing 1.4" option. Six lens distributions are offered, including symmetrical, asymmetrical, and batwing. Mounting options include pendant, surface, recessed flanged and flangeless, and wall options. selux.us
Up + Down Pendants, V2 Lighting Group
These pendants come in round and square versions with 3", 4.5", and 6" diameters. Available in 2700K, 3000K, 3500K, and 4000K with a CRI of either 83 or 98, they are fitted with two LED modules that deliver up to 4,000 lumens, depending on the fixture’s size. Zero-to-10V or phase dimming down to 10% is standard. The fixtures have a powdercoat finish and are rated for use in wet and damp locations. v2lightinggroup.com
Meridian, Visa Lighting
A contemporary circular shape makes this luminaire suitable for applications such as lobbies, restaurants, airports, and atriums. It is available in 3000K, 3500K, and 4000K with a CRI of 82. It delivers 79 lumens per watt and is zero-to-10V dimmable down to 10%. The modular fixture has an integral driver and mounts to a 4" octagonal J-Box. Available in 24", 36", and 48" diameters. visalighting.com
Vivaa, Waldmann Lighting
In 16" and 24" diameters, this suspended stainless-steel luminaire comes in 3000K and 4000K, offering 40% direct and 60% indirect illumination. The six-LED version delivers 7,000 lumens and weighs 17.9 lbs., while the four-LED version delivers 5,300 lumens and weighs 9.5 lbs. Both take a direct power supply and have a satin-white acrylic diffuser. waldmannlighting.com
Mirel LED, Zumtobel
For retrofit applications, this louvered fixture features lenses and a light source that are visible to the user, with optics offering directional and batwing light distribution. The fixture is available in 3000K, 3500K, and 4000K with a luminous flux from 2,800 lumens to 3,800 lumens and a CRI greater than Ra80. Dimming includes zero-to-10V and DALI. Installation options include lay-in, recessed or surface-mounted, and high-output/high-efficiency. zumtobel.us
