Arini, Hess America • Arini is offered in three pole styles: straight, inclined, or curved. The light engine uses 56W in 3000K and 4000K with a CRI of 80. It provides 4,144 to 5,678 delivered lumens depending on distribution and color temperature. A cast knuckle provides positive or negative 60-degree horizontal and negative 90- through positive 40-degree vertical adjustability. Optics include three rotationally symmetric distributions and two elliptical beam patterns. • hessamerica.com
eW Blast Powercore gen4, Philips Color Kinetics • This high-performance, forward-throw, asymmetric exterior wallwash LED luminaire with white light (3000K with a CRI of 81) is designed to provide uniform lighting across large surfaces. The housing is offered in black, gray, and white, and there is also the option to add a rock guard with either a full glare-shield or a half glare-shield. It provides 2,521 lumens, and has an efficacy of 52.7 lm/W using an input voltage of 100V/277V AC. • colorkinetics.com

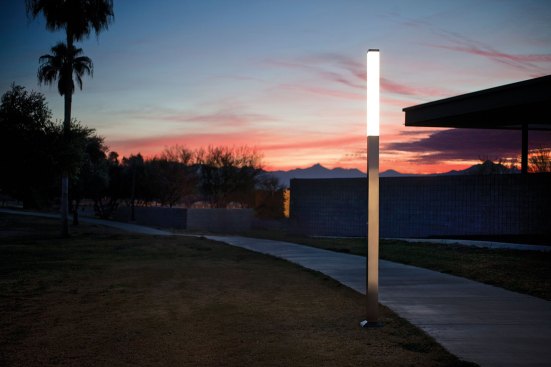

Rincon, Forms+Surfaces • The Rincon family of luminaires (Pedestrian version shown) is now offered with directional shields in a perforated stainless steel with a satin finish. Shields are available in both standard (Huron, Willow, Vertical, and Horizontal) and custom designs. They can be specified for one, two, three, or all four sides of the luminaire. The fixture uses 30W 3000K warm-white and 4000K neutral-white LEDs from Cree. • forms-surfaces.com
Dart, Targetti • These floodlight projectors are offered in two sizes: Dart Small (3" by 4.13" by 2.8", shown), and Dart Medium (5.3" by 7.52" by 5.8"). Dart Small is available in 5W, 12W, and 16W at either 3000K or 4000K with a CRI of 84. The IP67-rated fixture runs on 24V DC and is pre-wired with a 10'-long cable. The fixture mount is adjustable up to positive or negative 45-degree horizontal rotation and positive 150- to negative 45-degree vertical rotation. Finish is ferrite gray. • targetti.us
Everglades Dual-Source Directional Light Fixture, Dauer Lampen • This cast brass landscape fixture can be used as a pathlight, uplight, wallwasher, or a combination of those. It uses one 12V MR16 LED and one 12V MR8 LED in sealed fixture heads that can pivot to customize aiming angles between 15- to 100-degrees. It measures 17.25" tall and is 1.5" wide at the base and 3.875" wide at the top. Pre-wired with a 5" wire lead. • dauerlampen.com

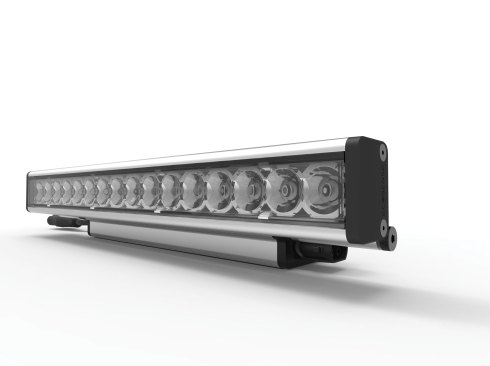

Trov, Ecosense • Trov is an LED platform that creates more than 20,000 luminaire configurations. The optical system has a vast range of cove, graze, and wallwash, as well as a line of light beam angle assortments and a new asymmetric beam option. The system uses a hybrid digital power supply for line voltage LED linear dimming down to zero. The Flip-to-Flat feature allows 180-degree rotation and reduces the fixture profile to just 24.7mm (o.97"). • ecosenselighting.com

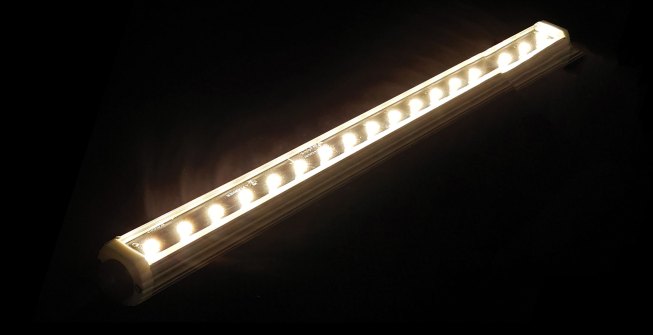

Nanolume Exterior, Boca Flasher • An IP65-rated outdoor version of the company’s interior Nanolume. Made of anodized aluminum with a tempered glass lens, it is coated in a durable finish—black or white—and can withstand harsh conditions. It measures 0.834" by 0.994" and is available in 1', 2', and 4' lengths. It uses 3W or 6W per linear foot and works with standard line voltage dimming from 100 percent to zero. • bocaflasher.com

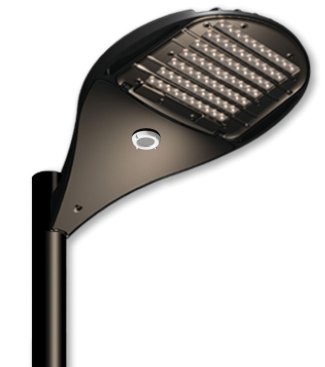

Mirada Round LED Area Light, LSI Industries • The latest addition to the Mirada family of luminaires, the fixture features high-performance, molded-silicone optics that provide light transmittance of 93 percent and do not yellow or crack with age. Available with high-brightness LEDs in 3000K, 4000K, and 5000K at a CRI of 70, it offers between 17,100 and 35,300 lumens depending on wattage and color temperature selection. Zero-to-10V dimming. • lsi-industries.com
Stilo Path, Targetti • Stilo Path comes in two heights: either 43.31" or 31.5" tall by 10.39" by 3.15". It is available in 14W and 24W at either 3000K or 4000K with a CRI of 84. A high-efficiency anodized aluminum reflector with convex facets and high reflectance provides a greater level of illuminance uniformity. Works with electronic phase and zero-to-10V dimming. The IP68-rated anodized extruded aluminum housing has a ferrite finish. • targetti.us

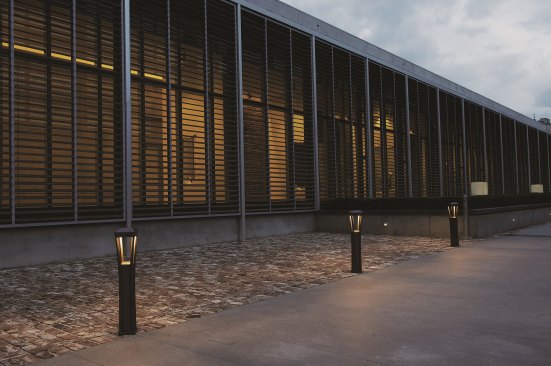

Ashbery, Landscape Forms • The Ashbery Lighting collection was designed by Robert A.M. Stern Architects and Fisher Marantz Stone. It includes a 12'-, 14'-, and 16'-tall pedestrian luminaire, a 3’-tall pathway light (shown), and a wall-mounted fixture. The family of products are made of cast aluminum and use 3000K, 3500K, and 4000K LED modules for the appropriate light distribution depending on fixture type and application. • landscapeforms.com

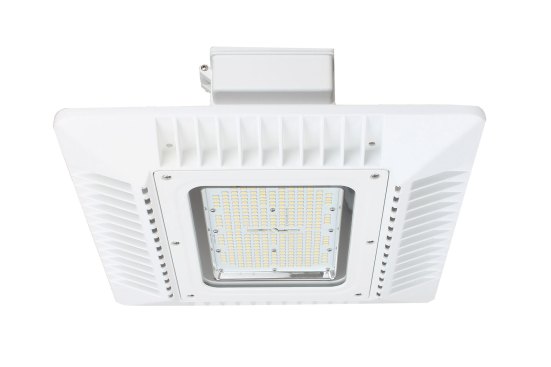

Pad Parking Garage and Canopy, Above All Lighting • Designed for parking garages and canopy applications such as gas stations and drop-off areas, this LED fixture can be surface or pendant mounted. It measures 18.98" by 16.38" by 1.58" and is available in 65W, 100W, and 120W at 3000K, 4000K, 4500K, and 5000K. Its patented air-cooling design includes weep holes so water does not pool on the back of the fixture. Housing finish is white. • abovealllighting.com
Lumenfacade, Lumenpulse Group • The Lumenfacade family now includes nine new optical distributions for a total of 15: Grazing (10 by 30 degrees, 10 by 60 degrees, 10 by 90 degrees, 15 by 20 degrees); Accent (8 by 8 degrees, 10 by 10 degrees, 30 by 30 degrees, 35 by 35 degrees); Floodlighting (30 by 60 degrees, 60 by 60 degrees, 50 by 80 degrees, 80 by 80 degrees, 90 by 90 degrees); as well as wallwashing and direct view. • lumenpulsegroup.com

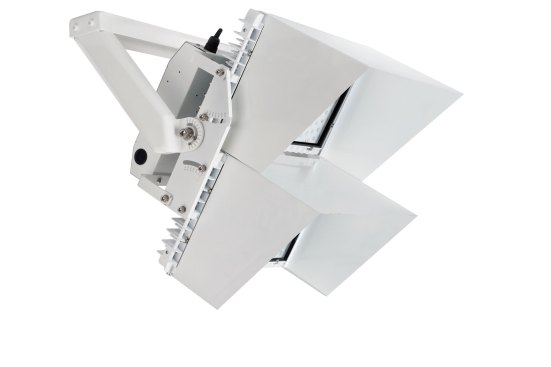

Bolt, Meteor Lighting • This high-lumen-output luminaire is designed for arena and stadium lighting. Two modules can be joined together with a specially designed twin bracket (shown). This version offers 440W or 560W and uses an advance aiming system that allows each module to rotate and tilt 180 degrees horizontally and vertically for precise aiming. A flicker-free video feature supports HDTV live broadcasting and superslow-motion replays. Remote driver system allows driver to be installed at ground level. • meteor-lighting.com
Kona XS, Erco • A cousin to the company’s Kona family, the Kona XS is designed specifically for lighting objects in tight urban areas such as museum sculpture gardens. The IP65-rated Kona XS features a high degree of glare control via Erco’s Spherolit LED lenses. Available in 3000K warm white and 4000K neutral white, the fixture has projector—narrow spot, spot, and flood distributions—as well as floodlighting and wallwashing options. The housing is a high-quality cast aluminum with a double powdercoat finish. The fixture hinge tilts 130 degrees. • erco.com

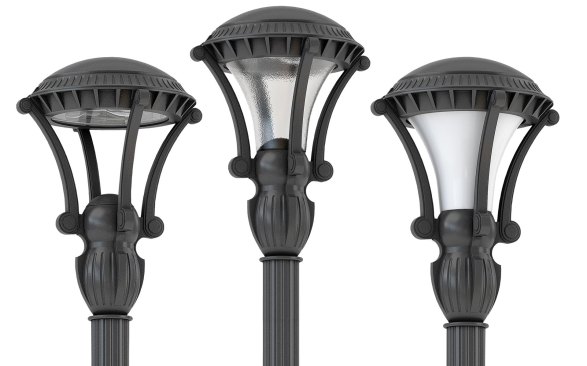

Mozart Series, Sun Valley Lighting • The Mozart Series is now offered in two sizes—34.5" by 26" and 26.5" by 20"—and an expanded range of LED arrays. The constant-current LED driver operates using 120V/277V AC input. The fixture is available as a single pole, double pole, or wall mount. It meets full cutoff standards and, with the company’s VLED driver, it complies with Type II, III, IV, and VSq distributions. Finish options include white, black, dark bronze, and green, as well as custom colors. • usaltg.com
Chaperone LED Indirect Garage Luminaire, Amerlux • Designed to replace sodium downlights, the Chaperone LED is available in 48W and 73W at 4000K and 5000K with a lumen output up to 5,470. It has a die-cast aluminum housing and heat sink, a clear acrylic lens, and an integral driver. It meets Type III and Type V cutoff requirements. It measures approximately 6" by 15". Line voltage occupancy sensors and wireless network control system are options. Silver finish. • amerlux.com
OmniBlast, Schréder • Designed for sports venues, this fixture provides high horizontal and vertical lighting levels for HDTV broadcasting using the company’s three light distribution options: LensoFlex 3, BlastFlex, and Reflectors. Fixture heads can be configured in one, two, and three modules (shown) on the same bracket. Available with 3000K, 4000K, and 5700K white LEDs, the fixture delivers up to 137,600 lumens. • schreder.com
Vox Bollard, Tech Lighting • The company’s entry into outdoor lighting, the Vox bollard provides a contemporary-styled path lighting option. The IP65 wet-listed fixture uses a linear LED array in either 3000K or 4000K with a CRI of 80-plus. It has an acrylic diffuser for vertical and horizontal illumination, as well as a downlight component. The housing is made of a marine-grade powdercoat finish in either charcoal or bronze. • techlighting.com

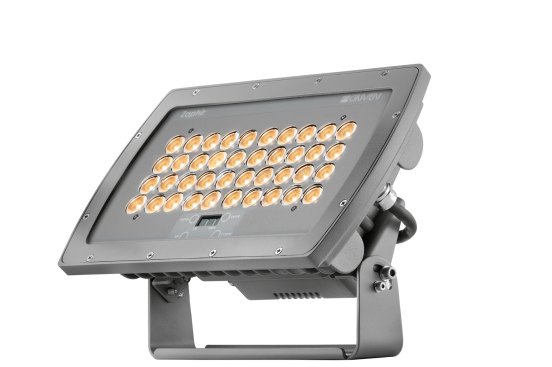

Zaphir, Griven USA • Designed for illuminating building façades, bridges, monuments, and the like, this compact (13" by 8.2" by 4.75") projector uses 40 high-power LEDs in RGBW, dynamic white, static white, or cool white. It has five symmetric beam distributions—7, 11, 20, 43, or 68 degrees—and two elliptical beam patterns—41 degrees horizontal by 9 degrees vertical, or 38 degrees horizontal by 21 degrees vertical. It includes an integral thermally isolated LED driver, and continuous dimming from 100 to 1 percent. •
griven-usa.com
Landscape Mini Accent, WAC Lighting • This IP66 wet location fixture is designed to replace halogen landscape luminaires. It is available in either a solid die-cast brass or corrosion-resistant aluminum housing in a bronze finish. It uses a 9V-to-15V system input and can be used as an uplight or a downlight. It is available in 2700K or 3000K and delivers up to 365 lumens with four continuous adjustable beam spreads: 10, 25, 40, and 50 degrees. • waclighting.com
Lumistik, Luminis • The Lumistik family is offered in bollards, columns, pendants, and wall luminaires. It has an extruded aluminum base and a high-impact acrylic diffuser and a clear lens with an integral optical system to provide 360-degree illumination. Lumistik is offered in 6" and 8" diameters in overall lengths from 72" to 312". It is available in 2700K, 3000K, 3500K, and 4000K at a CRI of 80. Lumen output range is 830 to 12,450 depending on model. • luminis.com

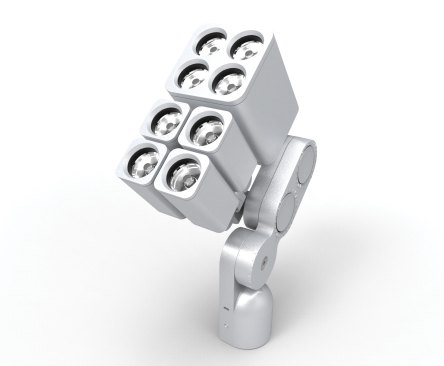

Rise, Ecosense • A scalable exterior-rated product platform, Rise can be configured to offer spot, accent, landscape, signage, and floodlighting. Individual modules (2.5" by 2.5"), can illuminate a single object or be aimed separately. Rise features a center beam candlepower two times greater than anything market available, a tight 5-degree beam angle, and a locking system that allows for a 360-degree pan and 180-degree tilt using a single twist. • ecosenselighting.com

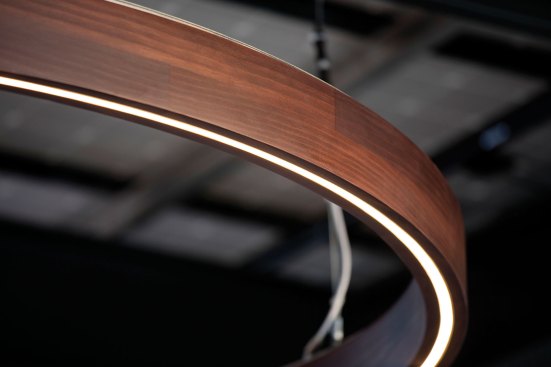

Aura, Structura • This solid accoya wood LED ring is available in diameters from 2' to 6'. It is suspended using a catenary cable system or ceiling mounted. Hardware is stainless steel. The dimmable power supply is IP65 rated; the luminaire is IP67 rated and treated with a low VOC waterborne matte exterior finish with UV and mildew inhibitors. Available in 2700K, 3000K, 3500K, and 4000K. • structura.com
Shuffle, Schréder • Designed for urban environments in today’s connected world, this pole system features plug-and-play modules where lighting and controls, WLAN, motion sensors, CCTV, EV charging, and loudspeaker capabilities can be combined in a single unit. Up to five modules can be installed in a column. Lighting options include 180-degree and 360-degree distribution. All modules have quick connectors and are delivered pre-wired. • schreder.com

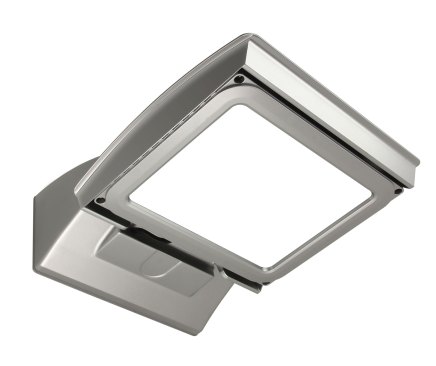

MPulse, MaxLite • This surface-mount luminaire has a flexible design and can be installed as an open face or a full cutoff fixture. It is available in 25W, 50W, and 100W in 3000K, 4000K, and 5000K. The die-cast aluminum housing has a polycarbonate lens with a patent-pending visual comfort technology. Available in Type III and Type IV optics for asymmetric and symmetric distributions. Finish options are: silver chrome, polished bronze, black, white, and custom. • maxlite.com

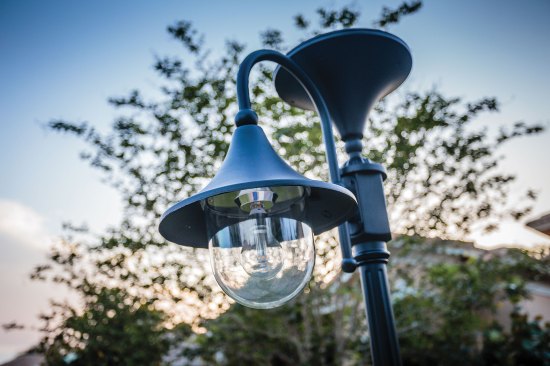

Everest Solar Lamp GS-109B-S, Gama Sonic • This solar streetlighting luminaire uses a GS solar lamp with 11 LEDs in a polycarbonate dome and a 5W, 190mm by 190mm solar panel. Charging provides three nights, or 18 to 20 hours of run time. The fixture provides 200 lumens and uses a 3,000-mAh Li-ion battery. The housing is cast aluminum with a black finish. Overall dimensions are 23" by 11" by 92". • gamasonic.com
