Ai Cove, Acclaim Lighting
Dimmable from 3000K to 1800K using a standard, TRIAC dimmer, this interior cove fixture is suitable for architectural applications. The luminaire can be specified in 1' and 4' sections, delivers 500 lumens per foot with a CRI of 90, and it consumes 10W per linear foot. The fixture has a 120-degree beam spread. An IP20-rated polycarbonate housing makes the fixture suitable for use in dry locations. It is also offered with zero-to-10V and DMX controls. acclaimlighting.com

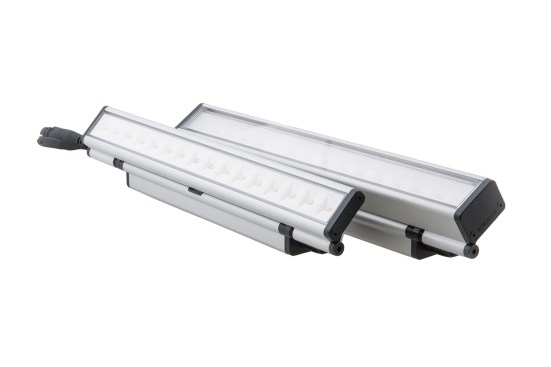

Trov, EcoSense
A range of optical distributions, including direct-view and asymmetric, makes this linear LED luminaire series suitable for interior and exterior cove, grazing, and wallwash applications. The dimmable system is available from 2200K to 2500K with a CRI of 80- or 90-plus as well as with red, green, blue, and amber LEDs. A flip-to-flat hinge allows designers to adjust the beam spread from zero to 180 degrees. ecosenselighting.com

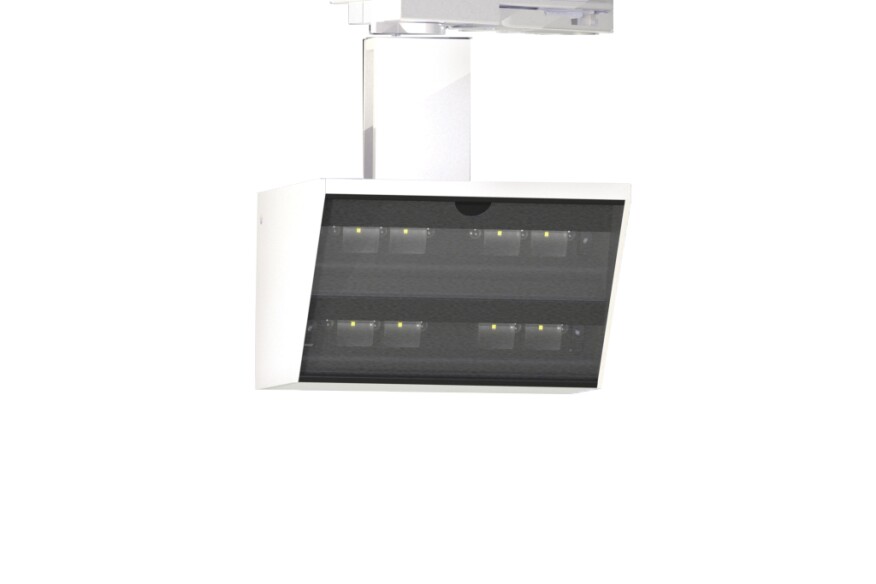

Stacklite CZR, Edison Price Lighting
This compact, track-mounted wallwasher has been updated to include an LED light source. Four chip-on-board linear LED arrays are available in 3000K and 3500K with a CRI of 80 or 90. The fixture delivers up to 2,400 lumens and is dimmable down to 1%. The internal LED mounting assembly can pivot vertically up to 50 degrees. A surface-mounted version is also available. epl.com
LED DW Series, Engineered Lighting Products
Vertical light throw and an indirect reflector that eliminates scalloping combine in this wallwash and grazing fixture, which can be installed less than 2' from the surface that it is illuminating. The company recently updated the fixture with 11W LED modules in 2700K, 3000K, 3500K, and 4000K with a CRI of 80-plus. Dimming options include zero-to-10V controls. The fixture’s housing provides tool-free access to the driver and wiring. elplighting.com

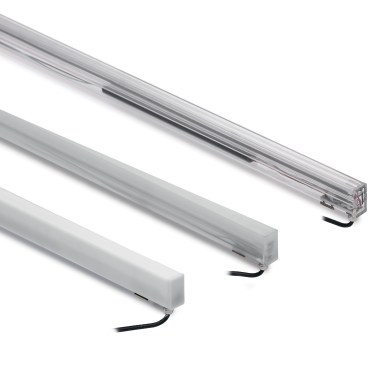

Linealight Paseo, Inter-Lux
This outdoor linear LED luminaire offers emission options for diffused light, wallwashing, and grazing. It is available in 3000K and 4000K with a CRI of 75. Its polycarbonate casing can be specified with either a transparent or opalescent diffuser while a power supply cable located on the fixture’s bottom allows for daisy-chaining. Dimming options include 1%, zero-to-10V, and 120V/277V. The fixture is ETL wet-location listed and IP67 rated. inter-lux.com

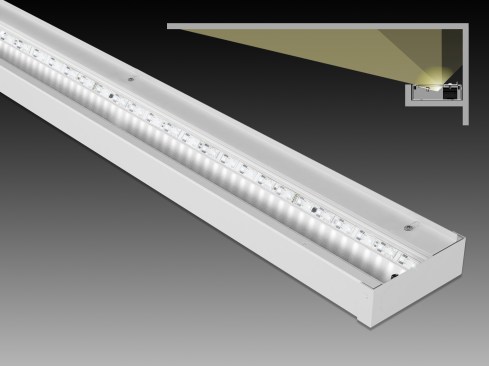

EF600 Series, LF Illumination
In 2' to 8' lengths with a clear or diffuse lens, this linear LED cove- and surface-mounted lighting system features three LED power levels delivering up to 1,200 lumens per foot. A 4" wide by 1.25" tall metal housing allows for installation in tight spaces. The fixture has a field-replaceable integral LED driver and built-in thermal protection and wiring. Offered with a white powdercoat finish. lfillumination.com
LPW8 Series, Lighting Services Inc
A field-replaceable, chip-on-board LED panel powers this stem-mounted wallwasher. The LPW8 Series delivers 2,180 lumens through an asymmetric, total-internal-reflection optic. An integral driver is compatible with trailing-edge electronic low-voltage (ELV) dimming down to 5% with options for use with LumenTalk through DMX, TRIAC, ELV, or zero-to-10V systems down to 1%. lightingservicesinc.com
PureGlow IntelliHue Powercore, Philips Color Kinetics
Philips Color Kinetics redesigned this linear luminaire with a novel optic that mixes internal channels and reduces mixing distance. It offers tunable white light in 2700K to 6500K with high CRI Ra and CRI R9, as well as saturated color, and delivers a minimum of 750 lumens per foot. Three beam spreads are offered. The fixture uses up to 13W per foot, runs on 100V/277V AC, and is controllable via DMX and Ethernet. It is IP20 rated. colorkinetics.com

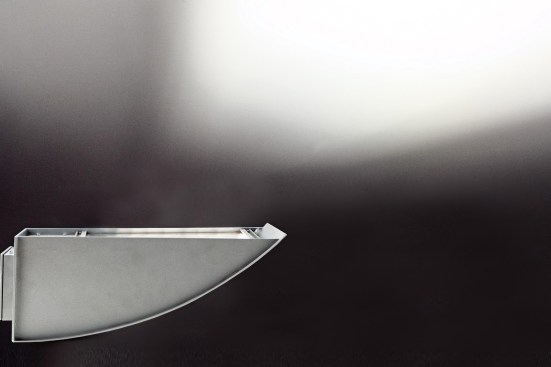

Butterfly Wall, Orgatech Omegalux
This forward-throw, indirect LED wall and ceiling luminaire is suitable for use in large, open spaces such as shopping malls and airports. In 12" and 18" squares that are 4.5" and 7" deep, respectively, and with curved sides that taper to the front, each delivers up to 16,000 lumens and come in wattages from 32W to 95W. The housing is offered in black, bronze, silver, or white polyester powdercoat finishes. UL listed for wet locations. orgatechomegalux.com
MicroWash Asymmetric, Prudential Lighting
This LED wallwasher offers up to 250 degrees of tilt capacity to illuminate signage and artwork. It is available in 2700K, 3000K, 3500K, and 4000K, and delivers up to 1,080 lumens per foot. The fixture can be surface-, cable-, or stem-mounted to walls and ceilings. Dimming options include zero-to-10V, step, and DALI. prulite.com

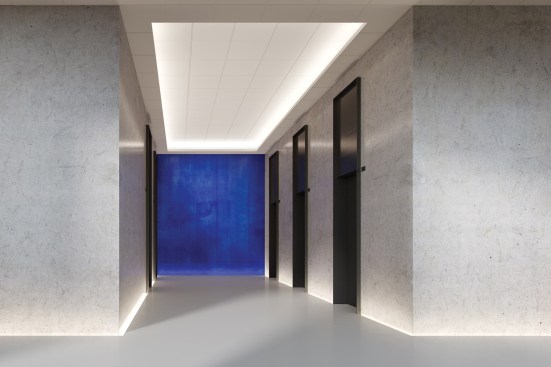

ZipWave LED 707, Vode Lighting
For use with acoustical ceilings in corporate, hospitality, and healthcare applications, this wallwasher is available in 2700K, 3000K, 3500K, and 4000K with a CRI of 84 and delivers up to 708 lumens per foot. Rail lengths of 24", 36", 48", 60", and 72" are offered with a 20" integral-power housing and profiles of 1.8" by 3.7" for the ceiling cove and 1.6" by 3.8" for the wall cove. Dimming options include 1%, 10%, zero-to-10V, DALI, and Lutron EcoSystem. vode.com

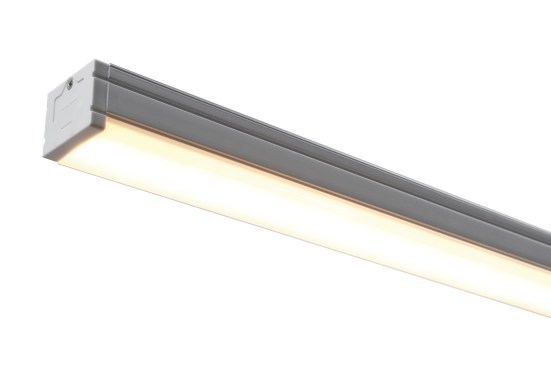

640 Cove LED, Wila/Ledra Brands
With a low-profile housing, this linear line-voltage LED cove fixture is available in 3000K and 4000K with a CRI of 80-plus. Dimmable down to 1%, the fixture has a 120-degree beam spread and delivers 500 lumens per foot. Its extruded-aluminum housing comes in a white finish. wilalighting.com
