Project Details
- Project Name
- Corbel-Bacon Cabin
- Architect
- Hannah Design Office
- Client/Owner
- Hannah Design Office
- Project Types
- Second Home
- Project Scope
- New Construction
- Size
- 97 sq. feet
- Shared by
- Miabelle Salzano
- Project Status
- On the Boards/In Progress
Project Description
FROM THE ARCHITECTS:

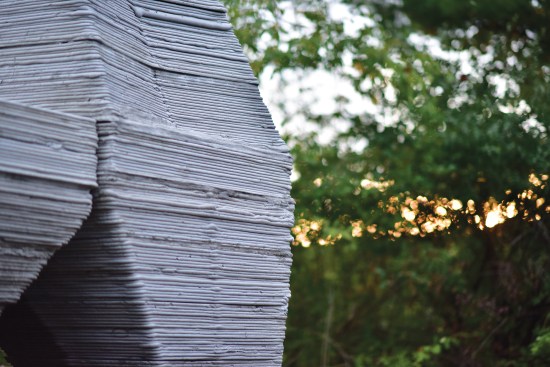

Corbel-Bacon cabin is a small vacation home for a couple. The structure explores corbelled structures in concrete 3D printing and investigates log slicing using Cornell RCL’s open source KUKA KR200/2 with a band saw end effector.

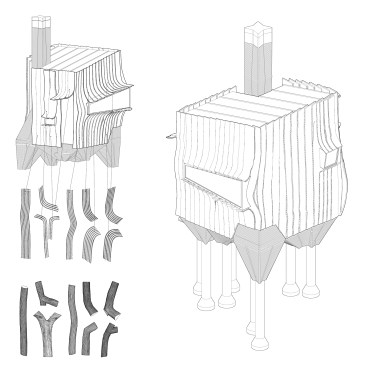

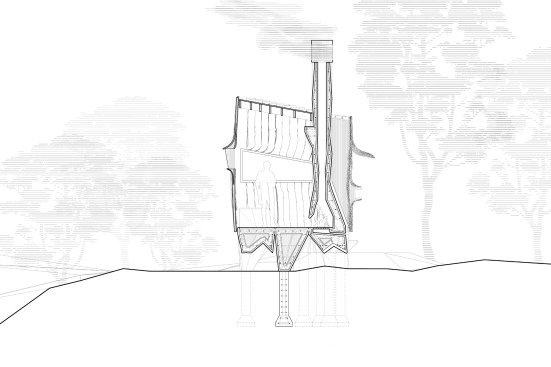

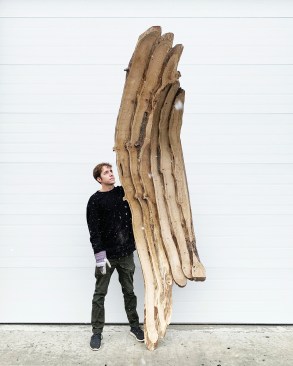

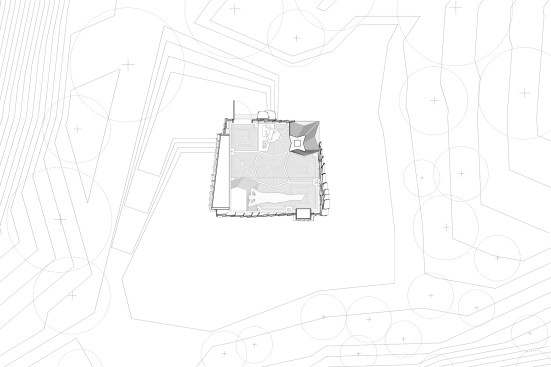

The building has a footprint of roughly 3x3 meters and lifts off the ground on 3D printed legs which adjust to the terrain. The legs are arranged in an interlocking pattern to provide lateral stability. The concrete structure is characterized by three programmatic areas, a table, a storage seat element, and a 6.5m tall working fireplace. The lightweight wood skin is constructed out of irregular full scale tree elements which are robotically sliced along the entire length of the log (= to bacon).
Corbel-Bacon cabin is currently under construction.
