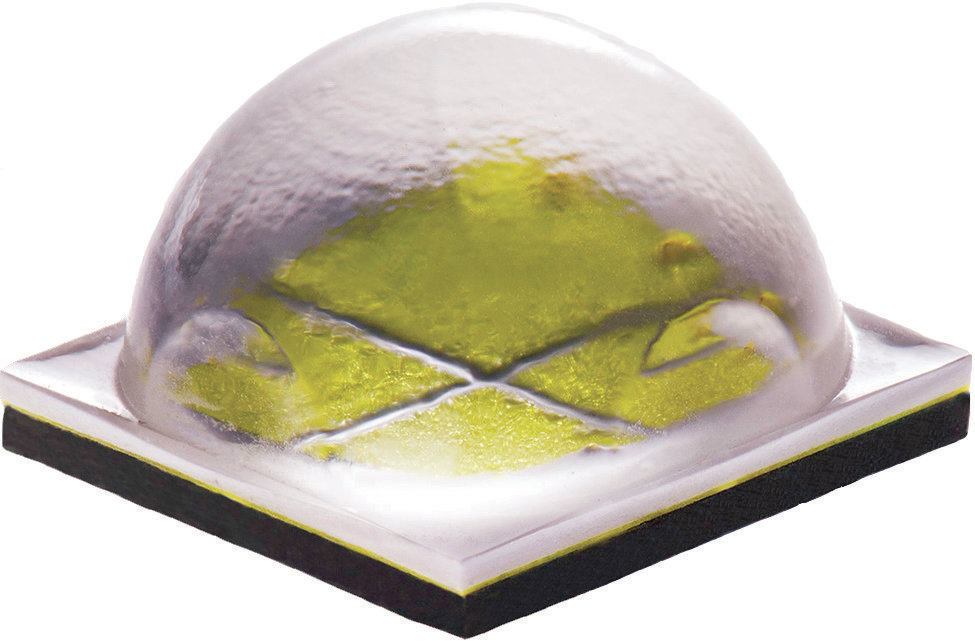

XLamp XHP LEDs, Cree
Cree’s new line of LED modules come in two versions: 19W that provides 2,546 lumens at 5mm square and 32W that provides 4,022 lumens at 7mm square. Available in two- and three-step bins for 2700K through 3500K at CRIs of either 80 or 90. The streamlined modules’ solder-pad design allows for either 6V or 12V configurations from the same LED, while enabling manufacturers to use a smaller circuit board and a more minimal heat sink and housing when incorporating them into luminaire designs.

EcoSense Lighting

Slim Cove INT, EcoSense Lighting
This streamlined, line-voltage LED strip is suited for coves and other linear lighting applications and comes in 6", 12", and 48" lengths. Available in 2700K, 3000K, 3500K, or 4000K with a CRI of 80-plus, the luminaire consumes 3.5W per foot and has a 120-degree square beam spread. It measures 1.37" wide and 0.93" tall with mounting clips and a polycarbonate housing and lens.


FlexAray Side Lit Tape, Feelux
LEDs are mounted on the edge of this low-voltage strip to provide concentrated side lighting for horizontal and curved applications. The field-cuttable flat conductor strip houses 36 LEDs per foot and is available in 2200K, 2400K, 2700K, 3000K, 4100K, or 6000K. It delivers up to 50.45 lumens per watt at 2.9W per foot, and comes in 16.4' spools that can be cut every 1.97". Color consistency is within a two-step MacAdam ellipse. For use indoors and outdoors.


ThoroLED Retrofit Kits, Fulham
Designed for use with 7" and 9" rounds, these TRIAC dimmable LED light engines can fit most standard fixtures for retrofit applications. All required hardware and installation instructions, as well as the LED and driver, are included. The RoHS-compliant kits are cULus classified, suiting them for field or factory installation. Available in 80 or 90 CRI and in color temperatures from 2700K to 5000K.


Color Tuning Module, Lumenetix
Five LED color strings deliver dimmable, tunable white light at a CRI of 90-plus across a tuning range of 1650K to 4000K for this 50mm-diameter module. Gradients of saturated colors from 1% to 100% can be added to color points within the tuning range. An onboard closed loop optical feedback measures the lumen depreciation of each channel and re-balances the color model. Dimming options include zero-to-10V, DALI, and DMX controls.

Osram Sylvania

PrevaLED Cube Gen II, Osram Sylvania
This high-powered, square light engine has integrated optics for use in recessed downlights, and low-bay and surface-mounted luminaires. Compatible with most heat sinks, fixture-mounting holes, reflectors, and other accessories. Each 3.2" by 3.3" module measures 0.8" tall and has a beam angle of 110 degrees. Fully dimmable, it comes in 2700K, 3000K, 3500K, 4000K, or 5000K with a CRI of 80-plus, and delivers 1,100 lumens, 2,000 lumens, or 3,000 lumens.


SR95, TerraLux
Replacing pin-based CFLs and ballasts in existing commercial wall sconces, this surface-mounted LED kit includes drivers and patented thermal protection and is suited for constant-use applications such as hallways, lobbies, and stairwells. Available in 2700K, 3000K, 3500K, or 4000K with a CRI of 80-plus, the installed kit delivers up to 110 lumens per watt and is dimmable via zero-to-10V controls. Input power can be either 120V or 277V AC.

Universal Lighting Technologies

Everline Light Engines, Universal Lighting Technologies
This family of LED light engines is suited for use in a variety of general and specialty fixture applications and ranges from 2700K to 5000K with CRIs of greater than 80 or 90. Configuration options span a 365-lumen, 6"-linear system to a 14,000-lumen downlight engine. Models include linear strips, round-pattern chips, square, and a constant-voltage chain.


XIM with Integrated Dimming Driver, Xicato
This LED light engine integrates a dimming driver and uses onboard technology to monitor LED temperature and electronics, triggering a protection mode if the maximum temperature is exceeded. Available from 2700K to 4000K in a CRI of 83 or 98, it delivers from 1,300 lumens at 13.1W to 2,000 lumens at 21.2W. Dimming options include DALI and 1V-to-10V systems. A 48V, constant-voltage power supply is required.

See more products from the 2015 Products Issue here.
