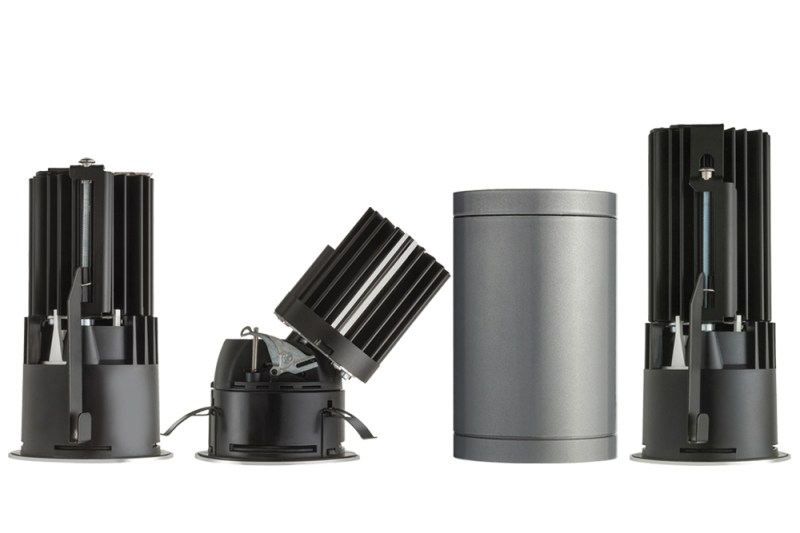

Acuity Brands Gotham Lighting

Incito 2" Family, Acuity Brands Gotham Lighting
This line of round and square downlights, wallwashers, adjustables, and cylinders lets designers create multilayered lighting schemes. Four lumen packages—500, 750, 1,000, and 1,500—are offered, along with 13 field-changeable silicon optics that come in 5-degree increments from 15 degrees to 55 degrees, as well as four elliptical distributions. Control options include nLight, zero-to-10V, and 120V phase-cut dimming.

Acuity Brands Juno Lighting Group

Juno 2" LED Downlights and Adjustables, Acuity Brands Juno Lighting Group
An alternative to 6", 65W incandescent downlights, these 2" LED fixtures deliver up to 600 lumens and consume 10W. They are available in 2700K, 3000K, 3500K, and 4100K with a CRI of 80 or 90-plus. They are UL and cUL listed for wet locations and come in cone and baffle styles. White, black, satin nickel, and brushed bronze finishes are offered.

Acuity Brands Juno Lighting Group

Third-Generation Aculux 3 1/4" LED Luminaires, Acuity Brands Juno Lighting Group
These 27W LED downlights replace 39W ceramic metal halide fixtures, delivering up to 2,000 lumens and producing over 21,000 center-beam candlepower in a 12-degree spot. Ten beam spreads between 12 and 60 degrees are offered, and the fixtures deliver an efficacy of 80 lumens per watt. Round, square, flush-mount, and self-flanged trims are offered.

DMF Lighting

OneFrame, DMF Lighting
This low-profile, small-aperture downlight is fire-rated, eliminating the need for boxing, and offers tool-free height adjustment. It is available in 2700K, 3000K, 3500K, and 4000K with a CRI of 93-plus. It uses 120V/277V inputs and offers TRIAC and electronic-low-voltage dimming down to 5%. Round and square trims are offered. For new construction with a deep J-Box, bar hangers pivot for horizontal or vertical mounting.


RSA Combolight Gen 3, Eaton
This multilamp recessed LED luminaire is suited for new construction applications with insulated or noninsulated ceilings as well as retrofit projects. It is available in 2700K, 3000K, 3500K, and 4000K with a CRI of 95-plus. With integral and remote power supplies, dimming options include DALI down to 0.1% and zero-to-10V down to 1%. In configurations of up to six linear and four square arrangements with trim and trimless options.

Intense Lighting/Leviton

MX Multiple with Tunable White, Intense Lighting/Leviton
These recessed multiples are tunable from 2100K to 4300K and work with zero-to-10V, Lutron EcoSystem, and DMX digital control systems with dimming to 0.5%. Configurations of up to four heads are offered, and each can be adjusted up to 25 degrees vertically and 360 degrees horizontally. Each head delivers up to 1,000 lumens. Narrow flood, flood, and wide-flood beam spreads are offered.

Jesco Lighting

ML1 and ML2 LED Modulinear Luminaires, Jesco Lighting
These aimable, dimmable recessed downlights have been updated to offer white light from a low-profile housing. Each fixture has a single 22.5W or 15W high-output, chip-on-board LED that provides color clarity at 2700K, 3000K, 3500K, or 4000K with field-changeable beam spreads. Cold-rolled steel housings have separate wiring compartments, with matte black, white, and silver finishes.


D3, Ketra
These 3.5" tunable downlights deliver saturated and pastel light from a single-point source. Available from 2700K to 6500K at 1,100 lumens and a CRI of 90-plus, the fixture can be specified with beam distributions of 15, 25, 40, and 60 degrees. Round, square, flanged, and flangless apertures are available. The fixtures are wireless and TRIAC dimmable down to 1%, and are offered in white, black, semi-specular, and primer finishes.


Holon 40 LED, Kreon
An offset hinge permanently tensions these 8.4W directional LED spotlights, allowing them to remain fixed at any angle. For use indoors in residential applications, the fixtures can be recessed or surface-mounted and are rotatable 355 degrees horizontally and tilt 90 degrees vertically. They are available in 2700K with a CRI of 80-plus and provide 780 lumens. Their aluminum housing comes in white and black powdercoat finishes.

LF Illumination

VF300, LF Illumination
The aperture and throat of these recessed, trimless downlights are made from plaster, allowing them to be painted for use with drywall and other plaster-in ceilings. The LED module comes with a wide or tight beam for adjustable spotlighting, as well as with an MR16 gimbal for LED retrofit or halogen lamps adjustable up to 10 degrees. The field-changeable LED includes optional 2700K to 1800K sunset dimming. Its 4" aperture throat has a 40-degree visual cut off.

Lighting Services Inc

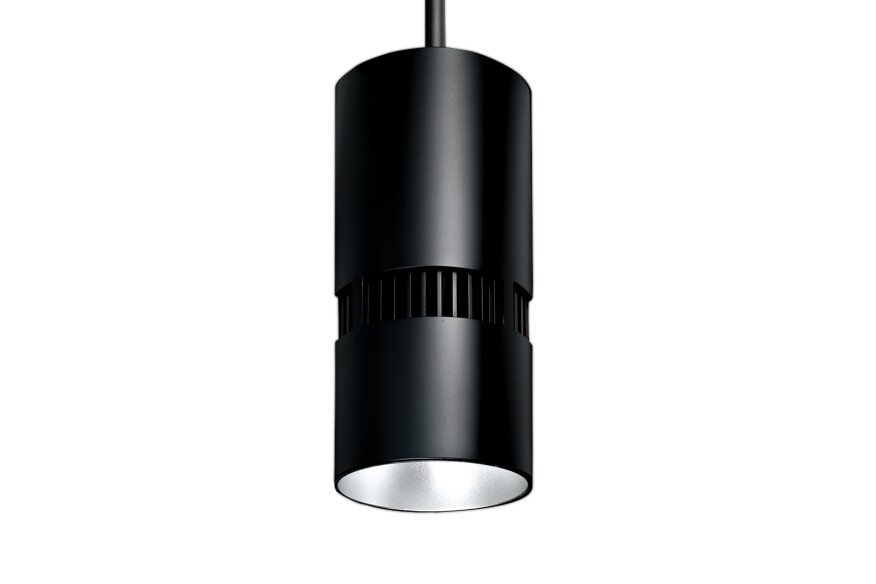

LumeLex 2048 Series, Lighting Services Inc
This fixed LED pendant features an architectural housing and has an efficacy of 65 lumens per watt for use in hospitality applications. It can be specified with dim-to-warm technology from 2800K to 2000K and is fitted with a mixing optic for even light distribution at 15- to 60-degree beam spreads. The LED module is field-replaceable and the system is compatible with various dimmers down to 1%.

Louis Poulsen

LP Mini Downlight System, Louis Poulsen
The LED light engine on this 17W recessed downlight is built into the ceiling while the light distribution components are located below the ceiling plane. Available in 3000K and 3500K, the system takes a 120V/277V input and is zero-to-10V dimmable. Multiple options for light distribution components and trims are offered and require a 4.125"-diameter cutout. The fixture is cUL US listed for damp locations.


Syrios Square Cube, Luminis
This compact luminaire comes in ceiling-mounted downlight and wall-mounted up- and downlight variations. It is available in 3000K, 3500K, and 4000K with a CRI of 80 and at 2700K with a CRI of 90. Zero-to-10V dimmable, the fixture delivers 1,000 lumens and includes a 26-degree reflector with a 40-degree flood optic and a linear spread lens. Its 5" housing is made of seamless extruded aluminum with a sealed LED module.

Meteor Lighting

Cylinder Slim Series, Meteor Lighting
Outputs from 2,000 lumens to 10,400 lumens make this 6" aperture LED downlight suitable for spaces with varied ceiling heights. In 2700K, 3000K, 3500K, 4000K, and 5000K with optional color tuning and with a CRI of 75, 85, or 90, it can be specified with beam spreads of 15, 25, 40, 60, and 100 degrees. Dimming options include DMX, zero-to-10V, and DALI. Surface-, wall-, stem-, and aircraft-cable-mounting options are offered.

Modular Lighting Instruments

Smart Cake, Modular Lighting Instruments
Gently sloping sides help to evenly distribute light in this single-source LED downlight, which is offered with three trim options and white, black, and gold finishes. For ceiling-recessed or surface-mounted applications, the fixture comes standard in 2700K and 3000K with a CRI of 90-plus and with an efficacy of up to 81 lumens per watt. With medium, spot, and flood beam distributions. The fixture is IP20 rated.

Nora Lighting

Trimless MLS, Nora Lighting
The company’s trimless MLS fixtures are now available in one-, two-, and three-light linear configurations with LED or PAR30 medium-base light sources. For new construction and retrofit hard-ceiling applications, a mud-in ring facilitates clean edges. Available in 2700K, 3000K, 3500K, and 4000K with a CRI of 90-plus. It is offered with 40-degree and 15-degree beam spreads. Dimming options include TRIAC and zero-to-10V controls.

USAI Lighting

Baby LED, USAI Lighting
At less than 2" tall and with 3" to the finished ceiling, this ultrashallow housing comes in round, square, trimmed, and trimless variations, making it suitable for a range of recessed applications, particularly those with shallow plenums. It is available in 2700K, 3000K, 3500K, and 4000K with a CRI of 80-plus as well as 2700K and 3000K with a CRI of 90-plus. Two lumen packages are offered: 14W with 900 delivered lumens and 20W with 1,150 delivered lumens.

USAI Lighting

SliverLED MR, USAI Lighting
A 3.5"-deep housing and 0.04" trim suit this low-profile, 2" aperture downlight for use in applications with shallow plenums, and it can be lamped with a range of low-voltage LED MR16 GU5.3 base 15W (maximum) replacement lamps. It is available with white or black baffle options with trims in white, black, textured white, and metalized gray. For new construction applications, the fixture takes a 120V input.
