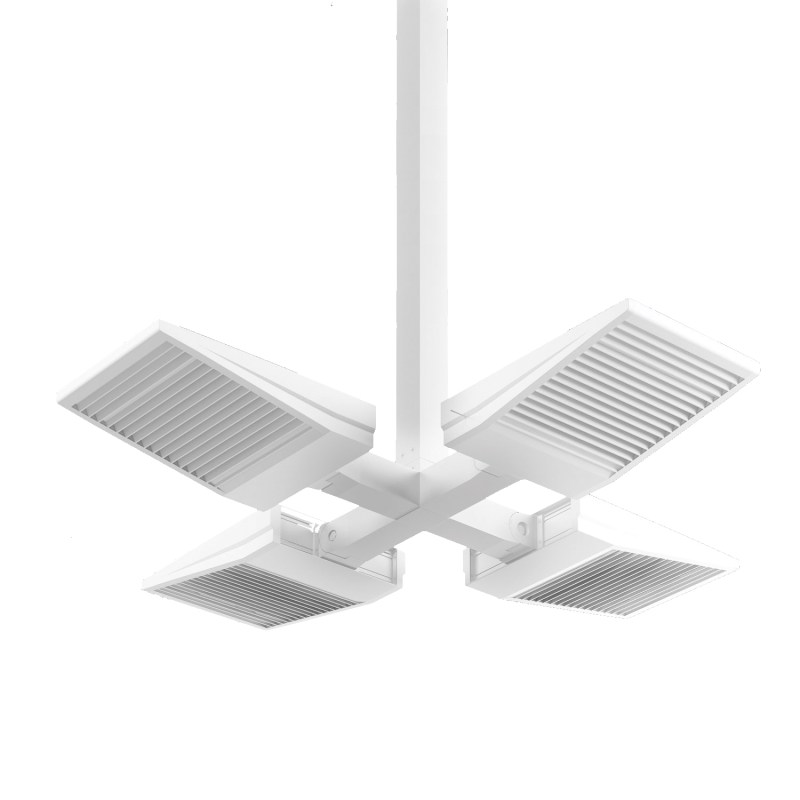

Ametrix ASYC 2.0 Natatorium, Eaton • The ASYX 2.0 family of luminaires is designed for harsh pool environments. It includes wall mount, single pendants, dual pendants, and quad pendants in six different sizes and can be mounted face up or face down. Lumen packages range from 2,300 to 120,000-plus and four color temperatures are offered with a CRI of 80-plus. It has rotatable optics—zero, 90, 180, and 270 degrees. • eaton.com

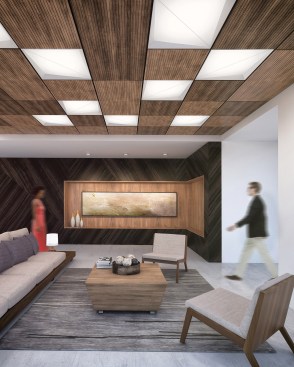

Facetta, Focal Point • Inspired by the facets of a prism, this 2' by 2' recessed luminaire with an angled profile and soft, uniform glow, can be arranged in unique groupings. The one-piece hinging optical assembly allows for easy access to the LEDs and drivers. Delivered lumen output range is from 1,000 to 4,000 lumens. • focalpointlights.com
NeoRay Covera, Eaton • This direct/indirect luminaire is available in 2' and 4' lengths and is suspended from the ceiling using LuxWire-powered aircraft cable. The fixture is available in 2700K, 3000K, 3500K, and 4000K and uses Eaton’s curved WaveStream optics. Zero-to-10V dimming is standard. Available in three standard powdercoat finishes—silver, white, and black—or optional architectural hydro-graphic finishes—white oak, white marble, gray ash, brown willow, dark walnut, and carbon fiber. • eaton.com
C70 Series Performance Cylinders, Pathway Lighting • This family of cylinder luminaires is available in eight styles and can be used indoors and out. Cylinder heights range from 6" to 29"; nominal diameters from 2" to 7". Output is from 500 to 3,000 lumens. Multiple beam spreads are available and zero-to-10V dimming is to 1 percent. Mounting options include surface, stem, straight cord, and wall. Five standard finishes and RAL custom colors. • pathwaylighting.com
Transition, Specialty Lighting • This linear LED fixture has a 1" by 1" aluminum housing, and is available in 1', 2', 3', and 4' lengths (custom lengths can be requested) at 2700K, 3000K, 3500K, and 4000K. The lamp can be rotated 45 degrees. It has two lens options—diffuse or clear—and runs using 120V/277V, or universal voltage, and includes a dimmable power supply. • specialtylighting.com
Fold, Fluxwerx • For spaces with presentation, projection, or video conferencing requirements, this linear luminaire offers multiple light distributions. Direct-only is 100 down, and the four direct/indirect options are: 20 up/80 down, 45 up/55 down, 55 up/45 down, and 65 up/35 down. The distributions are fully dimmable or switchable via independent control. Three endcap styles—arch, oblique, and slant—and three finish options—white and black powdercoat and clear anodized. • fluxwerx.com

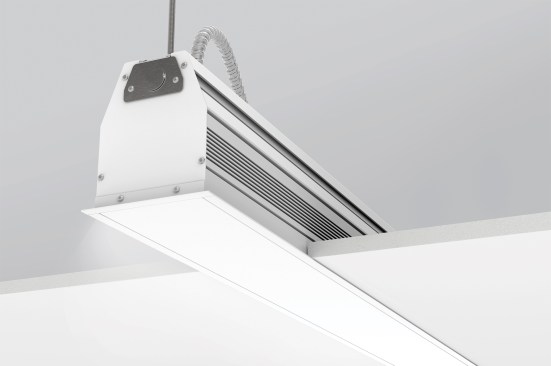

L4R Recessed Linear, Ketra • The L4R recessed linear provides continuous lines of light. It uses Ketra’s fully tunable spectrum to deliver high-quality white, saturated, and pastel light from a 4" aperture with a flush opal lens. Available in lengths from 2' to 12', and a variety of mounting and finish options. Power and control requires a wired connection to a Ketra N3 satellite. Programmable digital dimming to 0.1 percent. • ketra.com
Mini CoveLine LED, Solid State Luminaires • At 0.875" tall, the Mini CoveLine LED is the lowest profile cove-style fixture in its class, according to the manufacturer. The fixture has a 180-degree, adjustable mounting bracket and plug-n-play connectors. Available in 1' and 4' lengths at 2700K, 3000K, 3500K and 4000K, it uses a 120V/277V power supply and is dimmable to zero brightness. • solidstateluminaires.com
Slimgot, Arkoslight • This linear fixture features an aluminum body that serves as its heat sync. Its truncated pyramid shape optimizes the luminous flux output of the LEDs. It is available in two sizes: The 120 is 3.93' long by 3.5" wide, uses 17W and is available in 3000K and 4000K and a CRI of 80-plus. The 150 version is 4.92' long by 3.5" wide and uses 21.5W at 3000K and 4000K with a CRI of 80-plus. White or neutral finish. • arkoslight.com

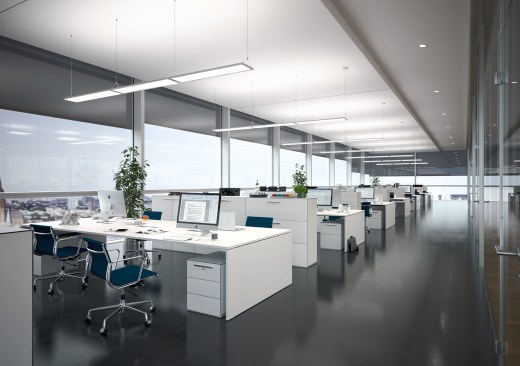

Idoo Pendant, Waldmann Lighting • A direct/indirect suspended luminaire with a slim profile, it provides uniform, glare-free light via edge light and lightguide technology. Available in 49W with a CRI of 80-plus, light distribution is 34 percent direct and 66 percent indirect. • waldmannlighting.com
RPD 15, Neidhardt, Architectural Lighting Works • This linear fixture has segments that can be rotated 30 degrees in each direction. Available in arm lengths up to 96" at 2700K, 3100K, 3500K, and 4000K, the fixture delivers 1,000 lumens per foot. Standard finish choice is brushed aluminum or satin white (RAL or Pantone colors are also available). Options include emergency power pack and integrated driver. • neidhardtinc.com
NeoRay Converge, Eaton • Featuring a wing shape design, this luminaire provides visual comfort using a unique uplight distribution using a proprietary light mixing chamber. Available in 4' and 8' lengths at 3000K, 3500K, and 4000K, the fixture uses Eaton’s curved WaveStream optic; and LuxWire aircraft cable suspension system. Zero-to-10V dimming is standard, and DALI dimming is also available. For lighting controls, the fixture is both distributed low-voltage power and LumaWatt Pro enabled. • eaton.com
Surprise HueBella Pendant, Archlit • This linear system includes adjustable modules, downlights, and blind sections. The housing is an aluminum extrusion with white, black, or custom color finishes, and is suspended from the ceiling using aircraft cable. Available in 2700K and 3000K with a CRI of 90-plus, it uses 13W per linear foot. A film shields the LED driver boards from view, eliminating the diode dot pattern. Dimming options include TRIAC 120V/277V and zero-to-10V. Round or square plate canopy options are offered. • archlit.com
Elliptipar Ensconce S43X, The Lighting Quotient • This family of high-lumen indoor (with damp location option) asymmetric LED uplights is designed to replace 250W to 1,000W conventional source products. Precision optics create a distribution ideal for illuminating surfaces at airports, transit centers, pools, field houses, and auditoriums with even washes of uniformly colored light. Four models range from 9" to 33" wide, for wall or pendant (single, back-to-back, or side-to-side) mounting. • thelightingquotient.com
Transparency, Nordeon USA • Designed for office applications, this slim profile fixture—it’s just 0.9" deep—uses edge lighting to achieve the illumination effect. When turned off, the luminaire is completely transparent. Available in 40W, 54W, and 67W at 3000K and 4000K, the fixture measures 47.1" by 19.6" and can serve multiple workstations. Zero-to-10V dimming. • nordeon-usa.com

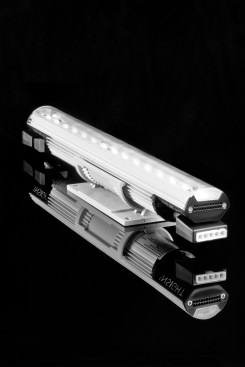

Pilot PCM, Insight Lighting • This AC plug-and-play cove and accent lighting is offered in standard white light options of 2700K, 3000K, 3500K, and 4000K at a CRI of 82 standard (90 CRI optional) and static colors (red, green, blue, and amber) in 3.5W, 5W, 7W, 10W, or 13W per foot. The luminaire is available in 1' and 4' modules and has a 120-degree beam spread. Aluminum extrusion with molded endcaps, powdercoat finish white. • insightlighting.com

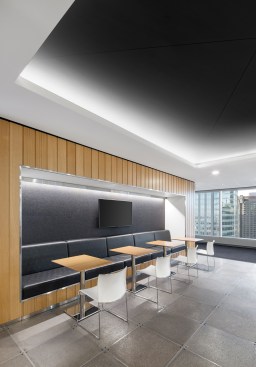

Lumencove Nano 2.0, Lumenpulse Group • Lumencove Nano 2.0 features Lumendrive, a patented Lumenpulse technology, which drives LEDs without requiring a power supply or driver. The fixture delivers up to 113 lm/W and offers a unique 10-year warranty. • lumenpulsegroup.com

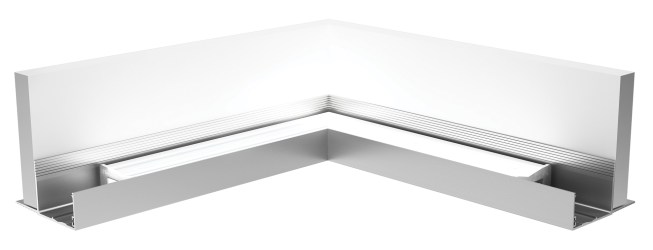

Compose, i2 Systems • An indirect, code-compliant cove LED lighting system for open-plan workplaces. The cove measures 2.5" wide by 1.4" tall and comes in 1', 18", and 4' lengths. It projects light across the ceiling at close to 100 lm/W and avoid hotspots and uneven illumination when mounted up to 6" from the ceiling. This allows the system to deliver 40 footcandles of light at 0.7W per square foot in an open plan and 0.5W per square foot in private offices. Zero-to-10V dimmable. • i2systems.com
Metalux Linear WaveStream, Eaton • This linear fixture with a low profile measures less than 3.2". It is available in 4' and 8' length at 3500K, 4000K, and 5000K and can be configured as a single fixture or in a continuous row for surface or suspended applications. It uses WaveStream technology with AccuAim optics. Zero-to-10V dimming is standard. California Title 24 compliant. Integral sensor options are available. • eaton.com
Symmetry, Visa Lighting • This luminaire is offered in three versions: patient room over bed, general use, and tunable. The tunable version is available in a white range of 1650K to 8000K (plus full gamut of saturated colors). Dimmable via zero-to-10V or DMX-RDM to 1 percent. It can be installed in drywall ceilings and T-bar grid systems. The LED power supplies are located within the housing and accessible from below the ceiling. Chicago plenum rating option is available. • visalighting.com
Stream Oval Linear, Prudential • Inspired by forms found in nature, the Stream Oval linear luminaire has a curved-edge profile. It uses a 98 percent high diffuser reflector film to provide a uniform line of light. It measures 5.5" by 3" and is available in 4' and 8' lengths at 3000K, 3500K, and 4000K. It uses 13W per linear foot at standard output. Light distribution can be specified as down only, up and downlight, or symmetric glow. Finish options are textured matte white, premium or custom color. • prulite.com
Volumetric Troffer, Sylvania LEDVANCE Luminaires • An LED replacement for fluorescent ceiling fixtures, these LED troffers are offered in two sizes—2 by 2 and 2 by 4—from 25W to 42W at 3500K and 4000K with a CRI of 80-plus. The fixture has a single white diffuse polycarbonate curved lens and is zero-to-10V dimmable down to 1 percent. • sylvania.com
Stick LED, Delray Lighting • The Stick LED’s directional lamp rotates 270 degrees, in 15-degree increments, to aim light where needed. Available in 2', 3', and 4' lengths in 15W and 25W at 3000K, 3500K, and 4000K, the fixture can be pendant or surface mounted, in stand-alone and/or continuous row configurations. • delraylighting.com
