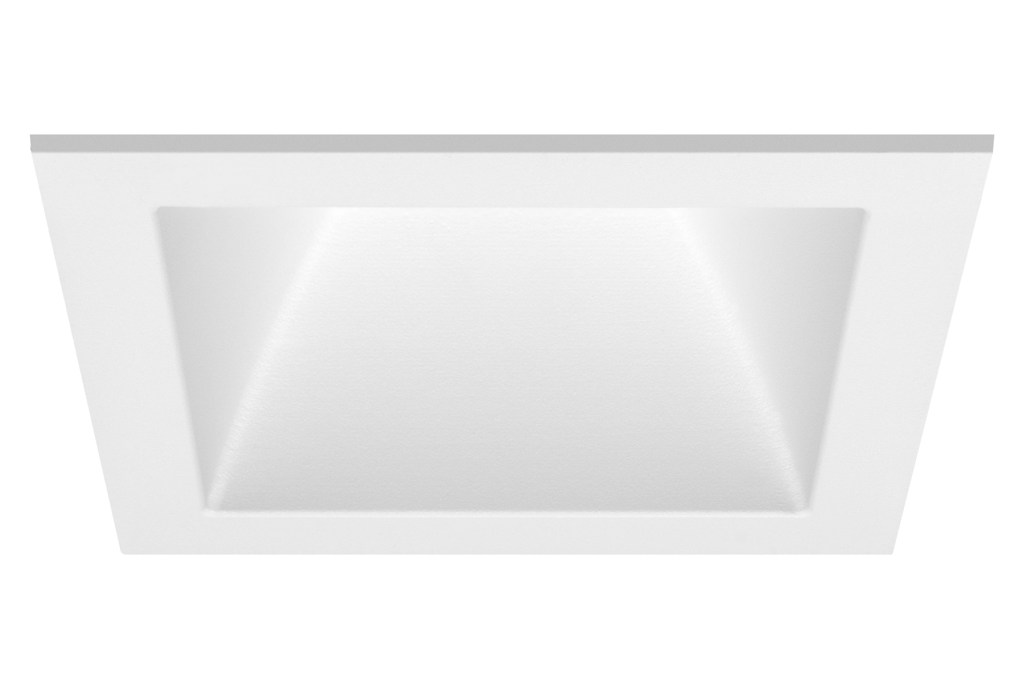

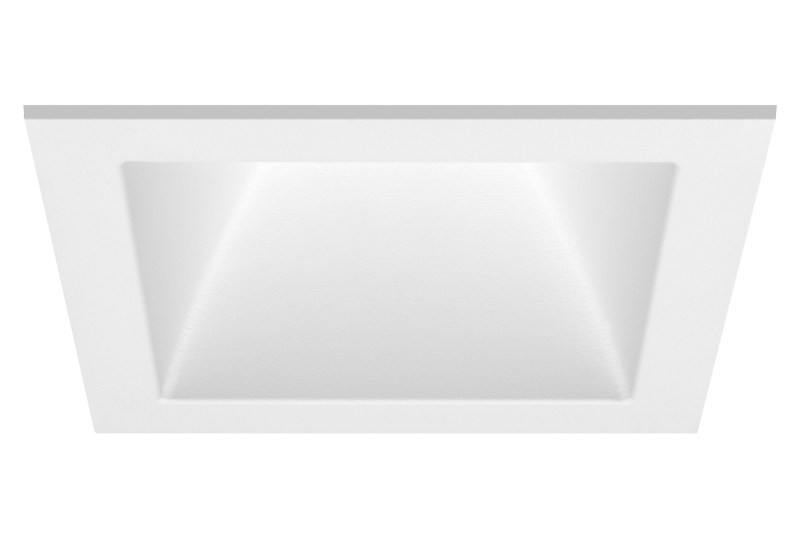

ID+ 3.5”, Focal Point • A new addition to the company’s ID+ family of downlights, the 3.5” (aperture) fixture is designed specifically for shallow plenums; it’s housing is just 2.64” tall. Available in round or square (shown) apertures, the luminaire can be switched between wallwash and downlight (narrow flood, flood, and wide flood) functions post-installation. The fixture has a standard output of 700 to 1500 lumens and incorporates Focal Point’s RightLight technology, which ensures “standard delivered lumen outputs that stay consistent as technology upgrades occur.” It is available in 2700K, 3000K, 3500K, ad 4000K at 80-plus CRI or 90-plus CRI. The luminaire also features brightness control with a 50-degree cut-off trim for optimal visual comfort or a 60-degree cut-off trim for very shallow ceiling conditions. Die-cast trims are attached with a twist and lock feature. Finish options are black, white, clear diffuse, and warm diffuse. • focalpointlights.com

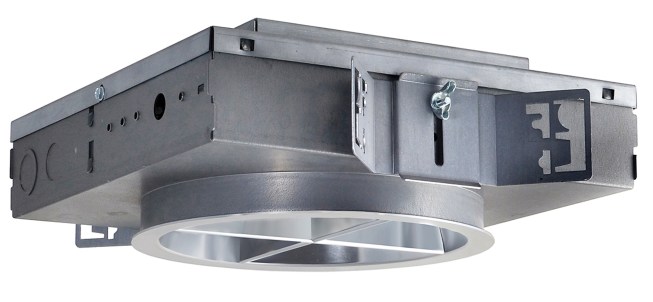

Baflux LED/7, Edison Price • The Baflux LED/7 features a unique parabolic reflector and cross-baffle assembly for shallow depth installations; the recess depth is just 4-1/8”. The precise optical control and low aperture brightness with shielding angles no less than 35 degrees makes this 7” aperture LED downlight suitable for offices, lobbies, corridors, restrooms, and public areas. The luminaire uses four Citizen COB linear LED arrays and is available in 3000K and 3500K with a CRI of 80 or 90. It has a lumen output range of 1,100 to 1,800, depending on the wattage specified (15W, 20W, or 21W). The fixture uses a standard driver for 0 to 10V dimming. The reflector assemblies are available in clear, natural aluminum in three finish options: semi-specular, slight diffuse, and fully diffuse. Additional reflector options are also available in champagne gold, white, and black. Damp location listed, the housing measures 4-1/8” deep by 10-5/8” wide. • epl.com
400-Series Recessed LED, No. 8 Lighting • The new 400 Series downlight offers a compact design—5-1/2” tall--and tool-free aiming and adjustability for accent, wallwash, and general lighting applications. Designed for both existing and new construction, the Title 24-compliant luminaire installs from below the finished ceiling. It is available in 3000K at a CRI of 90-plus and has a light output of 800-900 lumens at 15W. (It is also available in 2400K, 2700K, and 3500K options.) The fixture comes with a 15-degree, 25-degree, or 40-degree beam spread, and has a vertical aiming angle range of 0 to 35 degrees and a 360-degree horizontal adjustment. The luminaire comes with a number of trim options including flangeless and flanged, square or round, and white or oil-rubbed bronze trim finishes. • 8lighting.com
