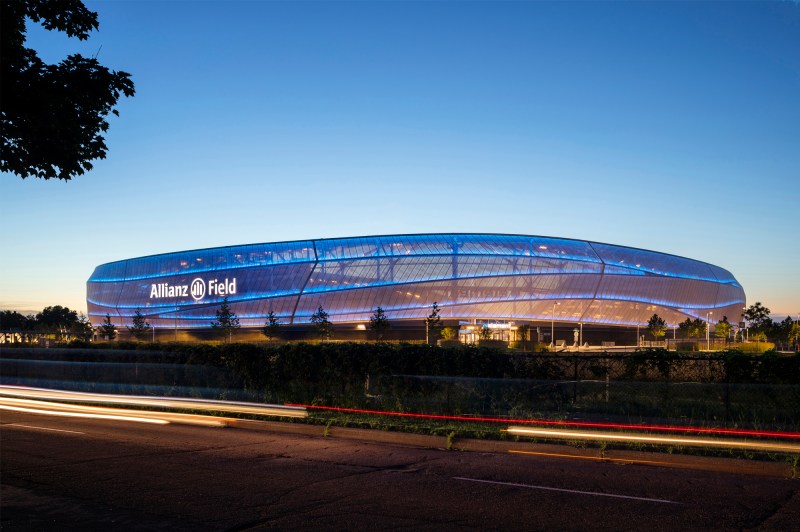

The lighting controls enable a variety of static and dynamic effects. Lights on each structural tube can operate independently of the others.
James Ewing The lighting controls enable a variety of static and dynamic effects. Lights on each structural tube can operate independently of the others.

“Because people inside the stadium can also see the changing light on the exterior, they can enjoy the experience in a different way.” —Juror Raymond Barberousse, Studio PGRB

When tasked with creating a dynamic facade for Allianz Field, a Major League Soccer stadium in Minneapolis, ME Engineers’ lighting design studio Illume aimed to recreate the aurora borealis, with blues, greens, and purples flowing across the stadium’s PTFE skin. The lighting control system can replicate the team’s colors or be customized for holidays, special events, and the excitement and energy of the fans inside and outside the stadium.

To create the dramatic effect, the design deploys an incrementally brighter segment of light at each structural member across the stadium’s curved skin. The design solution works for all façade conditions, including open corner entrances and areas tight to the structure.

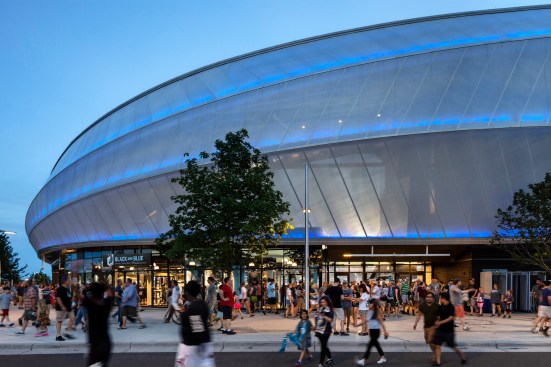

Luminaires behind the PTFE skin create a simple glow from within and provide a visually comfortable, low glare approach.
James Ewing Luminaires behind the PTFE skin create a simple glow from within and provide a visually comfortable, low glare approach.

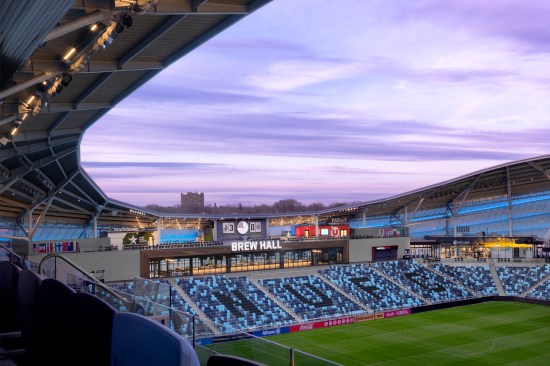

The effect is brighter inside the stadium, which creates an engaging fan experience. Custom shields and precise aiming prevent any direct view of the fixtures themselves.
James Ewing The effect is brighter inside the stadium, which creates an engaging fan experience. Custom shields and precise aiming prevent any direct view of the fixtures themselves.

The team grouped the control gear at key points at the stadium’s exterior rather than throughout the stadium, which made the initial lighting setup easier and will help stadium operations staff identify and address issues.

With more than 6,100 linear feet of fixtures, the lighting design was considerable and prioritized during the construction of the stadium, designed by Populous. Still, to reduce cost and wattage usage, the team determined through a mock-up that increasing the gap between adjacent structural elements by 4 inches top would be imperceptible and save almost 20% in cost and energy consumption. Lighting scenes are programmed to start just after dusk and not stay on all night.

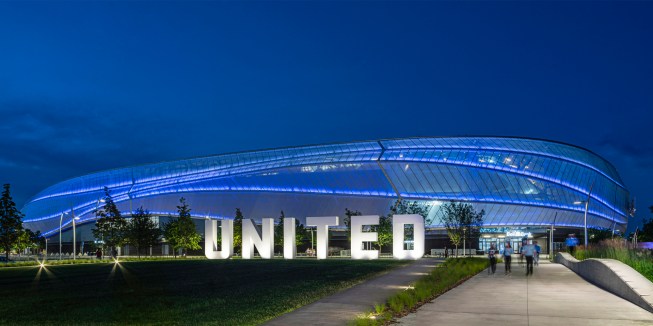

In-grade uplights with a wide wall wash distribution illuminate the UNITED sculpture, a part of the overall façade composition.
James Ewing In-grade uplights with a wide wall wash distribution illuminate the UNITED sculpture, a part of the overall façade composition.

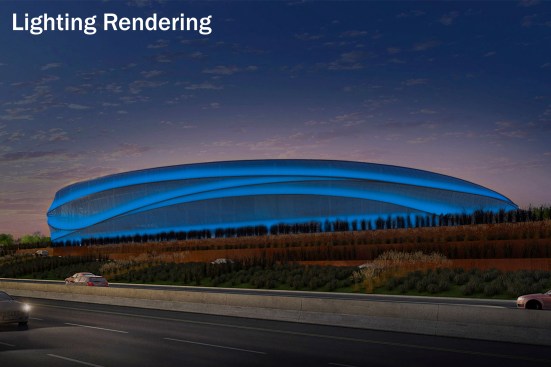

Renderings and animations helped convey design intent and programming possibilities to the client and ownership group.
courtesy Illume and Populous Renderings and animations helped convey design intent and programming possibilities to the client and ownership group.

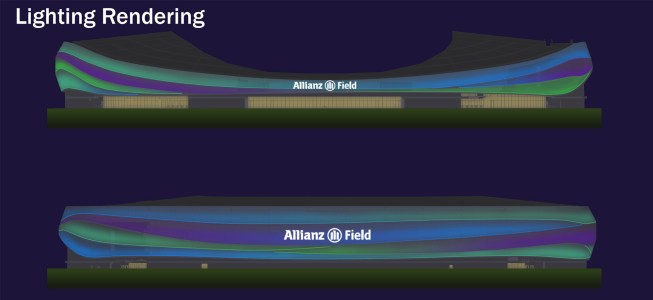

Sample lighting animations help determine the final programming scenes.
courtesy Illume and Populous Sample lighting animations help determine the final programming scenes.

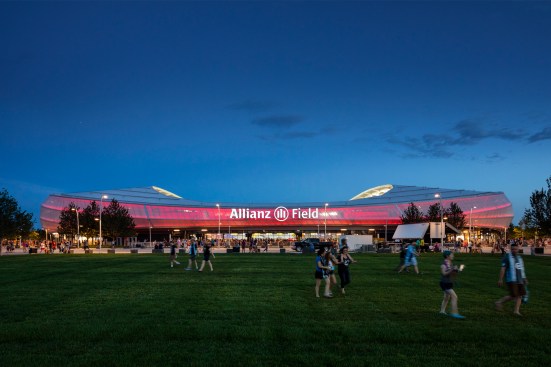

Installing more than 1 mile of fixtures and ensuring control box locations were accessible were among the project's toughest challenges.
James Ewing Installing more than 1 mile of fixtures and ensuring control box locations were accessible were among the project's toughest challenges.

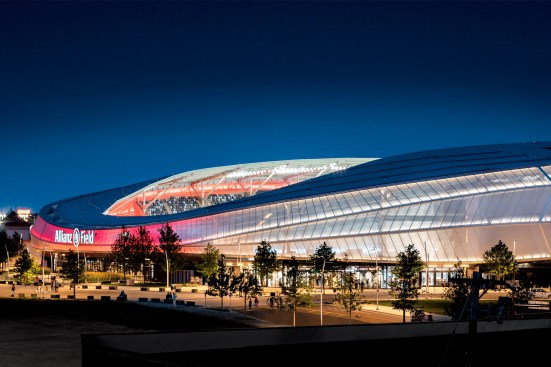

The canopy captures the lighting at top, helping to preserve the dark sky.
James Ewing The canopy captures the lighting at top, helping to preserve the dark sky.

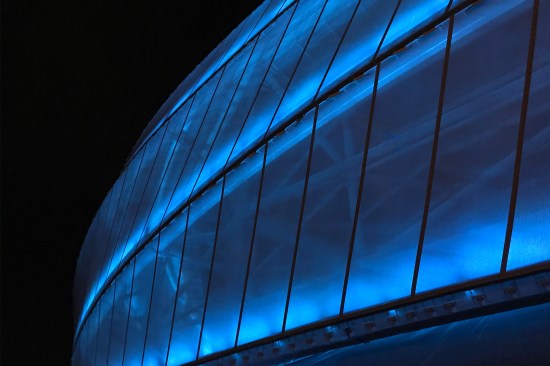

Fixtures are integrated into the architecture of the building. Custom shields block direct view of diodes and carefully manage the light spill onto the structure.
James Ewing Fixtures are integrated into the architecture of the building. Custom shields block direct view of diodes and carefully manage the light spill onto the structure.

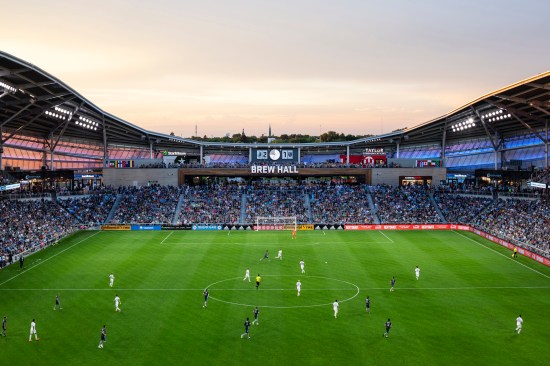

Each fixture has a resolution controllable to the foot. Time-clock control and non-game scenes help save energy.
James Ewing Each fixture has a resolution controllable to the foot. Time-clock control and non-game scenes help save energy.
