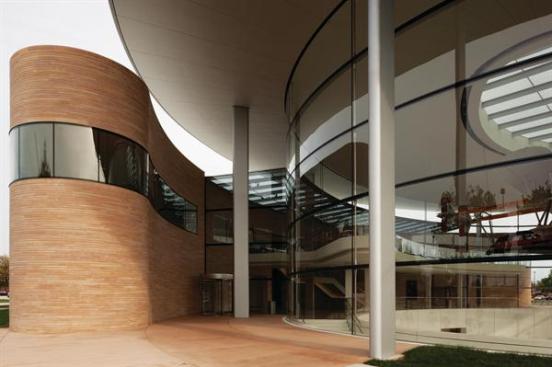

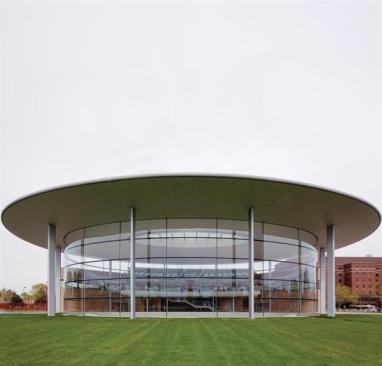

![Foster Partners effectively designed two buildings in one, each having its own name and material properties: the glassy Fortaleza Hall and the predominantly masonry Commons. Together, they add 60,000 square feet of employee-focused space to the campus. Fortaleza Hall's minimal form consists of an elliptical glazed shell and overhanging roof. The structure is supported by 10 steel columns, made from custom-designed hollow steel sections. Inside each column is a downspout, allowing rainwater that collects on the roof to run off without requiring the clutter of an exposed gutter system. And despite conventional wisdom that would dictate putting as much glass as possible between inside and out (the average January low temperature in Racine is 13 degrees), each of the 85 curved panes is single-glazed laminated glass. "We were very keen to avoid distortion in the glass, which you get with toughened glass," partner-in-charge Giles Robinson says. "It's regular annealed glass, but laminated to deal with any potential failure, and that system introduced onto the framing system produced what we consider the most elegant solution." Each panel is 7-1/2 feet tall and 16 feet wide. The Commons is a much more solid-looking building. Its brick mass?incorporating employee amenities such as eateries, a wellness center, a bank, a concierge, and a company store?curves around to envelop the east side of the glass pavilion. In contrast to Fortaleza Hall's intentional transparency, the Commons is constructed with self-supporting masonry walls made out of Kasota stone from the same quarry that Frank Lloyd Wright used for the copings of his Administration Building. "I think we were very conscious that we didn't want to mimic or ape the Wright building," Robinson adds, "but we did introduce the bull-nose curves on the end of The Commons that have a resonance to [Wright's] architecture."](https://cdnassets.hw.net/dims4/GG/22a788f/2147483647/thumbnail/180x125%3E/quality/90/?url=https%3A%2F%2Fcdnassets.hw.net%2F26%2F66%2F32b280d44bee82bdba20efd73b0f%2F0fa4fc0c-a2c3-454b-83df-fdc5633c05d4.jpg)

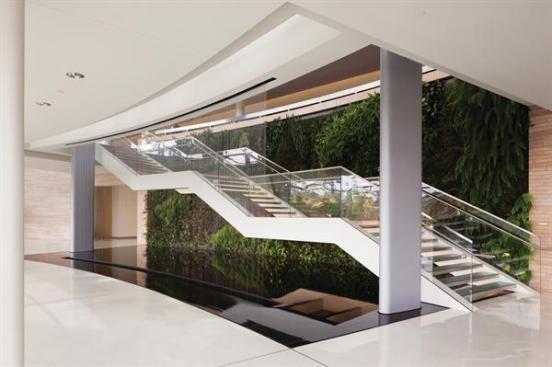

![A green wall was designed as a backdrop for the stair linking the ground floor and the upper level. Foster's office worked in conjunction with Paris-based Patrick Blanc, the mastermind behind such installations as the vegetated fa?ade of Jean Nouvel's Mus?e des Arts Premiers Quai Branly in Paris. The wall is constructed with a series of horizontal pipes placed on the surface of the wall. These pipes are covered with a felt that has pockets cut in it, into which the plants were placed. The wall features 2,500 plants from 79 different species that are native to Central and South America, and tries to recreate the sense of a lush Brazilian landscape. "The reason we wanted it in the space is [that] it makes the space living and organic," Semrau says. "It's such a bright splash of color; it's almost like a canvas." In front staircase is a waterfall, with water emerging from a recessed slot in the ceiling and falling 14 feet to a reflecting pool on the floor. "It almost sounds like a light rain," Semrau says. "It's right below where you sit in the [balcony dining area], and it is a wonderful white noise."](https://cdnassets.hw.net/dims4/GG/ad6324c/2147483647/thumbnail/180x125%3E/quality/90/?url=https%3A%2F%2Fcdnassets.hw.net%2F03%2F14%2F5e8c2ea94fd2be50d7d60645f4b2%2Ffd37ca60-1818-44ae-82f1-a1cc17997f7a.jpg)

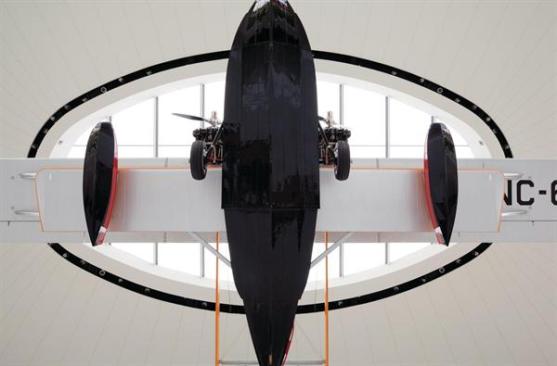

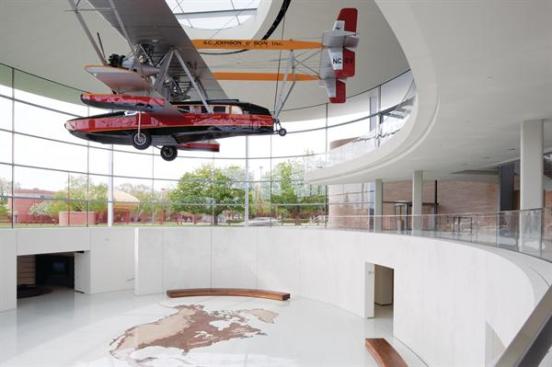

![Suspended from the ceiling, the Carna?ba is the dominant visual element of Fortaleza Hall. Despite its size, the plane actually puts less stress on the roof structure than winter snow will. Still, extra steel members were put in place and tied into the roofs main truss system, and a mechanism was installed to allow the plane to be raised and lowered at will. Most employees enter the new building on the lower level, emerging from a system of tunnels that allow them to move between campus buildings during the harsh Wisconsin winters. "The experience the staff have when they come out of the tunnel and into that main space is really opening up to the plane [and] the sky," Robinson says. "It's a really strong sense of light that draws you up to the ground level." And when they do emerge, their path to one of the staircases leading to ground level takes them over a floor mosaic of the western hemisphere, made from four different types of end-grain FSC-certified wood.](https://cdnassets.hw.net/dims4/GG/225539b/2147483647/thumbnail/180x125%3E/quality/90/?url=https%3A%2F%2Fcdnassets.hw.net%2F7c%2Fc6%2F61b053b44003bc4a348e3a042664%2F0abda090-f8a9-49cf-8a09-04290ba91ca6.jpg)

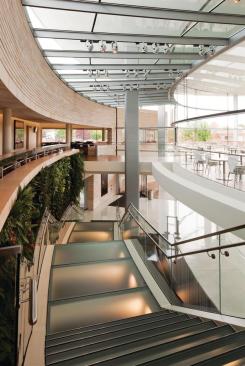

![The staircase in front of the green wall leads to the upper-level balcony, on which the building's four eateries are located. At the base of the stairs is the southern ground-level entrance, which was put in as an alternative to the tunnels. "I think Fortaleza Hall is very much about encouraging the staff not to go down into tunnels, but to circulate around campus at ground level," Robinson says. "I think [the] staff have always tended to move about below ground both in the winter, when it's a necessity, but also in the summer. I think it's force of habit." Another entry, on the northern end of the hall, accommodates visitors coming from the Golden Rondelle, which has been turned into the tourism center of the complex.](https://cdnassets.hw.net/dims4/GG/5f22198/2147483647/thumbnail/180x125%3E/quality/90/?url=https%3A%2F%2Fcdnassets.hw.net%2Ffa%2F66%2F2d6b743d4f6eb302ab0f555bf8cd%2F9decb127-79bb-4a41-8567-b8c4a51ba2c5.jpg)
Project Details
- Project Name
- Fortaleza Hall
- Location
-
Racine ,WI ,United States
- Architect
- Foster + Partners
- Client/Owner
- SC Johnson
- Size
- 60,000 sq. feet
- Shared by
- Hanley Wood
- Consultants
-
Electrical Engineer: Cosentini Associates,null: Cosentini Associates,Plumbing Engineer: Cosentini Associates,Structural Engineer: Buro Happold
- Project Status
- Built
Project Description
The Fortaleza Hall in Racine, WIsconsin was built as a memorial for Sam Johnson, former CEO of the SC Johnson company. It was built around a replica of a 1930s twin-engine Sikorsky S-38 amphibious plane, and according to Giles Robinson (partner-in-charge of the project), the building was to be a "elegant and simple backdrop to the complexity of the plane."
To read more about this projectt: http://www.architectmagazine.com/cultural-projects/fortaleza-hall.aspx
