Project Details
- Project Name
- Northstar Dermatology
- Location
- Texas
- Architect
- AN.ONYMOUS
- Project Types
- Office
- Project Scope
- New Construction
- Size
- 9,000 sq. feet
- Year Completed
- 2022
- Project Status
- Built
This project was selected as a Merit winner in ARCHITECT's 2024 Architecture & Interiors Awards, Architecture: Offices category.
“They’re doing their own thing here and creating something that’s singularly unique.” –Juror John Frane

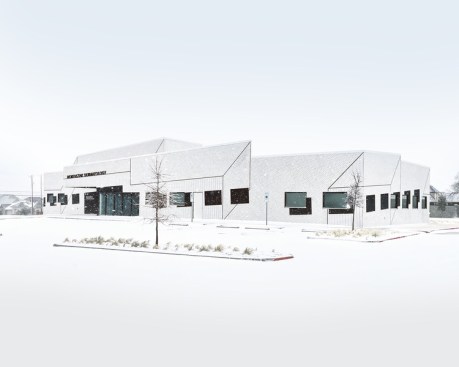

AN.ONYMOUS, led by Iman Ansari and Marta Nowak, designed the 24,000-square-foot Northstar Medical Campus near Fort Worth, TX. The campus, which spans three acres, includes three single-story medical office buildings centered around a public plaza and landscaped grounds. The primary building, a 9,000-square-foot office for Northstar Dermatology, was completed in January 2022. The remaining two buildings are expected to be finished by 2024.

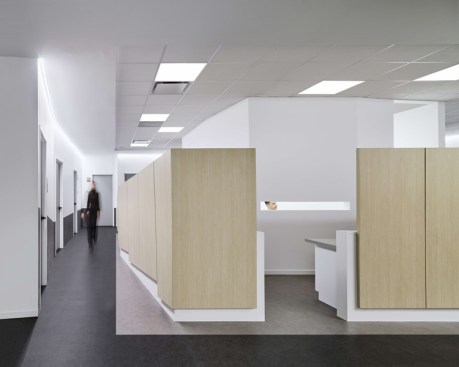

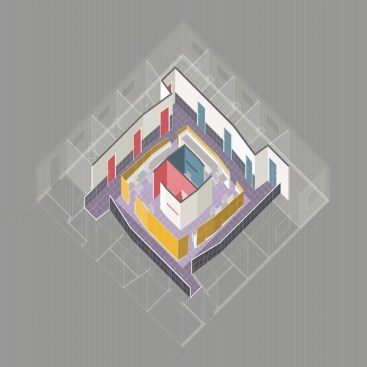

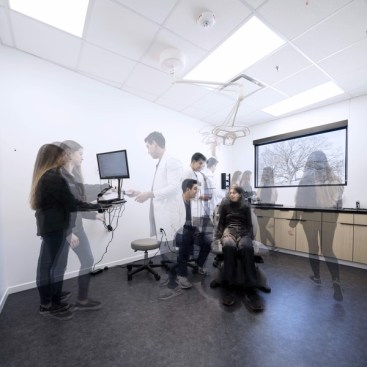

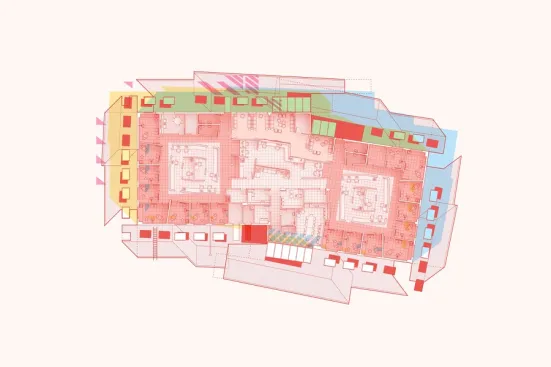

The project challenges traditional architectural design and medical office planning through the innovative use of simulation tools and representation techniques. These tools allowed AN.ONYMOUS to create a dynamic environment with varied visual and physical interactions. The floor plan of Northstar Dermatology features two overlapping rectangular areas, each housing clinical zones with doctors’ offices, nurse stations, and examination rooms. The subtle rotation of these areas forms irregular octagonal volumes, facilitating circulation and communication around the nurse stations. This rotational design is mirrored in the other campus buildings, creating a cohesive interplay around the central plaza.
The innovative design process used agent-based computer simulations to model the movement of healthcare users, optimizing the floor plan for efficiency and reducing obstructions. The resulting layout enhances the interaction and movement within the space, aligning with daily activity patterns.

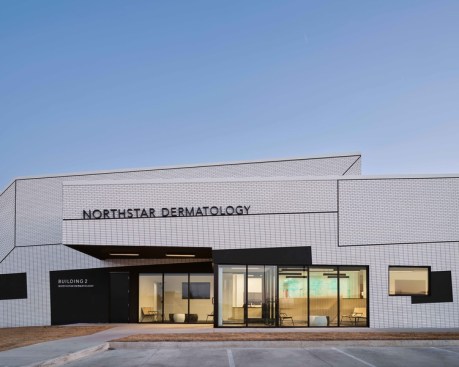

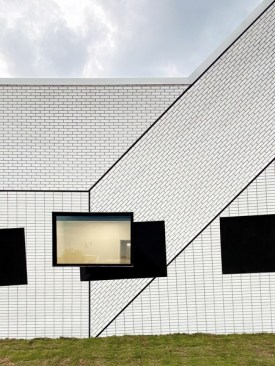

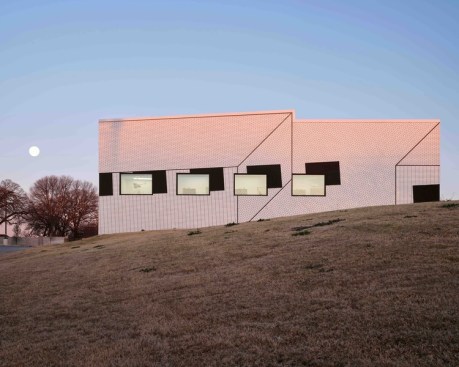

The project also incorporates a unique approach to materials and construction. The façade uses a thin brick system, complying with local building requirements while offering a modern interpretation of traditional masonry. The glazed black and white brick veneer creates varied visual effects throughout the day, while the interior finishes use different flooring materials to distinguish between public and private areas, aiding in wayfinding.

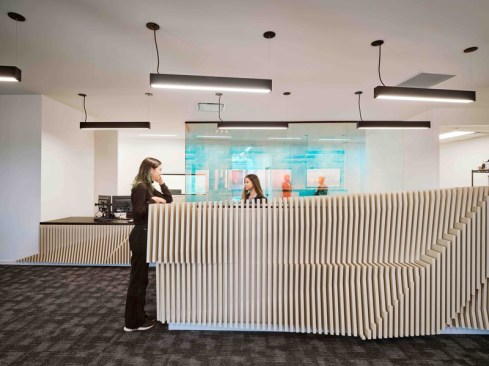

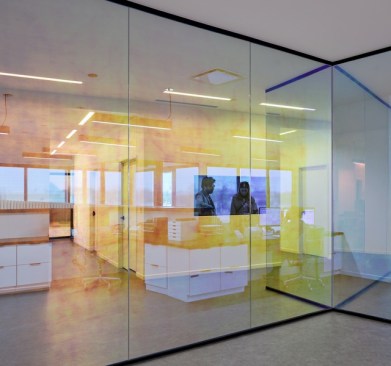

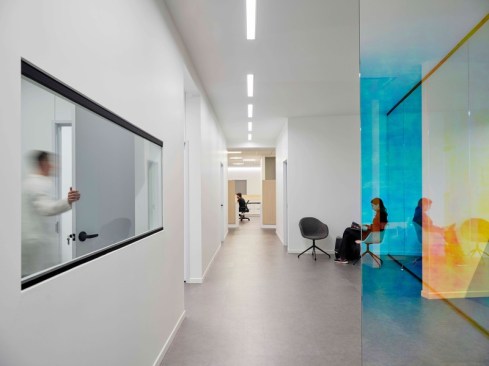

The central staff area features a custom white oak reception desk with CNC-cut panels, extending this material into the nurse stations and examination rooms. Glass dividers with dichroic film separate public and private areas, ensuring both connection and privacy.
Northstar Dermatology reimagines the design and function of medical facilities, using advanced simulation tools and modern materials to create a contemporary, efficient, and visually engaging space.
Project: Northstar DermatologyLocation: North Richland Hills, Texas
Client/Owner: Northstar Dermatology
Architect:
Design Architect: AN.ONYMOUS
Team members: Iman Ansari, Associate AIA, Marta Nowak, AIA, Gesthimani Roumpani, Maya Chandler, Chun-hua Chiu, Luiza De Souza, Tingji Gavin Guo, Yanrong Yan, Lexi Arnett-Sutherland, Kaitlin Khammanh. Initial schematic and design development was completed by AN.ONYMOUS in collaboration with Spinagu and included the following additional team members: Maxi Spina, Wesley Evans, Lynn Hahm, Andrew Depew, Jiachen Wei, Wei Zou.
Architect of Record: Guide Architecture
Construction Start Date: October 2020
Construction End Date: January 2022
Interior Designer: AN.ONYMOUS
Mechanical Engineer: Choice Engineering
Structural Engineer: Armstrong Douglass
Electrical Engineer: Choice Engineering
Civil Engineer: Clay Moore Engineering
Construction Manager: Z Constructors
General Contractor: Z Constructors
Landscape Architect: Belle Firma
Lighting Designer: AN.ONYMOUS
Any other consultants, with their roles:
Size in Square Feet: 9,000
Cost: $7,500,000
MATERIALS AND SOURCES:
Carpet: ALADDIN Shadow (989) Carpet
Exterior Wall Systems: Thin Brick and EIFS
Fabrics and Finishes: ARBORITE, Essential Nordic Wood (W481) Laminate
Flooring: TARKETT, Niko (0620) Vinyl Tile; TARKETT, Costa (0616) Vinyl Tile,
Furniture: BILDU Modular Seating
Lighting: MOD
Masonry and Stone: Acme Brick Co.
Paints and Finishes: BEHR Ultra Pure White (1850)
Structural System: Steel Framing
Windows and Doors: ARBORITE, Galena (S576) Laminate
