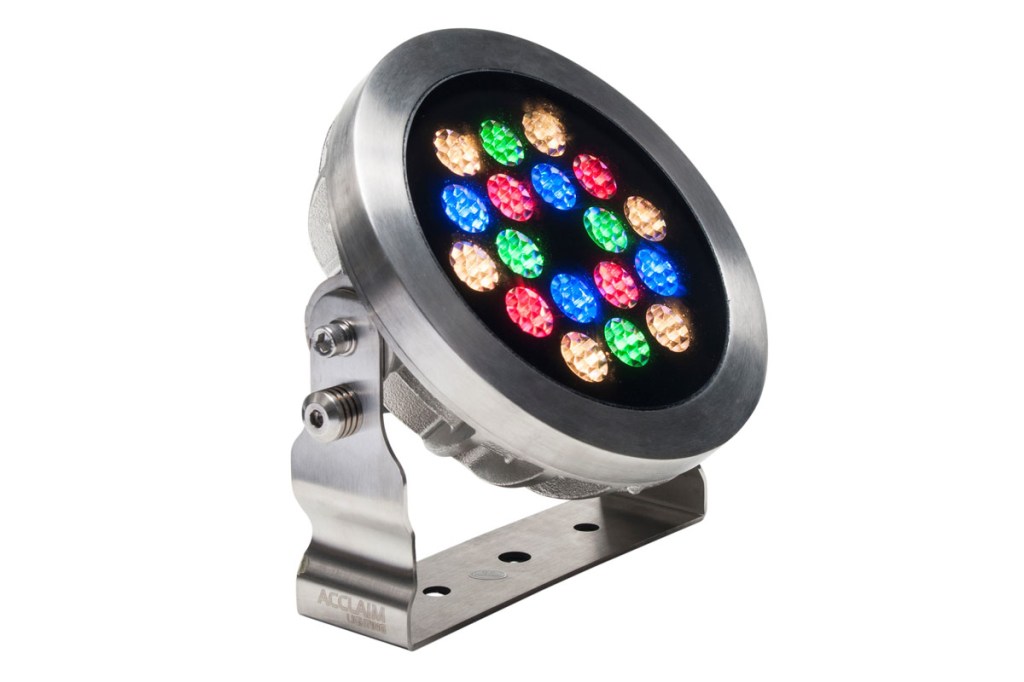

Aqua Drum, Acclaim LightingThis series of high output LED flood luminaires is submersible under water up to 20’ and is suitable for fountain, pond, landscape, and façade applications. Aqua Drum comes in three sizes: the 8W EO measures 7” in diameter, the 18W SO measures 8.6” in diameter, and the 36W HO measures 8.77” in diameter. The fixtures are available in 2700K, 3000K, 3500K, 4000K, and RGBA. EO, SO, and HO can deliver up to 700, 1,600, and 3,259 lumens, respectively. Aqua Drum comes with five beam spread options including 10 x 10, 25 x 25, and 10 x 35. The luminaire has a marine-grade stainless steel housing and is IK08 walkover-rated.

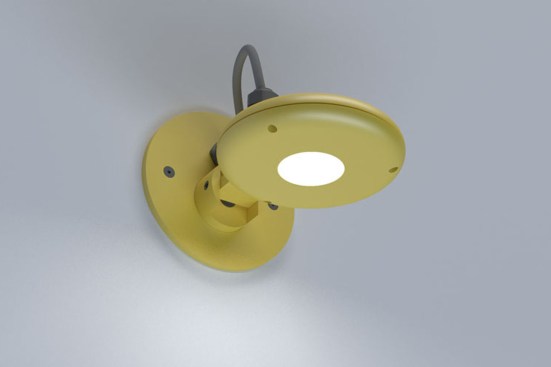

Rondo, ArchlitThis adjustable outdoor luminaire is suitable for wall- or ceiling-mount applications as well as path lighting. The 8W fixture comes in 2700K or 3000K and delivers up to 800 lumens. Rondo’s fixture head measures 5” in diameter and is 1” deep. The luminaire comes in standard finishes of white and black with custom colors also available. Rondo runs on 120V and is TRIAC-dimmable only.

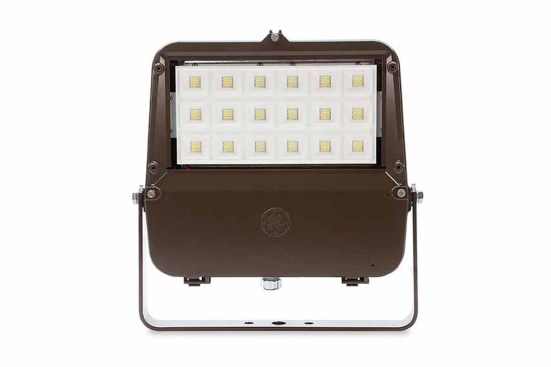

GE Evolve LED Medium Output Floor and Spotlight (EFM1), Current Powered by GE • Designed to replace up to 250W high-pressure sodium and 250W to 400W metal halide floodlights, this luminaire is suitable for large applications such as building façade, roadway, and billboard signage illumination. Available in 3000K, 4000K, and 5000K with a CRI of 70, EFM1 delivers up to 20,000 lumens. The fixture comes with six beam spread options, including a 20-degree spot, 7x7, and Type II. Mounting options include trunnion, knuckle slip-fitter, and knuckle wall mount. The UL/cUL-listed fixture is fitted with impact-resistant, tempered flat glass, which also minimizes the accumulation of dirt. Dimming options include zero-to-10V and DALI.

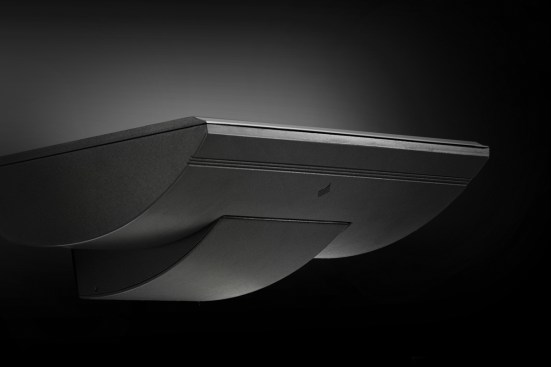

Wall Director 2.0, Kim Lighting • This new LED version of Kim Lighting’s Wall Director features a smaller profile while maintaining its predecessor’s architectural shape. Available in small (13” wide by 4.3” deep) or medium sizes (18” wide by 5.7” deep), the fixtures are fitted with 24 and 48 LED modules, respectively. The 30W, 40W, 60W, or 75W luminaire comes in 3000K, 4000K, and 5000K at a CRI of 70 or 80, and delivers a range of 3,000 to 17,000 lumens. Wall Director 2.0 can be mounted upwards or downwards and can be tilted from -5 degrees to +10 degrees. Beam spread options include wall graze, spot, and wide-row diffused. The fixture comes in eight finishes, including titanium, black, and graphite.

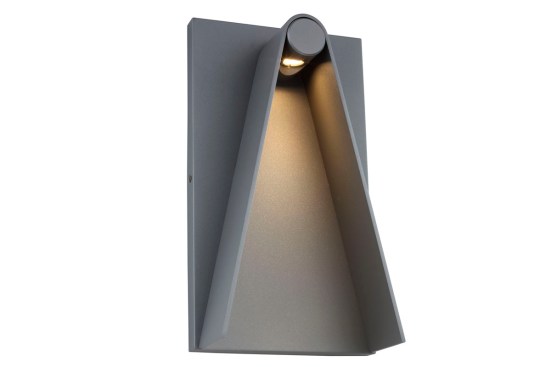

Elpha 14 Outdoor, LBL LightingThis wet-rated and ADA-compliant outdoor wall sconce for residential and commercial applications directs light downward through an open triangular-shaped housing. The 9.5W luminaire comes in 3000K with a CRI of 90 and delivers 331 lumens. The fixture measures 7.5” wide by 13.4” tall and is 3.7” deep. Finish options include bronze and charcoal. Elpha runs on 120V or 277V.

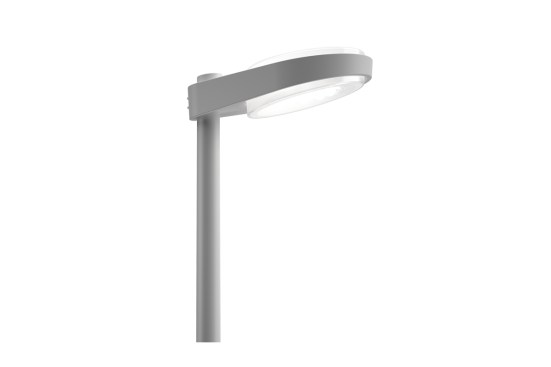

Capsule, Louis Poulsen • This pole-mounted outdoor luminaire, was developed for Louis Poulsen by Carsten Fischer, lead design architect at Danish architecture firm Henning Larsen. The 20W or 40W fixture is available in 3000K and 4000K, with high- or low-output options. The luminaire features a die-cast aluminum-housing suitable for wet locations. The fixture head measures 19.2" in diameter by 6.9" tall and can mounted to a 12'-, 14'-, or 16'-tall aluminum pole. Capsule is zero-to-10V dimmable.

Courtesy Xin Zhao

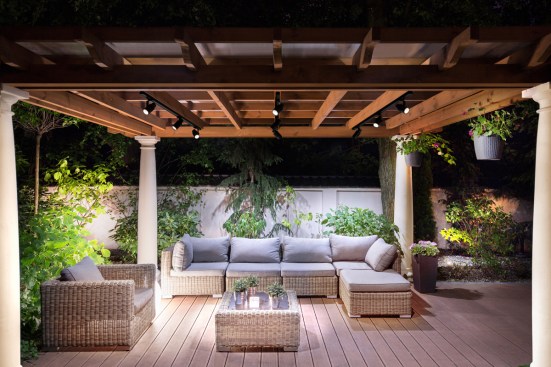

Outdoor Track, PureEdge Lighting • An option for tracklighting in outdoor environments, the system is made up of Pure Edge’s Exterior Tracks and Micro Surface trackheads, which can be fitted with Soraa’s Vivid LED MR16 modules or 12V halogen MR16 lamps up to 50W. The 7.5W Soraa lamps come in 2700K or 3000K with a CRI of 95, and deliver up to 435 lumens, depending on the color temperature. Beam spread option are 10, 25, or 36 degrees. The Micro Surface trackheads measure 2.35” in diameter by 3.5” long, and can be rotated up to 360 degrees and tilted 180 degrees. Offered in white or black finishes.

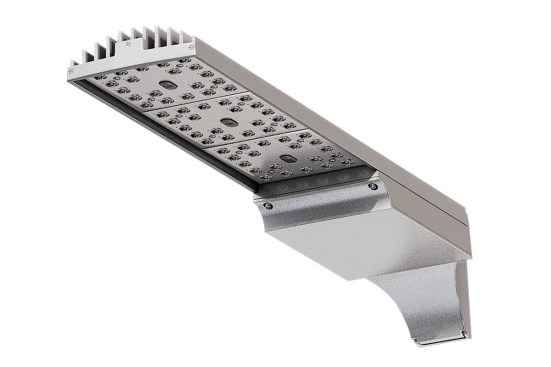

Linear LXT Wall Mounts, U.S. Architectural Lighting • The outdoor luminaire comes in LXT2 and LXT3 models that have 90-degree field-rotatable and replaceable LEDs and lenses. LXT2 houses 40 LEDs and measures 28” long by 8.25” wide; LXT3 houses 120 LEDs and measures 35” long by 8.25” wide. The fixtures are available in 3000K, 4000K, and 5000K. Optical panels enhance forward throw and reduce backlight through micro-reflectors behind each LED. Five standard finishes are offered, including white, dark bronze, and green.

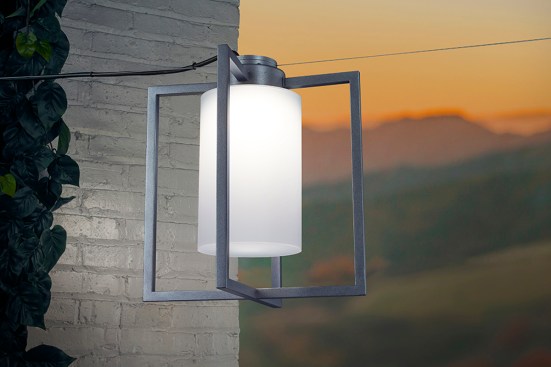

Laterna Catenary, Visa LightingThis lantern-style luminaire is suitable for outdoor applications such as parks, event venues, and boardwalks, and can be specified as a suspended or direct-mount catenary. The 18W or 29W fixture is available in 3000K, 3500K, and 4000K with a range of 1,500 to 3,000 delivered lumens. Laterna’s outer metal cage measures 17.5” wide by 19” tall, while its cylindrical diffuser is 12.25” tall. The metal cage comes in 16 powdercoated finishes including agate gray, cove blue, and jet black; the diffuser is offered in matte white or frosted translucent options. The fixture is IP65-rated, UV-stable, and ETL-listed for wet locations.

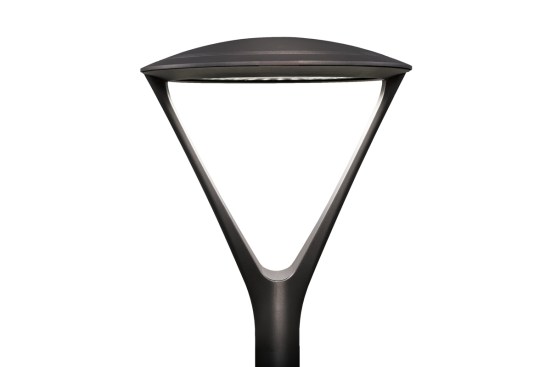

Ouro 28” Post Top, Kim Lighting • This post-top luminaire is suitable for illuminating building perimeters, pathways, parking lots, and drive lanes. Available in 3000K, 4000K, and 5000K with a CRI of 70, 80, or 90, depending on color temperature, Ouro delivers up to 35,000 lumens and has nine beam spread options. The fixture head measures 28” in diameter by 33.4” tall and can be mounted onto 3”-, 4”-, and 5”-wide round poles. Control accessories compatible with Ouro include, SiteSync Wireless Bridge Node, Wattstopper configuration tool, and wiSCAPE external fixture module. The fixture is IP66-rated, Dark Sky, and California Title 24/ASHRAE–compliant. Offered in seven standard finish options with custom colors also available.

Courtesy Sebastien Racicot

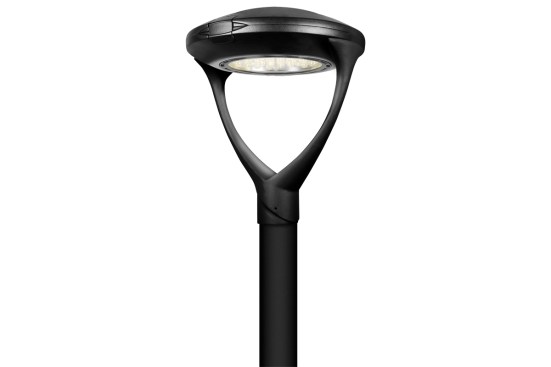

Pure 100, Lumenpulse • Suitable for urban outdoor illumination applications, Pure 100 features Lumenpulse’s proprietary light engine Lumencentro, which uses Lumencool technology to regulate temperature. The fixture has six mounting options: wall mounted, variable height mounting on pole, single pole-top, double pole-top, vertical cure pole-top, and side mounding adaptor. Available in 2200K, 2700K, 3000K, 3500K, 4000K, and 5700K with a CRI of 70-plus or 80-plus. The luminaire comes with a clearsite or softsite lens and delivers a range of 4,000 to 20,000 lumens for the former and 3,000 to 7,000 lumens for the latter. The fixture is offered in eight beam spread options, including Type II, Type III, and Type IV. Eight Sandtex finishes are available, including silver, bronze, and green. Zero-to-10V dimmable.

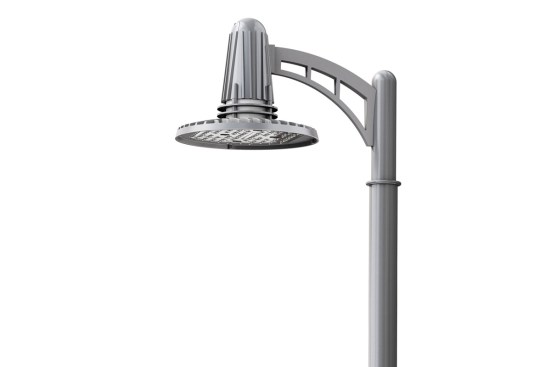

Skyliner, U.S. Architectural LightingSuitable for site and area lighting applications, this curvilinear LED luminaire features a panel LED optical system that eliminates uplight and minimizes spill light. The luminaire can be specified as a wall mount or a single, dual, triple, or quad head with optional angled, concave, or domed diffusers. Available in models with 40 or 80 LED arrays, the fixture comes in 3000K, 4000K, and 5000K with a CRI of 70. Skyliner is capable of delivering a lumen range from 4,445 to 26,448 lumens, depending on the model. Each fixture is equipped with a surge protector for long-term performance. Powdercoat finishes include black, white, dark bronze, gray, and green.

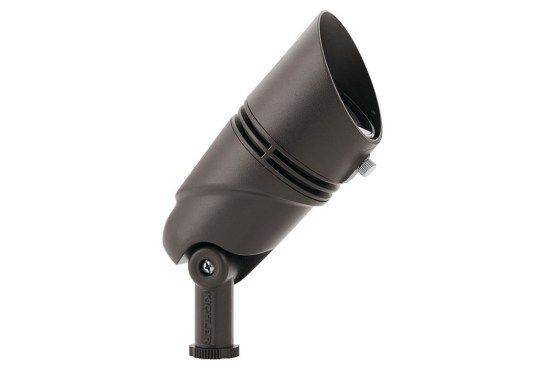

12V LED Accent Light with Variable Lumen Output (VLO), Kichler This LED accent light allows users to switch between three lumen outputs (400, 600, or 835 lumens) without the need to mechanically adjust the fixture’s setting. The 5.25W, 8.5W, or 12W luminaire comes in 2700K with a CRI of 80. Beam spread options include 15-, 35-, and 60-degrees. The IP66-listed fixture-head measures 6” long by 2.7” in diameter, and can be tilted up to 115 degrees. It also features 6,000V surge protection. Four finish options are available: textured white, textured black, texture architectural bronze, and centennial brass.

Pavilion, Kim Lighting • This “smart” bollard has an integrated NEMA 3R dual outlet receptacle enclosure, a color-changing, Bluetooth-activated RGBW accent light, and a recessed one- or two-gang receptacle outlet box. The customizable luminaire can be specified in 168 different configurations through its optics, top cap, and body. Offered in 3000K, 4000K, and 5000K with a CRI of 70, the fixture is available in 14W or 22W and can deliver up to 2,000 lumens depending on wattage. The five beam spread options include Type I, Type II, and Type III. Available in eight finishes, including black, platinum silver, and dark bronze. Custom colors are also available upon request. Pavilion is California Title 24–compliant and IP66-rated.

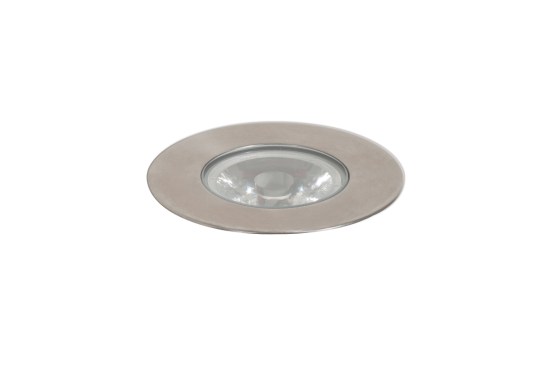

Jupiter, Targetti • Suitable for outdoor decorative and accent lighting applications, Jupiter is a family of miniature recessed LEDs. Available in 2” or 3.15” in diameter the 4W or 10W fixtures come in 3000K and 4000K with spot, flood, or wide flood beam spread options. Housed in an aluminum body, the fixtures are IP67- and Driver Over–rated. Offered in a polished stainless-steel finish.

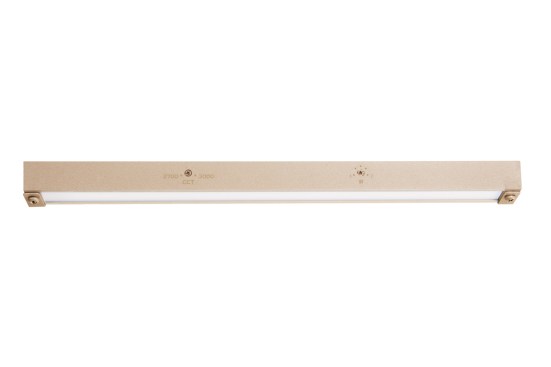

Hardscape Luminaires, WAC Landscape Lighting • Housed in a corrosion-resistant aluminum alloy, Hardscape Luminaires are suitable for a variety of outdoor applications and can be installed in a variety of positions using a stainless steel masonry bracket and rotating clips. The luminaires come in four sizes: 3” (1.4W), 6” (4.5W), 12” (7W), and 18” (8.5W); are available in 27000K and 3000K with a CRI of 90-plus; and can deliver up to 330 lumens depending on the wattage. Bronze, graphite, and sand finishes are offered.

Courtesy James Powell

Torres Lighting, Landscape FormsDesigned by Rodrigo Torres, this family of outdoor LED luminaires features area, path, wall, and catenary models. The pole-mounted version is available in single, dual (shown), or staggered configurations, with pole heights of 12', 14', 16', 20', and 25'. Poles are 5" in diameter and made of cast aluminum. The fixtures use a four-die Cree XHP-50 LED module. Photo and motion sensors can be added to the fixture head. UL-listed and compliant with California’s Title 24, RoHS, and Dark

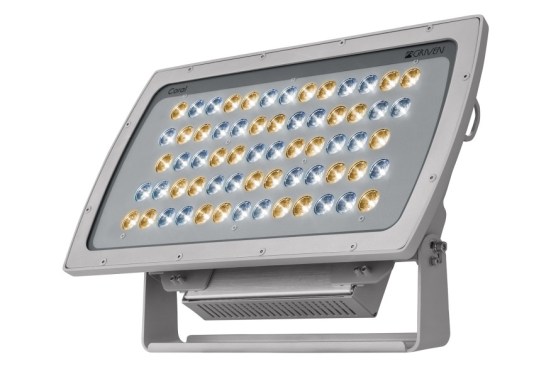

Coral, Griven USAThis LED surface-mount projector floodlight is designed to illuminate medium- to large-scale structures, such as multistory façades, bridges, and civic monuments. The luminaire uses 64 high-power LEDs in RGBW (6500K white), dynamic white (2700K to 6500K), warm white (3000K), or cool white (6300K) to provide high-end illumination performance. Seven different light distributions are available, ranging from a 7-degree spot to a 43-degree wide flood. CSA certified for wet locations and IP66 rated, control options include auto, DMX, wireless, and zero-to-10V.

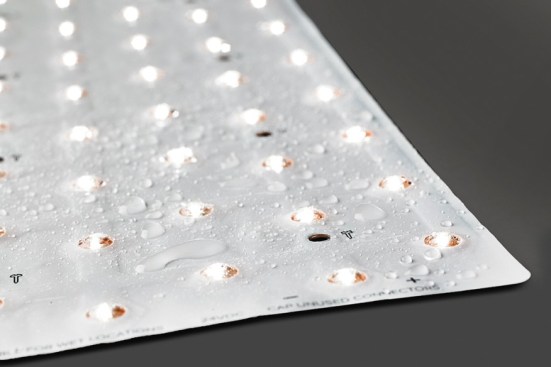

Tile Exterior, Cooledge • Suitable for outdoor applications and wet locations, all of the components in this fixture feature a minimum IP65 rating, and moisture-resistant snap connections provide toolless installation. Available in 600-lumen and 300-lumen packages per tile with a typical 2 SDCM (Standard Deviation Color Matching) color uniformity, the tiles are available in five correlated color temperatures—2700K, 3000K, 3500K, 4000K, and 5700K—with a CRI of 80. The field-configurable tiles snap
