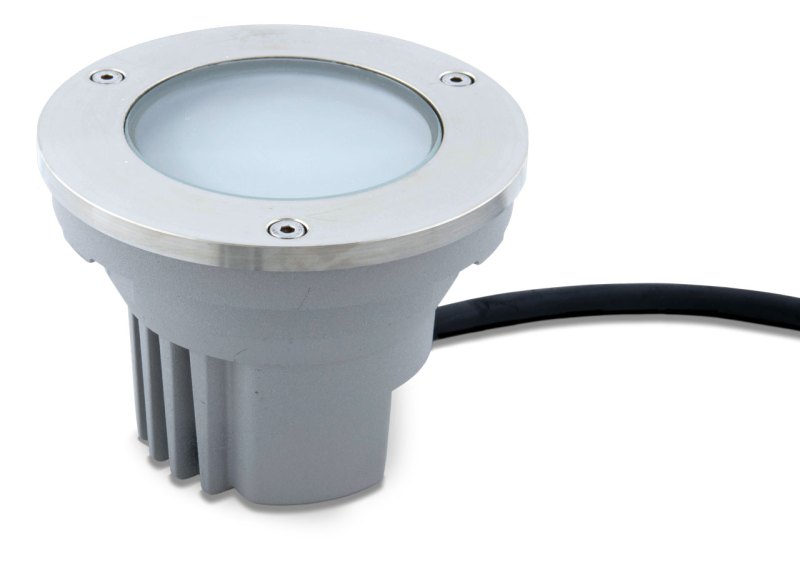

Calypso Compact, Targetti • Calypso is an in-ground luminaire suitable for low-profile installations. Available in 4W or 8W at 3000K with a CRI of 84, the compact fixture measures 4.9" in diameter and has two lens options: a 15-LED diffused wide flood (4W version) and a seven-LED 10-degree clear spot (8W version). Lens selection determines lumen output, which is either 93 or 383 lumens. IP67-rated, the luminaire is drive-over-rated for vehicles weighing up to 20 kiloNewtons (one kiloNewton is approximately 225 pounds). • targettiusa.net
Tex, Alva • This large-scale, outdoor wall sconce designed by Culver City, Calif.–based Brilliant Lighting Studio for Alva is designed for doorways, lobby entrances, or placing between windows. The direct/indirect luminaire is Title 24–compliant, IP66-rated, and capable of withstanding high-pressure washing of exterior surfaces. It measures 12" wide and is offered in three lengths: 30", 45", and 60"; three wattages: 23W, 29W, or 37W (3500K with a CRI of 90); and delivers up to 3,700 lumens depending on the wattage. Tex can be installed vertically or horizontally using a steel mounting system. The luminaire is zero-to-10V dimmable. • alvalight.com
Scoop, WAC Landscape Lighting • Part of WAC Lighting’s new family of landscape lighting offerings, this IP66-rated LED bollard is suitable for illuminating outdoor spaces such as walkways and parking areas. Available in wattage options of 5.7W, 10.5W, or 12.5W in either 2700K or 3000K with a CRI of 90, Scoop delivers up to 350 lumens depending on wattage selected. The fixture measures 30" tall by 5" in diameter, and operates with 12V, 120V, and 277V systems. Dimming options include TRIAC, ELV, and MLV, depending on voltage. • waclandscapelighting.com
Matrix, Beacon Products, Hubbell Lighting • This series of high-mount area and floodlight luminaires, suitable for illuminating large public spaces, can replace up to 1,000W high intensity discharge systems. Matrix is available in 3000K, 4000K, and 5000K with a CRI of 70, and delivers a range of 33,000 to 60,000 lumens depending on wattage. Four mounting applications are offered: upswept arm, knuckle, mast arm, and post top. The 29.7"-long by 25"-wide fixture head has five optics types. Energy savings control options include SiteSync, Energeni, and occupancy sensors. Available in eight finishes. • hubbelloutdoor.com
GWC Galleon Wall LED, McGraw-Edison, Eaton • This wall-mounted luminaire is suitable for outdoor area and site illumination. Fitted with a choice of 13 patented AccuLED Optics, the 15.7"-wide by 12"-deep fixture is available in 4000K with a minimum CRI of 70 as a standard option, as well as custom color temperature options of 3000K, 5000K, and 6000K. Eight lumen packages, ranging from 3,700 to 14,400 lumens, are offered depending on wattage and color temperature. The fixture is installed using a steel attachment that fits directly to a J-box or wall via the Galleon Wall “Hook-N-Lock” mechanism. • cooperindustries.com
Lunetta 28" Pedestrian and Area Luminaire, Amerlux • Suitable for outdoor commercial use and public spaces, this luminaire has a flared pole-top fitted with recessed LEDs around the perimeter. The 60W fixture is available in 3000K, 3500K, and 4000K and delivers 4,620 lumens. The fixture head is made of spun-aluminum and measures 28" in diameter by 26" deep, and the maximum length of the 5"-diameter pole can be 16'. Available in three thermoset polyester powdercoat finishes, Lunetta is zero-to-10V dimmable, ETL listed, and suitable for wet locations. • amerlux.com
rNook-16, Holm, Hunter Industries • Designed to illuminate commercial outdoor spaces, this recessed luminaire uses an integrated Xicato LED module and Holm’s Next Generation Corrected Cold Phosphor Technology to maintain light quality and uniform color. The 11.2"-square fixture is available in 2700K, 3000K, 3500K, and 4000K with a minimum CRI of 81, and delivers a range of 629 to 1,856 lumens. The rNook-16 has three beam spread options and also uses Holm’s ProAim technology for precise fixture-locking adjustments to prevent theft or tampering. IP65-rated, the die-cast aluminum fixture operates on 110V to 277V and is phase or zero-to-10V dimmable. • holmlighting.com
Kazu, Schréder Group • This pole-mount luminaire utilizes the company’s LensoFlex2 and ThermiX technologies—the former is a photometric engine for even light distribution, the latter for thermal management. The 20.6"-diameter by 6.3"-deep fixture head features curved cooling fins to protect from dirt and is pre-wired for installation. Available in two fixture head styles: a flat, polycarbonate protector or a symmetrical dome-like protector, Kazu can be specified in 23W or 80W in either 3000K or 4000K, and delivers between 2,000 to 7,000 lumens, depending on the wattage. Optional control solutions include photocell or Owlet. • schreder.com
