Ray and Dagmar Dolby Regeneration Medicine Building

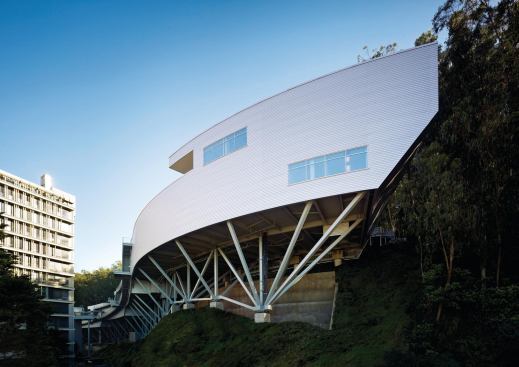

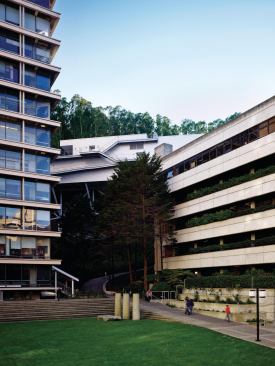

Set among eucalyptus trees and fog, the University of California at San Francisco's (UCSF) Parnassus campus clings precariously to the slope of San Francisco’s Mount Sutro. At its center is the Health Sciences core, a pair of bland 16-story buildings constructed in the early 1960s that now also act as the front door to the UCSF Medical Center’s newest laboratory: the Ray and Dagmar Dolby Regeneration Medicine Building (RMB), designed by Rafael Viñoly Architects. An elevator ride to the ninth floor of either of the old buildings and a walk down a nondescript corridor leads eventually to a gleaming steel and glass bridge—a vertiginous entry to the new labs.

TOOLBOX: Structural Supports

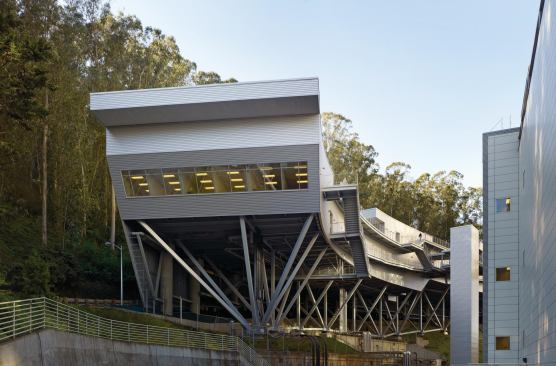

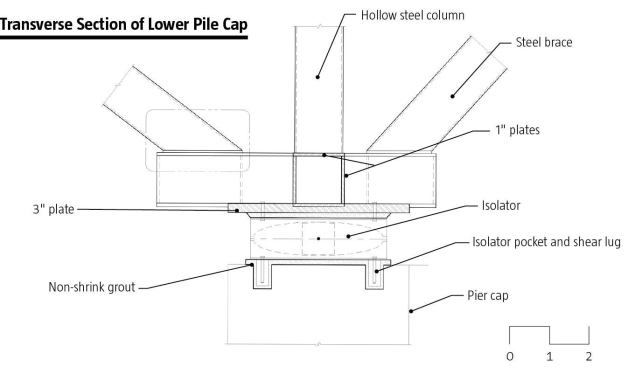

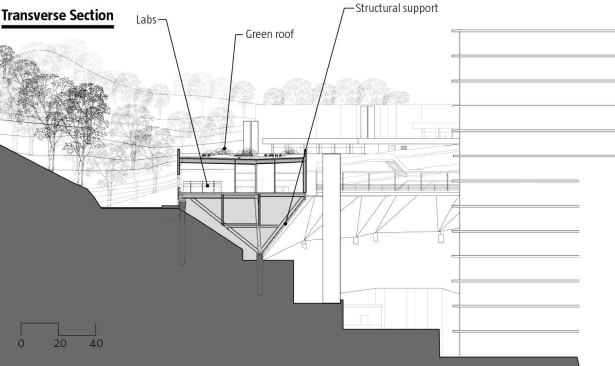

In light of the disastrous earthquake and tsunami in Japan—and the fact that Tokyo and San Francisco are in similar shake zones—it’s impossible to look at the Regeneration Medicine Building (RMB)’s dramatic structural supports and not question their seismic integrity. When Rafael Viñoly Architects conceived of a research facility precariously balanced on the nearly 45-degree slope of Mount Sutro, the San Francisco–based structural engineers Nabih Youssef Associates (NYA) developed a 600-foot-long steel space frame as a platform for the labs above. Base isolators are positioned on top of the cast-in-place concrete piers (which sink 45 to 80 feet deep into the earth) that are organized in two linear rows and act as the building’s foundation. Eight uplift restraints are located on top of piers on the uphill side, and the steel frame is supported by friction pendulum seismic isolators and held down by tension isolators. Limiting the number of supports was crucial in order to minimize impact on the site, reduce the number of required foundations, and avoid having to relocate existing site utilities.

Base isolators act essentially like ball bearings—the system is rigid in the vertical direction, and moves horizontally in response to lateral forces. In case of an earthquake, the RMB may move sideways up to 23 inches, but the friction pendulum isolators dampen and dissipate ground shaking and reduce seismic force levels.

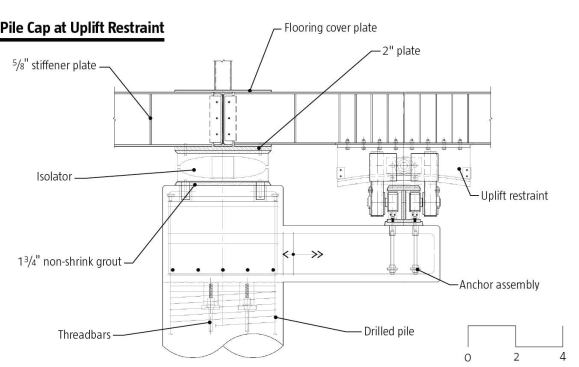

Because the building floats over the hillside, the engineers were able to forgo the costly perimeter isolation moat, generally required with this kind of system, for 95 percent of the perimeter. However, that same site condition heightens the possibility of the facility tipping over in an earthquake. To account for a 2-inch vertical lift and 4-inch “whipping” action, design/build partners Forell/Elsesser developed custom tension isolators to be used on the uphill side of the structure. The tension isolator—which accommodates the same 2-inch rise as a standard base isolator—can withstand 100 tons of uplift force; it moves 360 degrees on two opposing curved tracks with articulating rollers. Mason Walters of Forell/Elsesser conceived of and engineered these isolators, and, according to SmithGroup project manager Marianne O’Brien, AIA, created an inspired scaled mock-up of the system using wheels stolen from his daughter’s Rollerblade.

Viñoly won the commission in 2005 with an unlikely horizontal scheme. The 660-foot-long RMB stretches ribbonlike across the hillside, improbably balanced on steel space trusses and seismic base isolators. Specific criteria in the funding required the project to be fast-tracked, so a design/build team was created. The New York–based practice collaborated with DPR Construction and the local office of architect-of-record SmithGroup, a firm known for its institutional portfolio and for its forward-thinking use of integrated project delivery (IPD). According the collaborating firms, using IPD shaved anywhere from 12 to 24 months off of the project’s construction time.

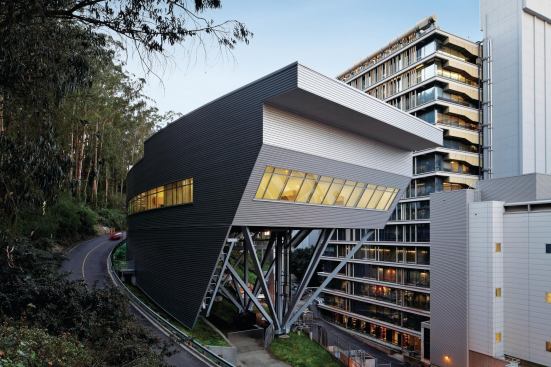

The research center is tucked behind UCSF’s hospital on a sliver of ground so steep that constructing anything on it seems like impossible folly. “It is a site that essentially doesn’t exist,” Rafael Viñoly, FAIA, says. The two tall Health Sciences buildings, several loading docks, and utility plants encroach on one side, and a winding road leading through the eucalyptus trees to the top of Mount Sutro edges the other. The location was chosen because it was the last piece of available land on the dense urban campus. But for Viñoly, the site offered some intrigue. The RMB supports the kind of human embryonic stem cell (HESC) research that is nonfederally funded and required to be clearly restricted from other research. “We started the design in 2005, under the Bush administration. At that time, California was [one of] the only states pursuing stem cell research,” Viñoly recalls. “I loved this idea of a conspiracy theory—that the building was placed there as if it was hiding behind the Parnassus campus.” As such, when viewed from Golden Gate Park, the corrugated-metal-clad research center merely peeks out from the tree line.

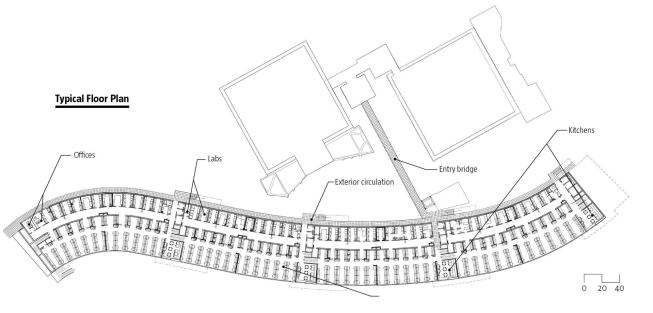

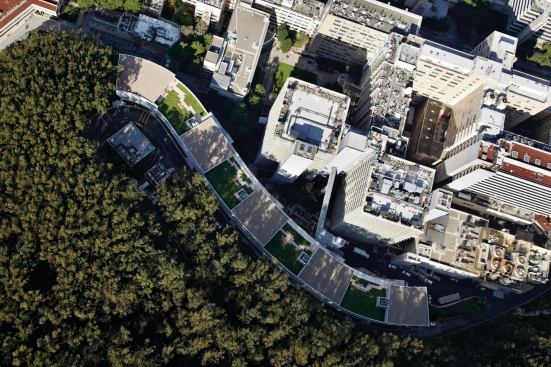

However, the facility’s form is an outgrowth of site constraints and programmatic requirement. The south façade hugs the curving topography, accounting for the sinuous floor plan. Viñoly’s experience with science buildings led him to reject a vertical scheme where research groups would stack one on top of each other. He thought that placing the laboratory on a single level would foster more communication between teams. “Biological research is a completely unique environment; there is interactivity between groups and casual lines of development between subject areas,” Viñoly says. “A successful design is measured in having contributed to an integrated environment for the scientists.”

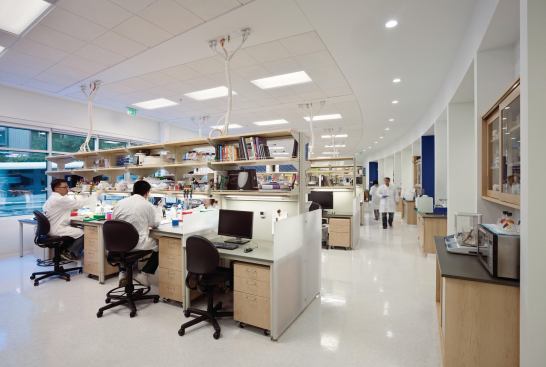

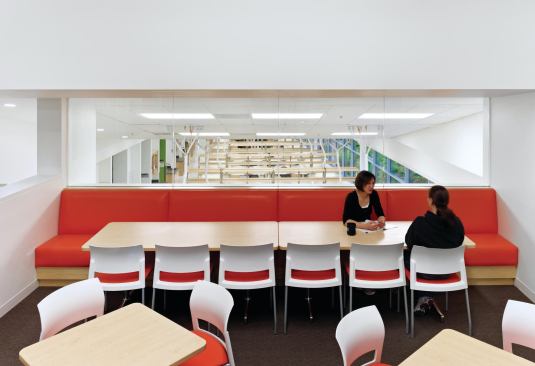

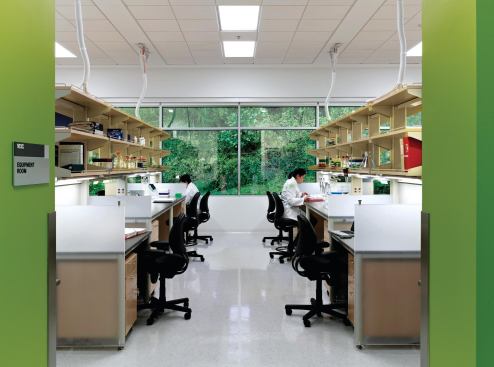

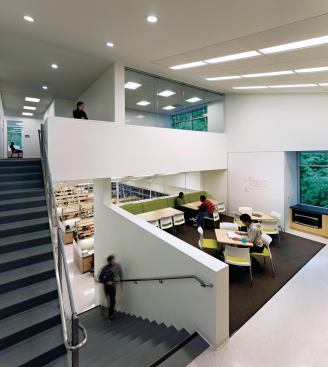

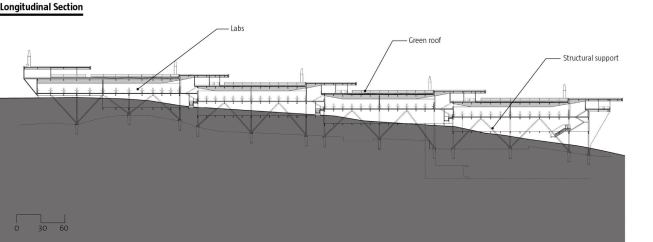

At RMB, four research areas step gently up the grade, one half-story at a time, following the road. Break areas, offices, and conference rooms occur at each level change. These are split-level moments where the various research groups can mingle and, since walls in the conference rooms and break areas are finished in erasable white board, exchange ideas. Flexible open-plan laboratories—18,367 square feet worth—are equipped with reconfigurable casework systems and quick-disconnect utilities, and complemented by another 15,539 square feet of equipment and support space. Large windows in the labs face south onto the hillside and a dense eucalyptus grove. The trees modulate direct daylight exposure, which contributed points to the building’s targeted LEED Gold certification.

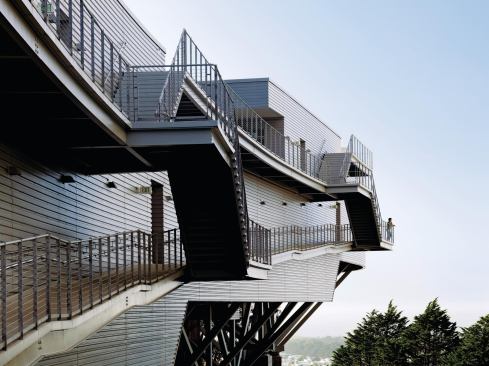

Suspended from the north façade are exterior ramps and staircases; navigating from half-level to half-level, they are the reason that there are few windows on this side of the building. Spectacular views of Golden Gate Park, downtown, and the Pacific Ocean transform the pedestrian walkways into dramatic overlooks. Steel-cable handrails set extra-high at 48-inches—6 inches above code—provide security without sacrificing openness. At the westernmost end of the building, offices and a large conference room hover over the city.

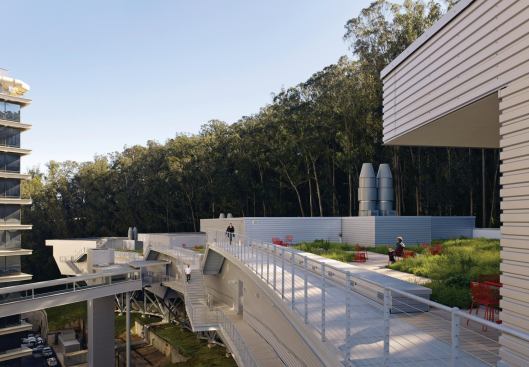

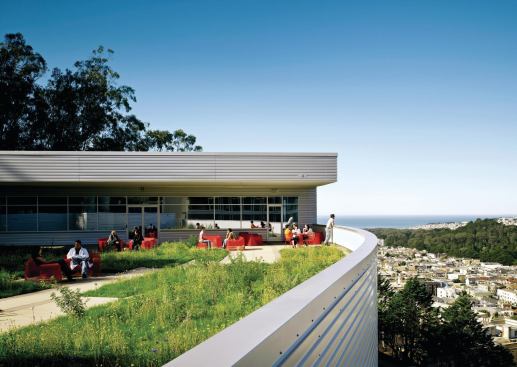

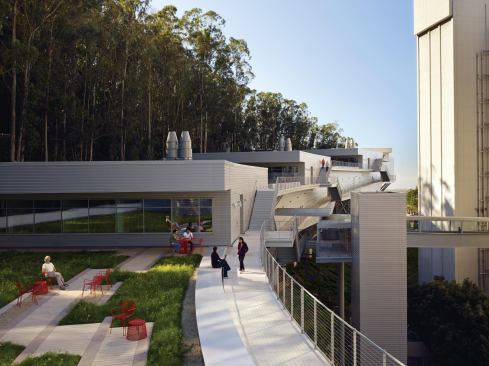

Roof terraces landscaped with native plantings top each of the laboratories. Like the exterior circulation, the gardens offer sweeping views, but according to Viñoly, they also provide more intimate gathering areas for the scientists. “There’s functional continuity between all the principal investigation areas, but in contrast, each of the roughly 6,000-square-foot gardens becomes an individualized space, where each research group can recover some level of identity,” he explains. UCSF scientists are already personalizing the terraces, which are accessible via the outdoor walkways. Humbly potted lemon trees and herbs have cropped up near tomato-red outdoor furniture. “The building is not just a machine,” Viñoly remarks. “It adds to day-to-day life.”
