For increased thermal efficiency and design freedom, an integrated building envelope system can be an excellent solution for high-performing buildings. In our following discussion with Kim Snyder, Centria product manager, she explores how and why integrating windows with insulated metal panel systems (IMPs) creates design possibilities—and healthier buildings.

Exactly what is an IMP?
All IMPs, or insulated metal panels, include a metal face and liner, usually made from steel, and a rigid foam core consisting of polyisocyanurate (PIR) or polyurethane (PUR) insulation. The panels have horizontal and vertical panel joinery that interlock. Ideally, IMPs are offered in multiple thicknesses to achieve different levels of insulation, depending on the building performance needs. Centria Formawall insulation is Red List chemical free and contains no harmful halogens for a healthier built environment.

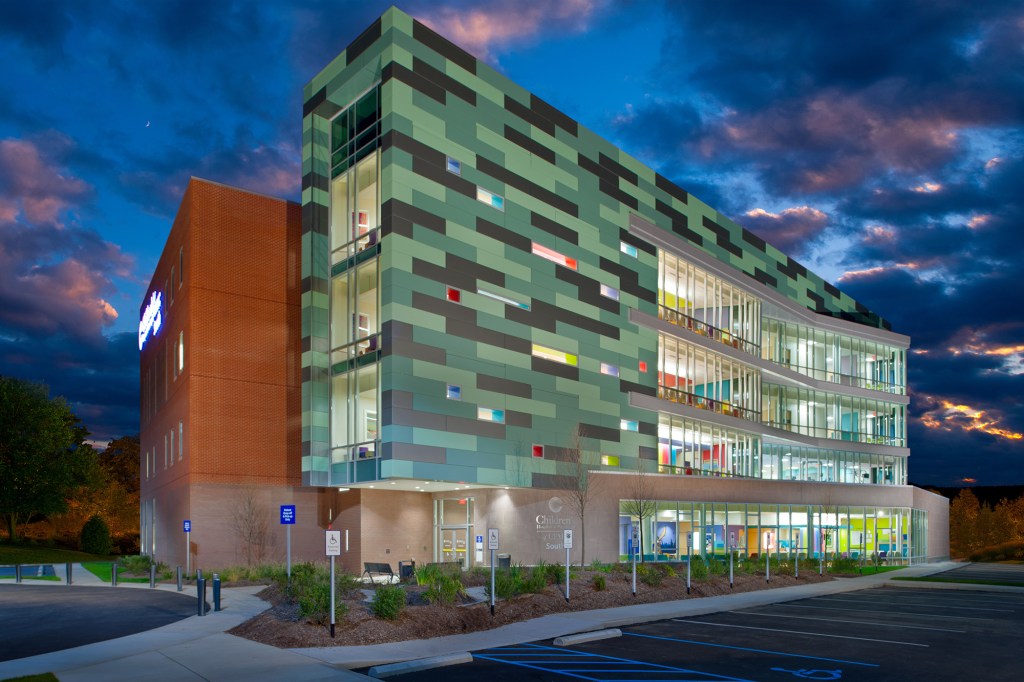

Jeff Veltman

What are some of the benefits to an advanced IMP system with integrated components?
First and foremost, this kind of system can maximize thermal and moisture protection if it is comprised of engineered, pressure-equalized joinery, concealed or redundant gaskets and sealants, and a built-in vapor barrier. Such an assembly can simplify and expedite construction in addition to offering greater aesthetic design freedom.

How do Centria Formawall and Formavue integrated windows work in tandem?
Centria Formavue windows are engineered and built exclusively as a fully integrated component of the Formawall high-performance building envelope system. Formavue windows feature aluminum framing that incorporates a complete thermal break and integral head and sill joinery that marries seamlessly with Formawall panels. This integrated design eliminates the need for time-consuming window/wall interface detailing and ensures ultimate weathertightness, maximum thermal performance, and reduced opportunity for window condensation.

What makes a system advanced?
An advanced system effectively consolidates up to six separate wall components into just one. Ideally, it will offer an air barrier, a built-in vapor barrier, robust outboard insulation, and a wide range of aesthetic options in a single, easy-to-install component. No separate or additional sheathing or extra air barrier is ever required. Formawall is an excellent example of this kind of advanced IMP system.

Additionally, an advanced system includes foamed-in-place insulation, rather than laminated—thereby creating an effective bond to steel skins, filling all voids, and producing superior panel flatness. It will feature a built-in thermal break at horizontal joints with space between the inner and outer metal skins for even greater thermal efficiency. Finally, an advanced system will have a full line of integrated components that are pre-engineered—like Formavue windows—to interface with IMP joinery and installation methodology seamlessly. These components include sunshades, louvers, and translucent daylighting systems.

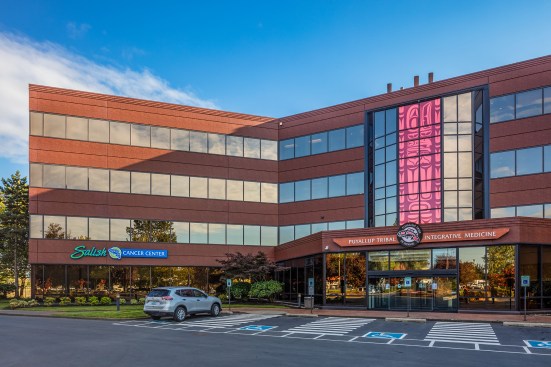

Roy Engelbrecht

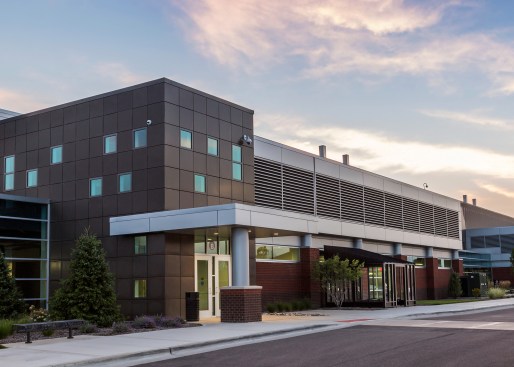

What enables IMP-window integration?
IMP-integrated windows feature extruded aluminum construction, and the joinery is engineered and fully tested to seamlessly fit with IMP joinery. When integrated, these windows, like Formavue, eliminate the need for receptor extrusions at head and sill and exposed sealants. They should have an advanced, thermally improved design that minimizes through-metal conductivity while maintaining structural integrity. They can be assembled in the field or in the factory, depending on site conditions and construction needs.

Discover more at Centria.com/Formavue.

- Kim SnyderKim Snyder, Centria product manager–insulated metal panels, oversees strategic product planning, sales strategy and market analysis for Formawall Red-list free foam, CENTRIA’s premier insulated metal panel system, as well as industrial/commercial IMP products.
