Contrast Lighting

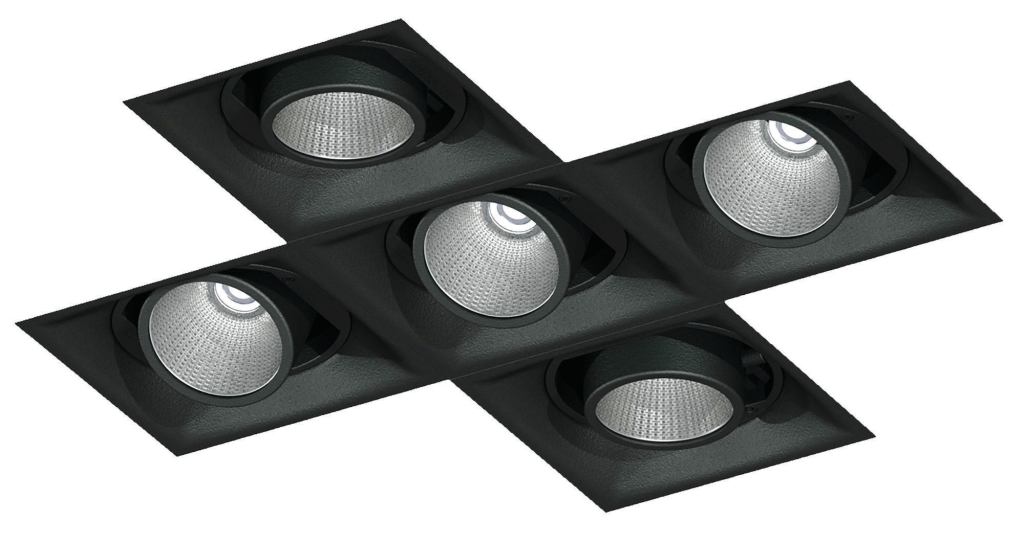

Modul-Aim, Contrast Lighting
This modular downlight can be combined in various configurations of multiples. Each luminaire is adjustable on a 360-degree swivel and can recline to 40 degrees. Once positioned, the fixture heads can be locked in place with the turn of a single screw. Available in black or white galvanized steel housings, the fixture can be specified with 20W or 40W LED modules in 2700K, 3000K, 3500K, or 4000K at a CRI of 90.

Eaton’s Cooper Lighting/Halo

HL6 Allslope, Eaton’s Cooper Lighting/Halo
This system of recessed LED downlights is designed for sloped ceiling applications from 10 degrees to 45 degrees. The luminaire provides 1,200 or 1,800 lumens from its 6" aperture housing and has three interchangeable optics and trim selections. The LED module comes in 19W and 27W in 2700K, 3000K, 3500K, or 4000K with a CRI of 90.

Edison Price Lighting

LED CLW DL/4, Edison Price Lighting
This 4" aperture downlight is 6" deep with a reflector that provides a shielding angle of 40 degrees. The fixture features an integral plastic shield that suits it for use in food-service areas and other applications requiring protection from lamp failure. Available in 2700K, 3000K, 3500K, or 4000K, the fixture provides either 850, 1,250, or 2,000 lumens. Dimmable down to 5% via zero-to-10V, incandescent, or electronic-low-voltage controls.

Hubbell Lighting/Kurt Versen

Very Narrow Beam Directional, Hubbell Lighting/Kurt Versen
This 8-degree LED point-source downlight provides precise directional accent illumination of more than 17,000 candelas without peripheral spill. Rotatable 360 degrees and vertically adjustable to 35 degrees, the 24W fixture comes standard in 3000K with a CRI of 80. Also available in 2700K and 4000K. Zero-to-10V dimmable down to 10%.

Hubbell Lighting/Progress Lighting

P8022, Hubbell Lighting/Progress Lighting
This 17W LED downlight is designed for use in flush-mount and 4", 5", and 6" recessed applications in residential and commercial spaces. Available in 3000K with a CRI of 90-plus, the fixture provides 1,032 lumens from a 120V power source that eliminates the need for an LED driver. It measures 7.25" in diameter.

Intense Lighting

MX Recessed Multiples, Intense Lighting
These LED multiples come in one-, two-, three-, and four-lamp configurations in a 10"-square recessed, semi-recessed, trimmed, or trimless housing. Each lamp has a 4" aperture and its self-contained assembly allows for plug-and-play installation. With a 12-degree spot, a 24-degree narrow flood, and a 36-degree flood, the fixtures are lamped with 14W LED modules. Available in 2700K, 3000K, 3500K, or 4100K at a CRI of 82 as well as 2700K or 3000K at a CRI of 92.

Jesco Lighting

RLR-5612-JB LED Recessed Downlight, Jesco Lighting
This shallow recessed downlight is suitable for use in contemporary and transitional interior spaces. At 7-1/4" square and 3-7/8" deep, the 12.8W luminaire is available in 2700K, 3000K, or 4000K. With standard 120V input wires, the fixtures can be daisy chained. TRIAC and electronic-low-voltage dimmable.

Juno Lighting Group

Hyperbolic LED Trims, Juno Lighting Group
Juno Lighting Group’s Hyperbolic LED Trims now work with the company’s 4", 5", and 6" LED luminaires—which provide either 600, 900, or 1,400 lumens—for low-brightness ceilings with reduced glare. The company says it changed the shape of its reflector from a cone to a hyperbola to take advantage of LED sources’ directional nature in order to spread light along the work plane. For use in residential and light-commercial applications.

Lucifer Lighting

Fraxion MicroFlange and Trimless, Lucifer Lighting
This downlight series offers slim, trim flanges with increased coverage for cut-outs. With a 40-degree centerbeam tilt and 361-degree internal rotation, the fixtures can be aimed and locked from below and have no visible fasteners. The LED module comes in 700-, 1,000-, and 1,300-lumen packages with a CRI of 80-plus, and in 500-, 700-, and 1,000-lumen packages with a CRI of 95-plus. Standard zero-to-10V and TRIAC dimmable to 10%.


LRD3, LumenOptix
LumenOptix is growing its family of retrofit downlights with this series of 15W to 95W commercial LED fixtures designed to replace 250W and 500W quartz-halogen and 250W and 400W metal halide downlights. Lumen packages from 1,000 to 8,000 lumens are available. Designed for use in spaces with ceiling heights up to 50', the open-architecture platform comes with more than 40 LED module options, optics, finishes, and aperture sizes.


Lumenaplha Downlights, Lumenpulse
This family of high-performance LED downlights is an alternative to halogen and metal halide fixtures in commercial, residential, retail, and hospitality spaces. Available in 2700K, 3000K, 3500K, or 4500K and delivering up to 3,000 lumens, the downlights have a CRI of 80-plus or 95-plus. Beam angles of 20, 40, and 60 degrees are available. The series includes single and multiple (shown) configurations.


Adjustable LED Downlight Retrofits, MaxLite
This line of LED retrofit downlights fits standard 5" and 6" recessed cans. The lens swivels to 355 degrees and tilts up to 30 degrees vertically. Available in 2700K, 3000K, or 4100K, the 10W LED fixture provides 875 lumens. Suitable for use indoors and in damp locations.

Modular Lighting Instruments

Mini-Ritm, Modular Lighting Instruments
This 4-3/4"-square LED downlight has a gimbal system that lets designers position the light source directly. For use in streamlined and industrial-chic environments, the fixture is offered in a recessed or a surface-mounted aluminum housing. It connects to a standard 120V power supply and comes with a 50W MR16 lamp.

Specialty Lighting Industries

Graffiti, Specialty Lighting Industries
This versatile line of LED downlights includes round/flanged, round/flangeless, square/flanged, and square flangeless profiles. Suitable for high-end commercial and hospitality spaces, the fixtures are available with three light-source options—including the company’s incandescent-style dimmable Ambient Dim—from 2700K to 4000K with a CRI of 80-plus or 95.

BeveLED Flat, USAI Lighting
At 2-3/4" deep, the BeveLED Flat offers the thinnest LED housing on the market, according to the company, suiting it for integration with ductwork and other building infrastructure. In round and square profiles, the fixture accepts 12W, 16W, 24W, and 33W LED modules and provides between 800 and 2,350 lumens at a CRI of either 80-plus or 90-plus.

See more products from the 2015 Products Issue here.
